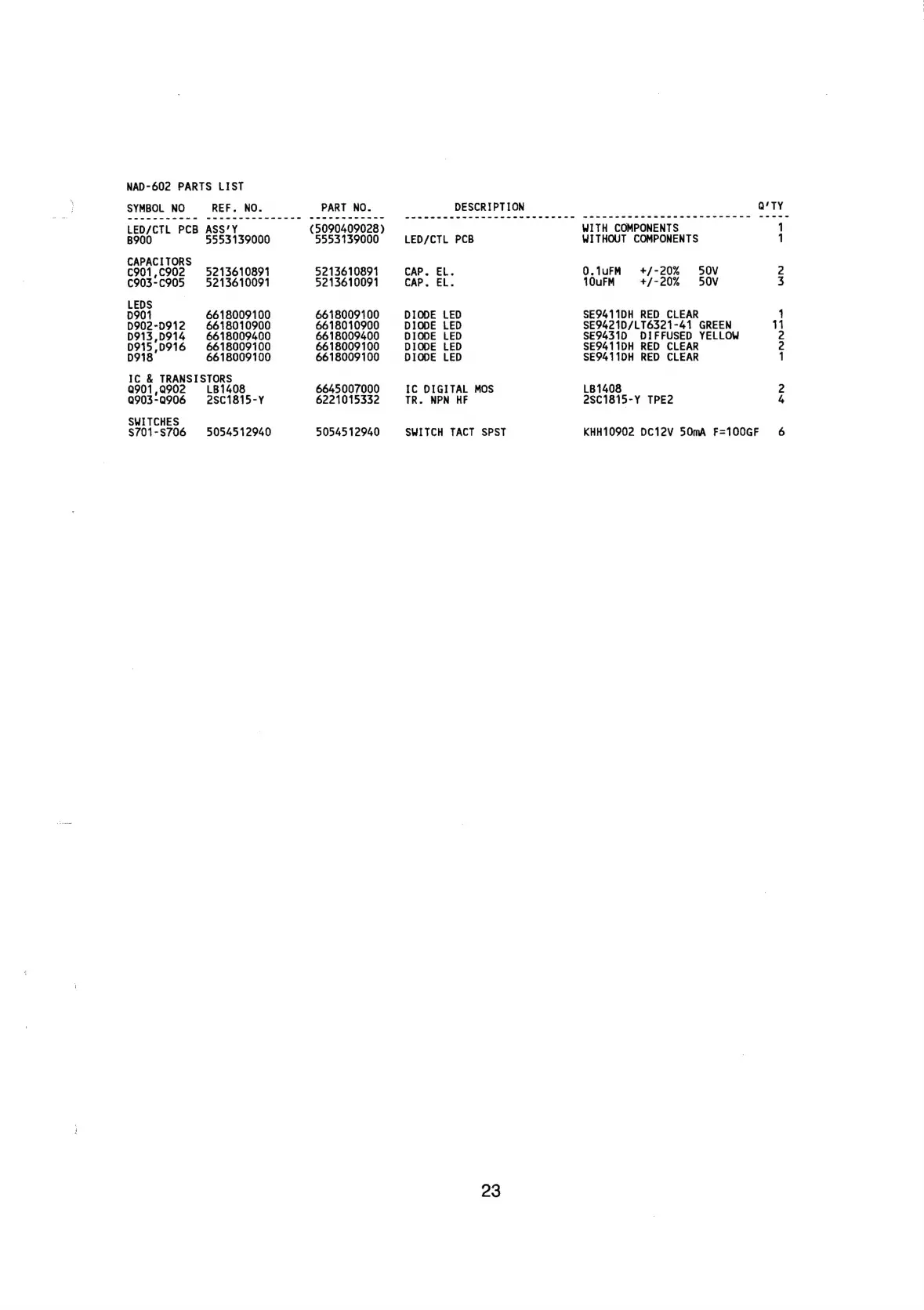

NAD-602 PARTS LIST
SYMBOL NO __ REF. NO. PART NO. DESCRIPTION QTY
LED/CTL PCB ASS'Y (5090409028) WITH COMPONENTS 1
B900 5553139000 5553139000. =LED/CTL PCB WITHOUT COMPONENTS 1
CAPACITORS
C901,C902 5213610891 5213610891 CAP. EL. O.1luFM +/-20% SOV 2
€903-C905 5213610091 5213610091 CAP. EL. 10uFM =: +/-20% += 50V 3
LEDS
D901 6618009100 6618009100 DIODE LED SE9411DH RED CLEAR ‘
0902-D912 6618010900 6618010900 DIODE LED SE9421D/LT6321-41 GREEN 11
D913,D914 6618009400 6618009400 DIODE LED SE9431D DIFFUSED YELLOW 2
D915.D916 6618009100 6618009100 DIODE LED SE9411DH RED CLEAR 2
D918 6618009100 6618009100 DIODE LED SE9411DH RED CLEAR 1
IC & TRANSISTORS
Q901,Q902 LB1408 6645007000 IC DIGITAL MOS LB1408 2
a903-a906 2SC1815-Y 6221015332 TR. NPN HF 28C1815-Y TPE2 4
SWITCHES
§701-S706 5054512940 5054512940 § SWITCH TACT SPST KHH10902 DC12V 50mA F=100GF 6
