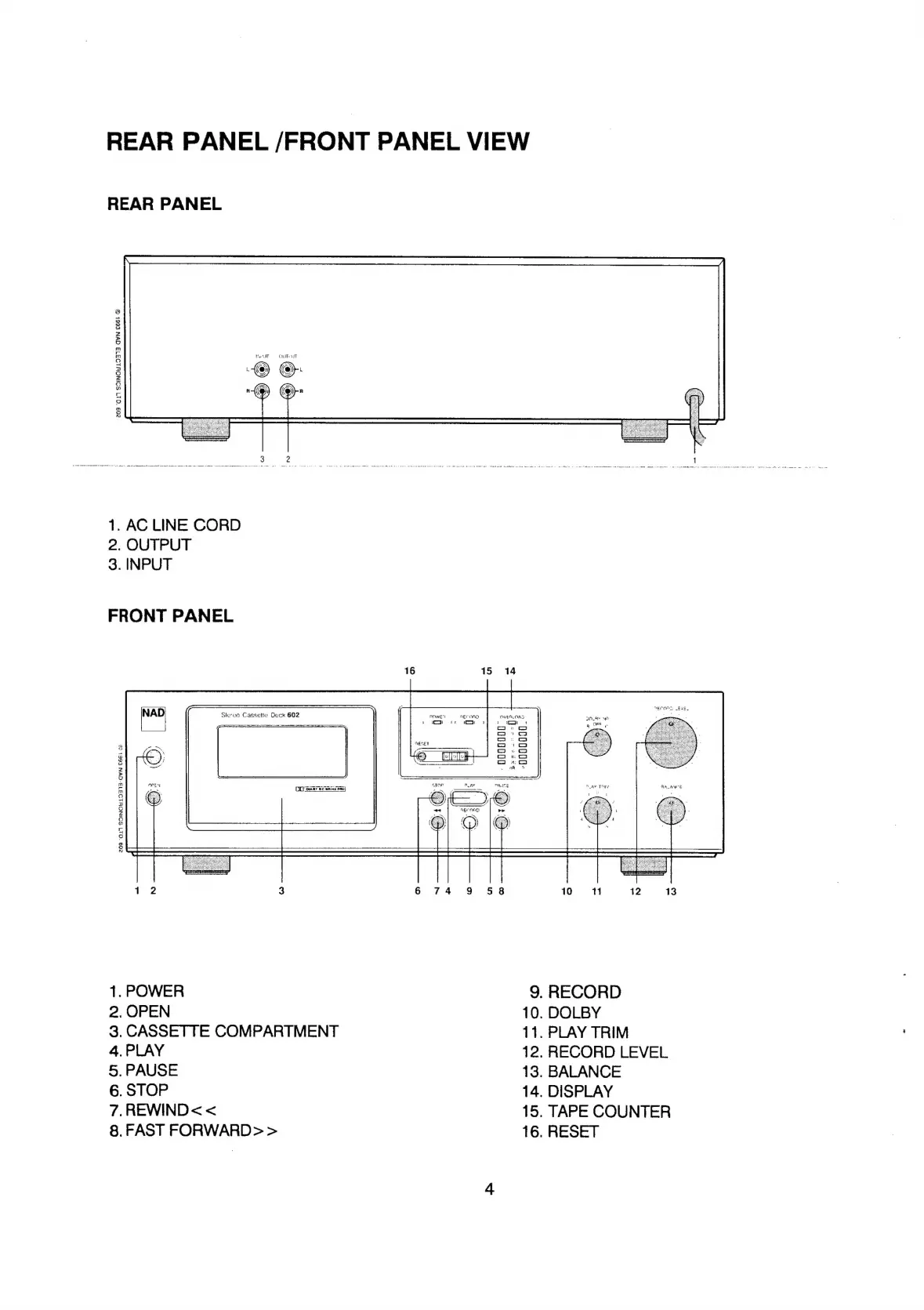

REAR PANEL /FRONT PANEL VIEW
REAR PANEL
209 “O17 SOINOYU1L9313 ON C66! @
1. AC LINE CORD
2. OUTPUT
3. INPUT
FRONT PANEL
Sle-co Cassette Deck 602
209 “Of7 SOINOH 1335713: OYN C661 &
1. POWER 9. RECORD
2. OPEN 10. DOLBY
3. CASSETTE COMPARTMENT 11. PLAY TRIM
4,PLAY 12. RECORD LEVEL
5.PAUSE 13. BALANCE
6. STOP 14. DISPLAY
7. REWIND<< 15. TAPE COUNTER
8. FAST FORWARD> > 16. RESET
