NAD 613 - TAPE MECHANISM-EXPLODED VIEW; TAPE MECHANISM-PARTS LIST

te)
A
B
Cc
D
E
F
G

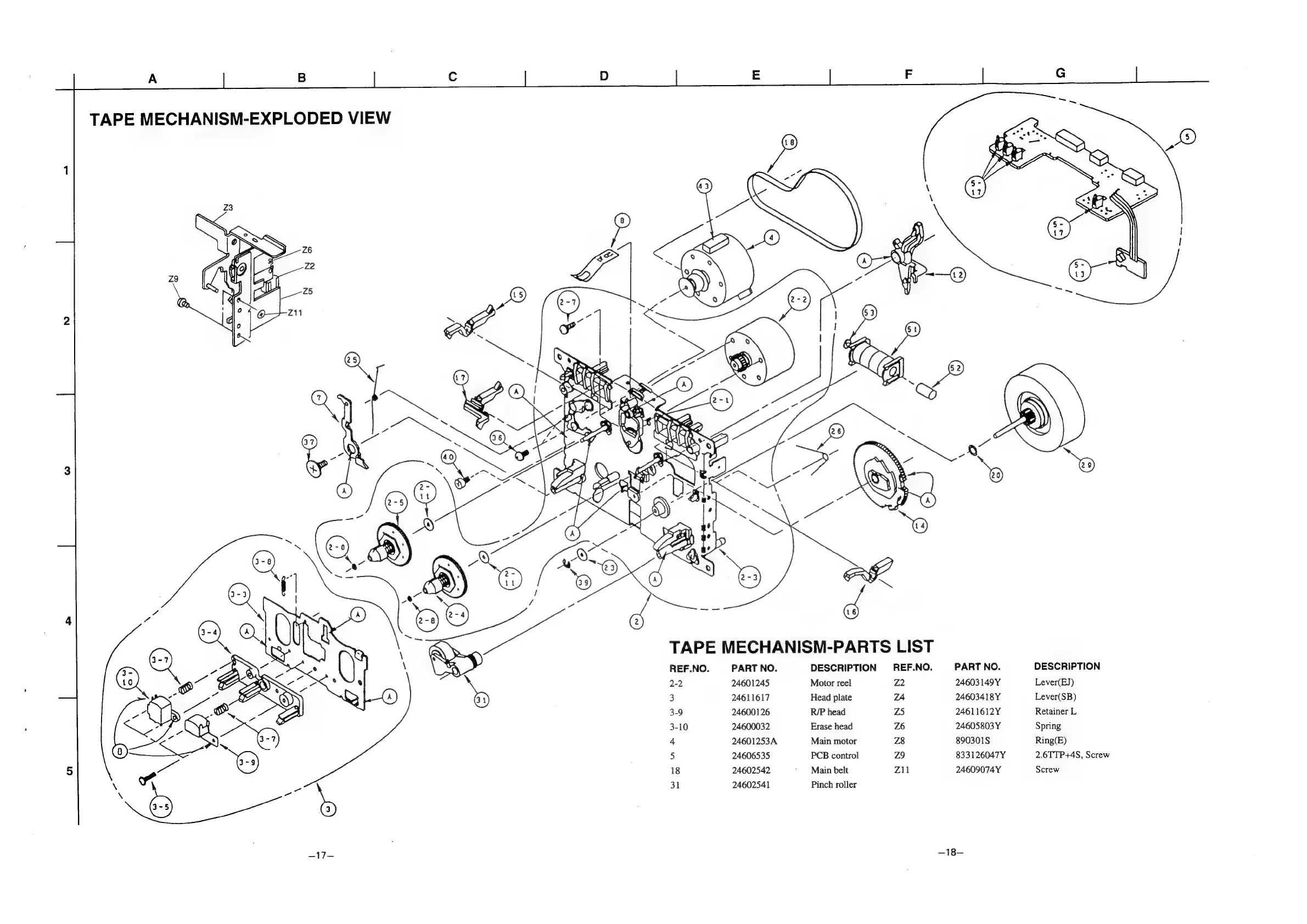

TAPE MECHANISM-EXPLODED VIEW
TAPE MECHANISM-PARTS LIST
REF.NO.
PART
NO.
DESCRIPTION
REF.NO.
PART
NO.
DESCRIPTION
2-2
24601245
Motor
reel
Z2
24603
149Y
Lever(EJ)
3 24611617 Head plate ZA 24603418Y Lever(SB)
3-9 24600126 R/P head ZS 24611612Y Retainer L
3-10 24600032 Erase head Z6 24605803 Y Spring
4 24601253A Main motor Z8 890301S Ring(E)
5 24606535 PCB control Z9 833126047Y 2.6TTP+4S, Screw
18 24602542 ‘Main belt Z11 24609074Y Screw
31 24602541 Pinch roller
—17—
13
