IDENTIFICATION OF CONTROLS
Chapter 1 Introduction

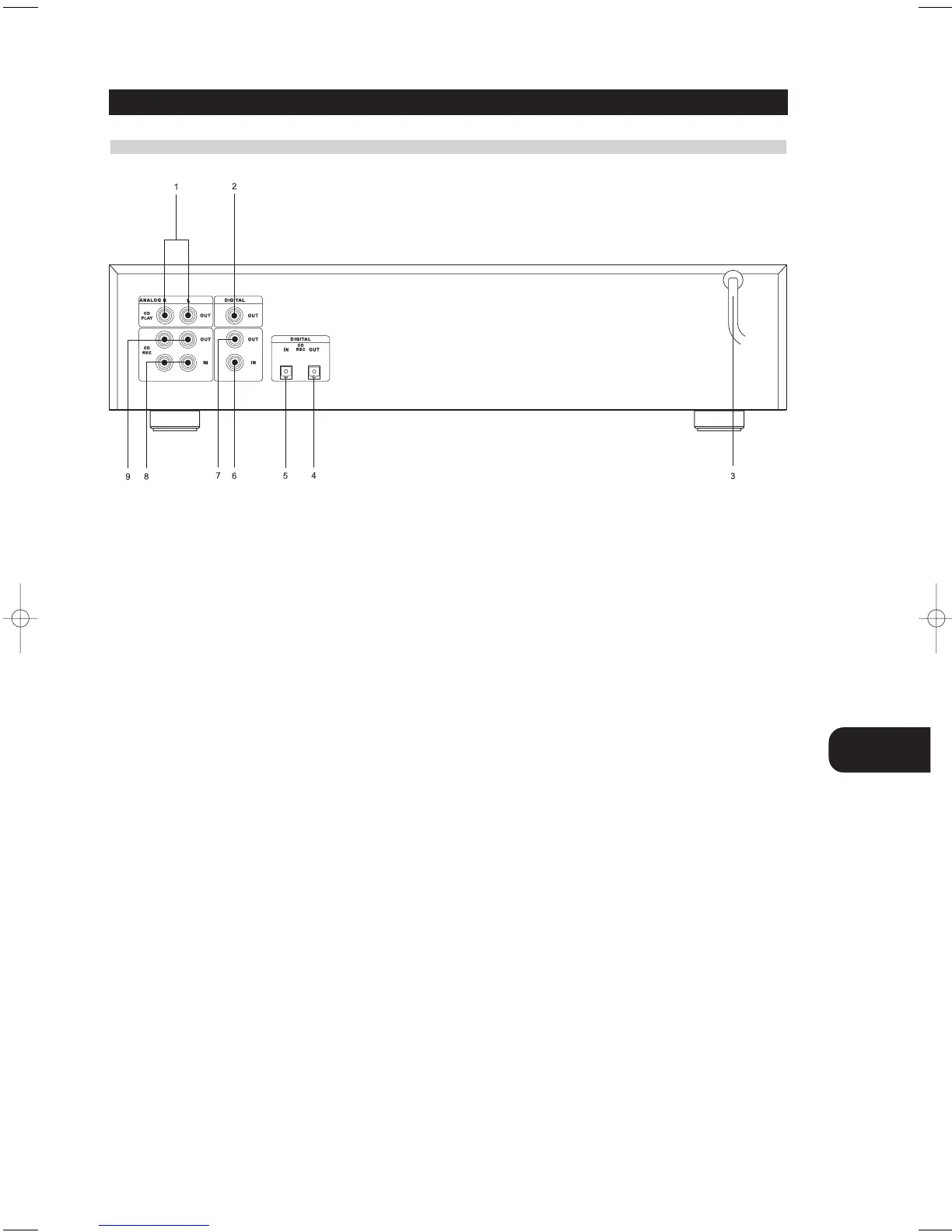

REAR PANEL
1 ANALOG CD PLAY OUT These jacks carry the analog audio output
signal from the play deck.
2 COAXIAL CD PLAY OUT This jack carries the digital audio output
signal from the play deck.
3 AC power cord Connect this plug to an AC outlet.
4 OPTICAL CD REC DIGITAL OUT This jack carries the digital audio
output signal from the record deck.
5 OPTICAL CD REC DIGITAL IN This jack accepts the digital audio
input signal from a compatible digital audio product.
6 COAXIAL CD REC IN This jack accepts the digital audio input signal
from a compatible digital audio product.
7 COAXIAL CD REC OUT This jack carries the digital audio output
signal from the record deck.
8 ANALOG CD REC IN These jacks accept the analog signals that are
used for CD recordings.
9 ANALOG CD REC OUT These jacks carry the analog audio output
signal from the record deck.
