3-7
B
NO NO
NO
NO
NO NO
NO
YES YES
YES
YES
YESYES
YES

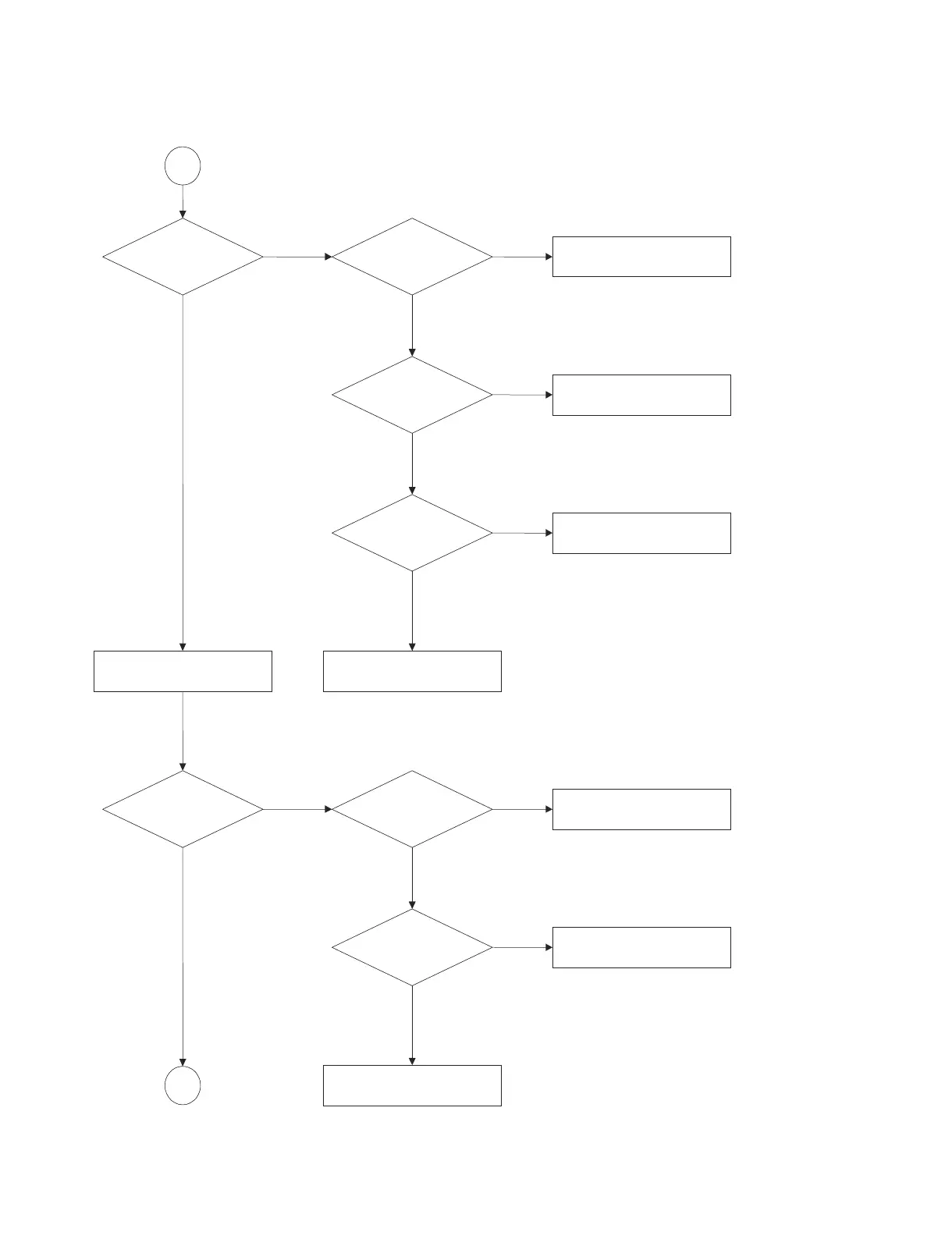

Does
the SLED move
to inner side when it is at
outter position?
Motor Driver
XFTSMUTE
Pin is High?
Check the connection line of
XFTSMUTE signal.
Is SLED DC Level lower
than 1.65V?
Check the related circuit of
SLED.
SL+ and SL- output
properly?
Check the amp circuit on motor
driver.
Check the cable connection with
MECHA.
Do not put in disc and tray
close.
C
Optical Lens has
movements for searching
Focus?
Proper FSCON outputs
to motor driver?
Check FSCON connection on
CXD1885Q and motor dirver.
Proper F+ & F- outputs?
Check the amp circuit on motor
dirver.
Check cable connect on with
pick-up head.
To Next Page
