SCAN and IR automatically for the open channel. The IR INDICATOR will flash
for 2 seconds. If the IR data download is successful, the receiver’s RF (8) and
A/B INDICATORS (9) will also be on, indicating channel transfer is complete.
See also section “6. Selecting Group/Channel, IR Programming and
Simultaneous Multichannel Operation”
5

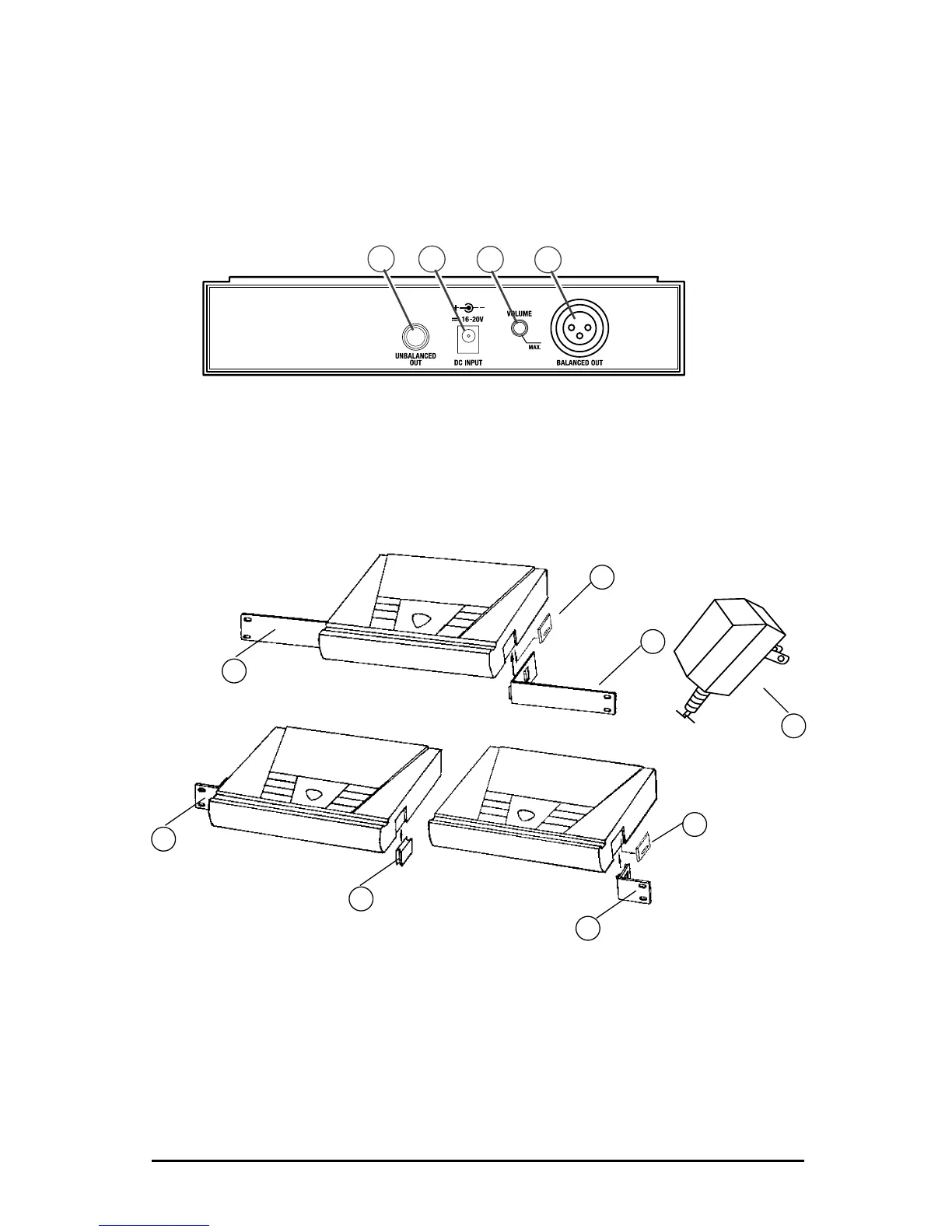

19. UNBALANCED LINE OUT ¼” JACK 
with Volume control
20. DC INPUT JACK
(DC22VDC/400mA)
21. VOLUME CONTROL Selects desired output volume level for the Unbalanced
Line Out
22. BALANCED MIC OUT XLR JACK
23. DC POWER SUPPLY ADAPTER 120VAC/22VDC/400mA
24. SIDE MOUNT CLIP removes to leave space for optional rack ears
25. ERM-12 SINGLE RACK KIT optional rack ears for single receiver rack
mounting
26. EJC-3 JOINING CLIP
side-by-side for dual rack mounting
27. ERM-22 DUAL RACK KIT optional rack ears for rack mounting two
receivers side by side

19
20
21
22
25
24
25
23
24
27
26
27
