TY1－3A 10／18

Rev.

5. PRINCIPLE OF OPERATION

The Bourdon tube is displaced of "A" due to the pressure introduced through the

Socket.

This displacement is transmitted to the Movement (scaling mechanism) via the rod, and

is scaled to turn the pointer to indicate pressure.

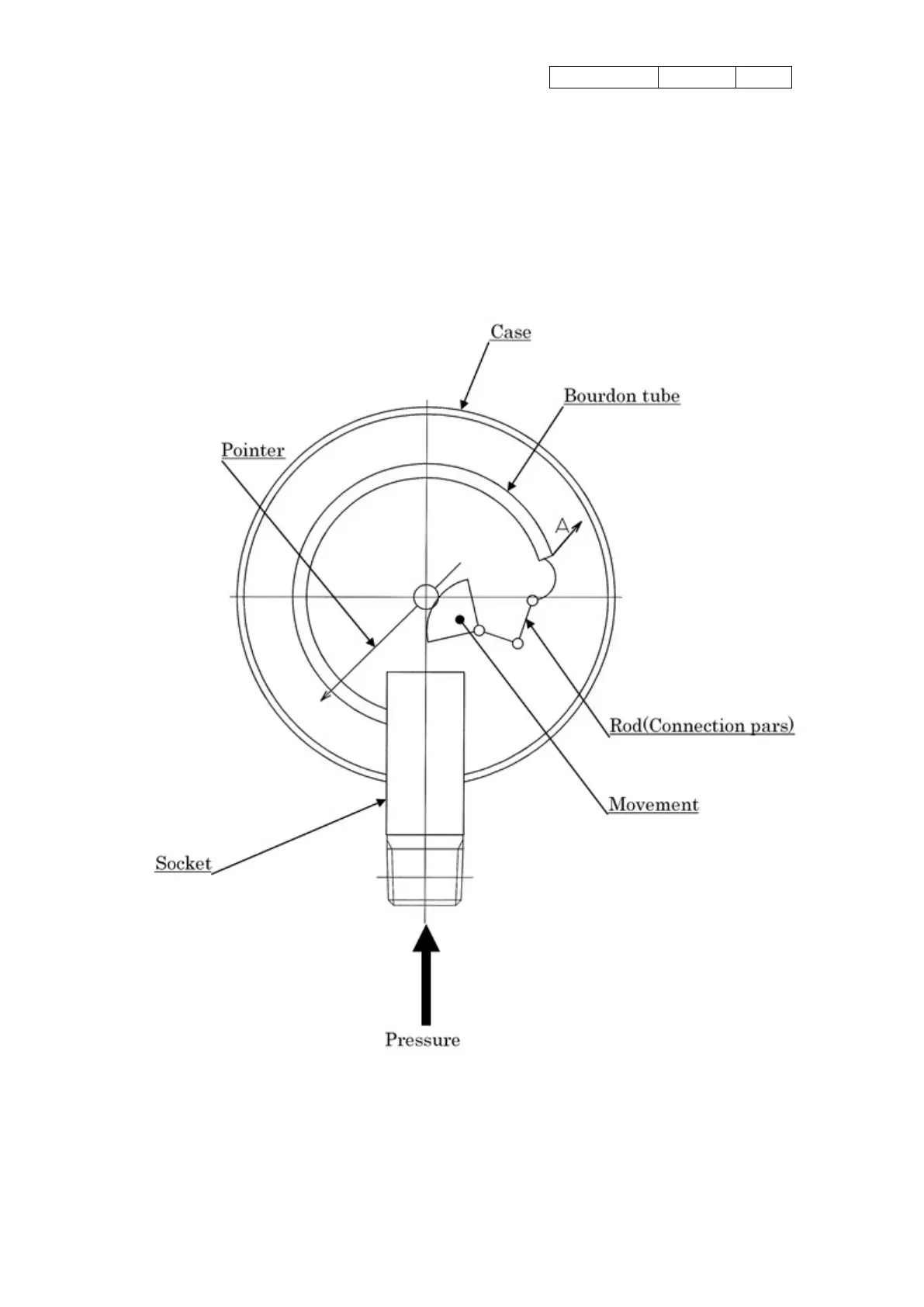

Figure.6-1 Principle of operation
