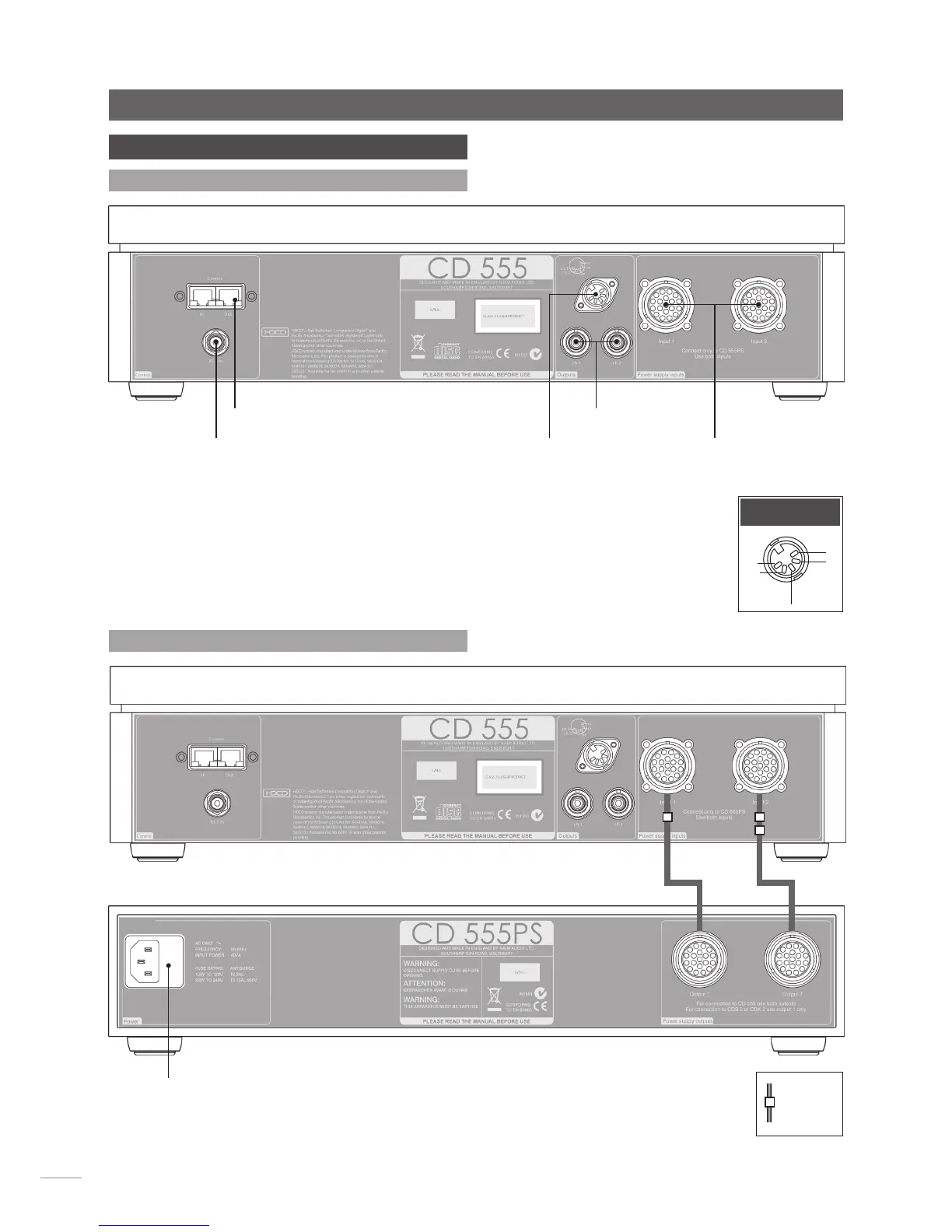

NAIM CD5 XS - 5 CD 555 Connections; 5.1 Rear Panel; 5.2 CD 555 Connected to CD 555 PS

E4
RC5 input
Comms interface
DIN output
RCA phono out-
puts left (ch1) and
right (ch2)
CD 555PS Power
Supply inputs
mains input
and fuse
CD Burndy
Cable 1
CD Burndy
Cable 2
Note: RCA phono and DIN output sockets should not be
connected simultaneously.
Note: The RC5 Input is intended to accept external control
signals for multi-room applications. Contact your dealer or
Naim Audio directly for further information.
Note: The optional RJ45 socket Comms Interface
can provide external control of the player in custom
installations. Contact your dealer or Naim Audio directly
for further information.
CD 555
5 CD 555 Connections
5.1 Rear Panel
5.2 CD 555 Connected to CD 555PS
Cable
direction
marker
ch1
-ve
nc
nc
ch2
CD 555
DIN Output
Note: Two different Burndy cables are required to connect
the CD 555 to the CD 555PS. Cable 1, identified by a
single band on its direction marker, should be used with
Sockets 1, and Cable 2, identified by a double band on its
direction marker, should be used with Sockets 2.
