NAIM CDS - CDX Player Wiring and Power Supply

11
previous next stop play
pause
time
repeat
program

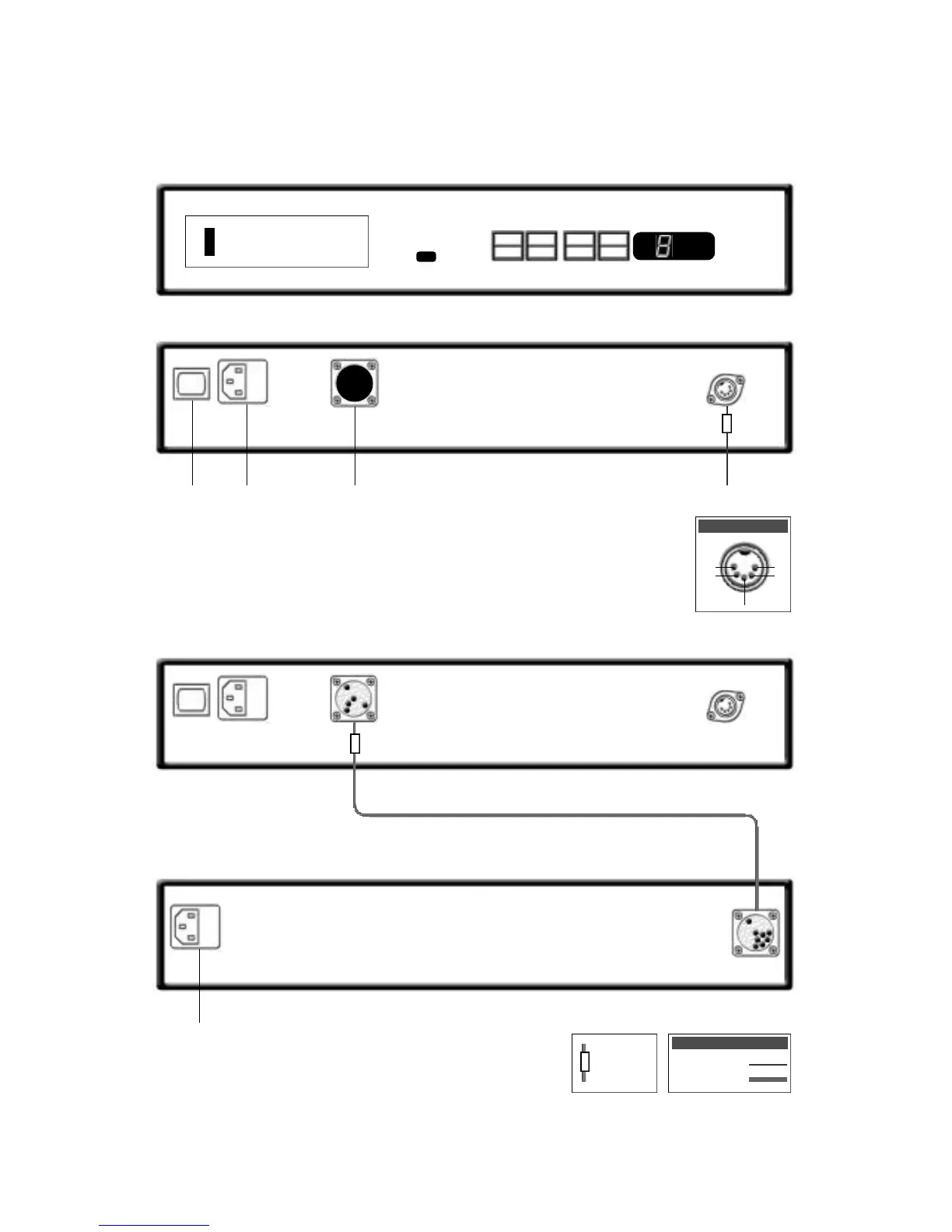

Connection to optional xps power supply
(for improved performance)
mains input
CDX Player
cable
direction
marker
5 to 5 pin DIN
11 to 11 pin Burndy
to preamplifiermains inputpower link plug fitted
link plug removed
ch1
nc
nc
-ve
ch2
CDX output
Interconnect Cables
NB - when using the XPS the mains
lead to the CDX must be disconnected
