NAIM CDX - CDX Player Connections

11
previous next stop play
pause
time
repeat
program

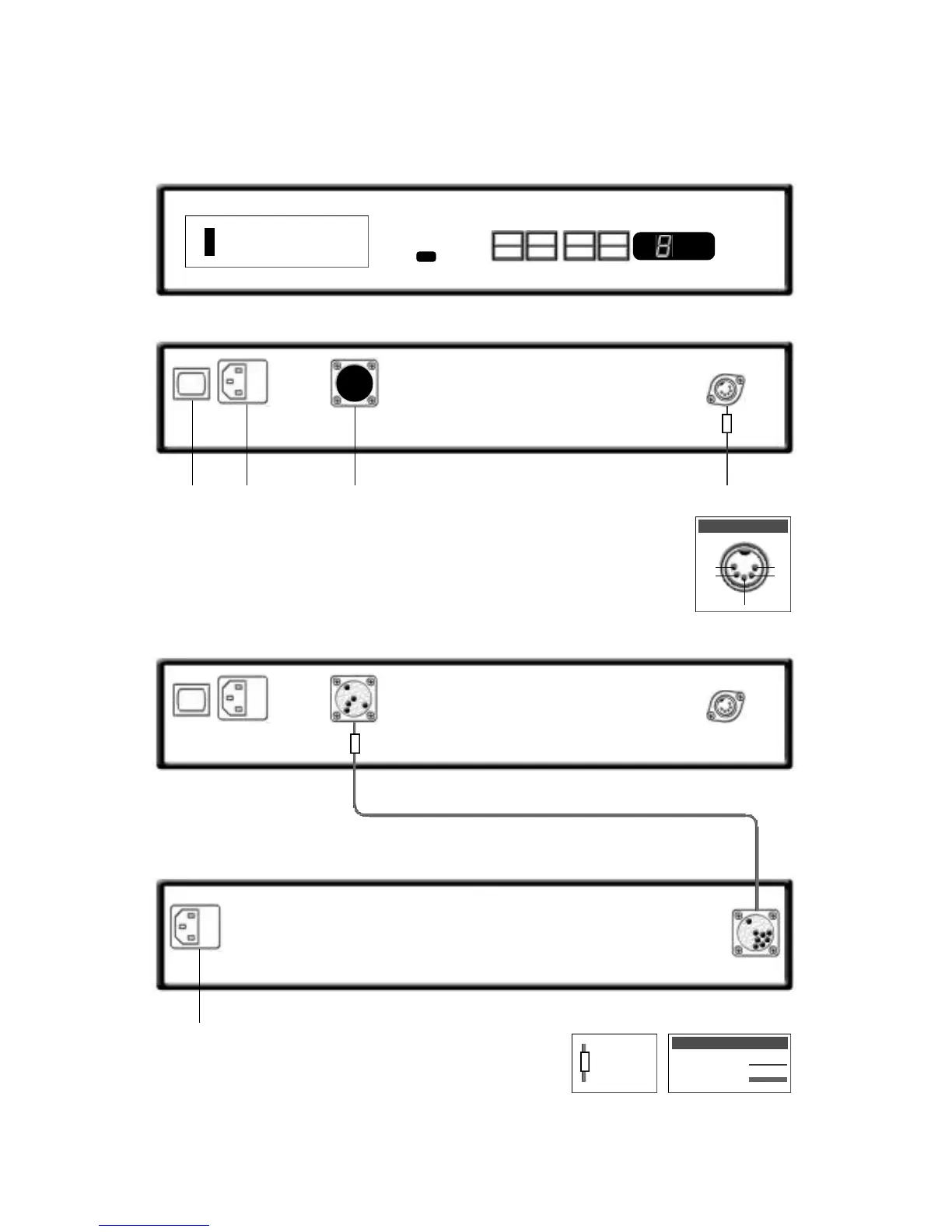

Connection to optional xps power supply
(for improved performance)
mains input
CDX Player
cable
direction
marker
5 to 5 pin DIN
11 to 11 pin Burndy
to preamplifiermains inputpower link plug fitted
link plug removed
ch1
nc
nc
-ve
ch2
CDX output
Interconnect Cables
NB - when using the XPS the mains
lead to the CDX must be disconnected
