CD5 Player
to preamplifier
mains inputpower
link plug removed
mains inputpower
to preamplifier
mains inputpower
link plug fitted
ch1
nc
nc
-ve
ch2
CD5 output
cable
direction
marker
180˚ 5 to5 pin
240˚ 5 to 5 pin DIN
Interconnect Cables

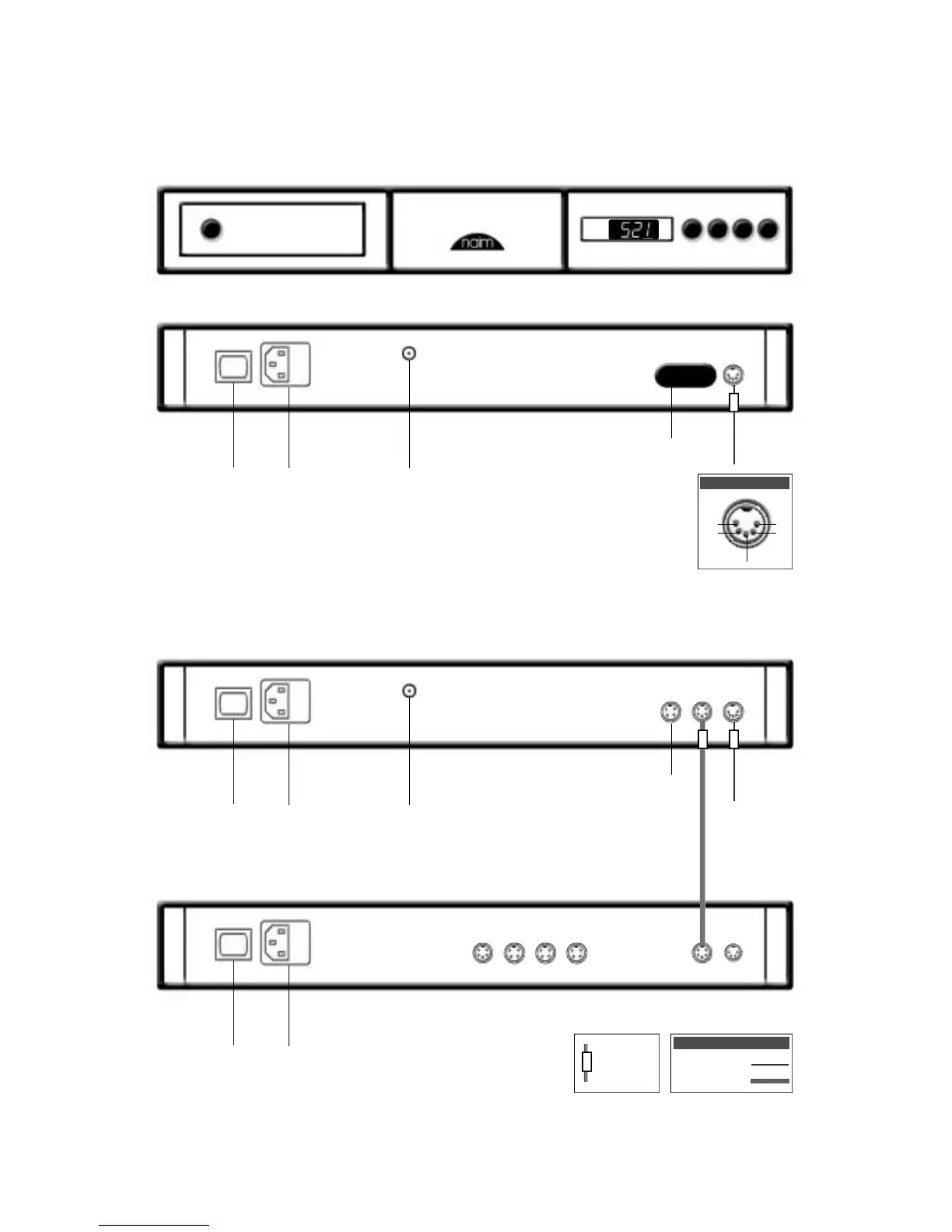

cd5 connection to flatcap 2 power supply
pause
time
repeat
program
•
•
•
•
previous next stop play
flatcap 2 power supply
signal
out D
please note
The RC5 input fitted to cd5 players manufactured after March 2001 is designed to accept external
control signals for multi-room applications. Contact your dealer for further information on its use.
The cd5 features various technologies to reduce microphonic effects, in particular a compliant
mounting for the main circuit boards and the din sockets on the rear. Some movement of the board
and sockets when connecting/disconnecting is normal.
RC5 input
RC5 input
