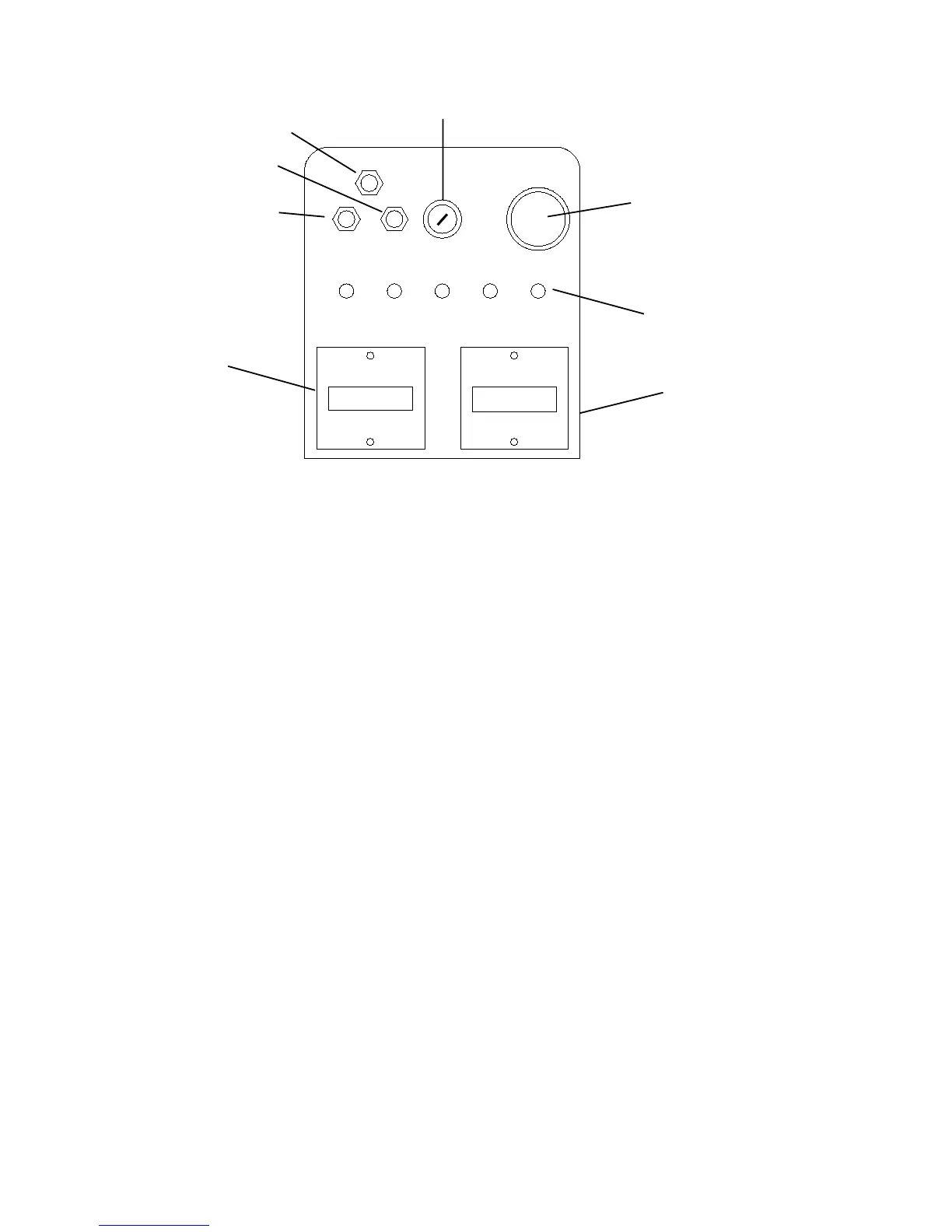

Hopper Fuse (750ma)
Dispense Counter
Coin Counter
5
Service LEDs
Volume Control
Hopper Switch
Service switch
Test
Switch
12345
5-2. Volume Control
The volume control is fitted to the service bracket located inside the coin door.
5-3. Service Switch
Pressing the service switch establishes a game credit without operating the coin
counter.
5-4. Hopper Switch
If the hopper switch is pressed while the machine is in stand-by, the hopper will
turn and a capsule dispensed.
5-5. Test Switch
There are seven test steps. The steps are advanced each time the test switch is pressed.
Test 1 Mouth Motor Test
The mouth motor runs and count lamps 2 or 5 light when Optos 1 or 2 are
interrupted, and ping pong balls can be fired by pressing the bomb button.
Test 2 Godzilla Motor Test
Godzilla motor operates and count lamp 4 lights when Opto 3 is interrupted
Service Bracket
