Test 3 Ball Shooting Test
The mouth opens and balls are automatically shot. The height to which balls are
shot can be adjusted during this test. (see 5-6 below)
Test 4 Sound Test
All the game sounds are produced one after another.
Test 5 Lamp and LED test
The count lamps light one after another. The game over and hit lamps flicker
alternately. The bomb button lamp and service LEDs light every other second.
Test 6 Switch Test
A bleep will sound each time the bomb button, hopper switch, service switch,
Godzilla's mouth microswitch or hopper outlet microswitch is pressed.
Pressing the test switch again will put the machine back to stand-by mode.

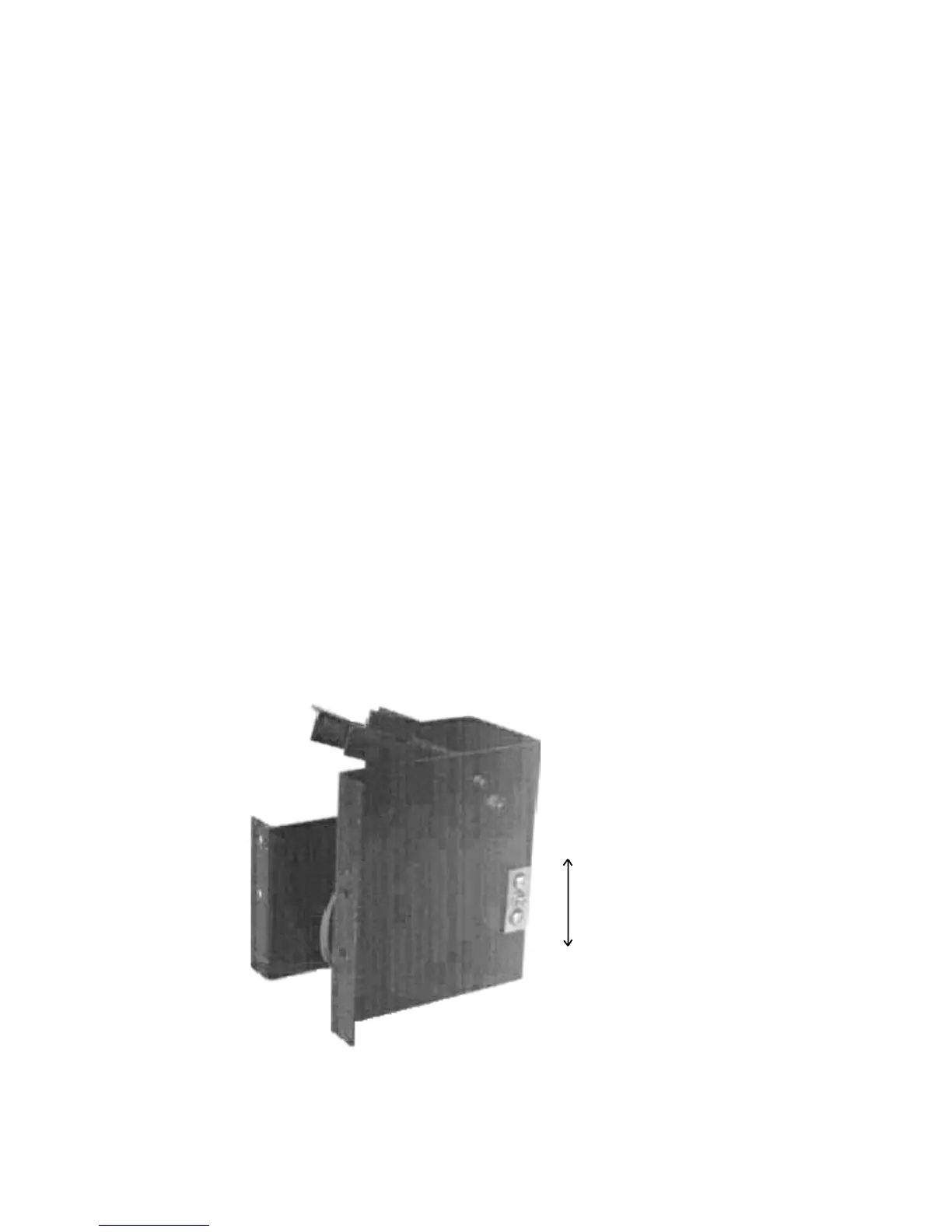

5-6. Ball Height Adjustment
The height to which the balls are fired can be adjusted by loosening (do not
remove) the two screws fixing the spring retaining plate on the side of the ball
shooter assy and moving the plate up or down. Ensure that the two screws are
fully tightened when adjustment is completed.
Ball Higher
Ball Lower
Ball Height Adjust
6
