Page 43

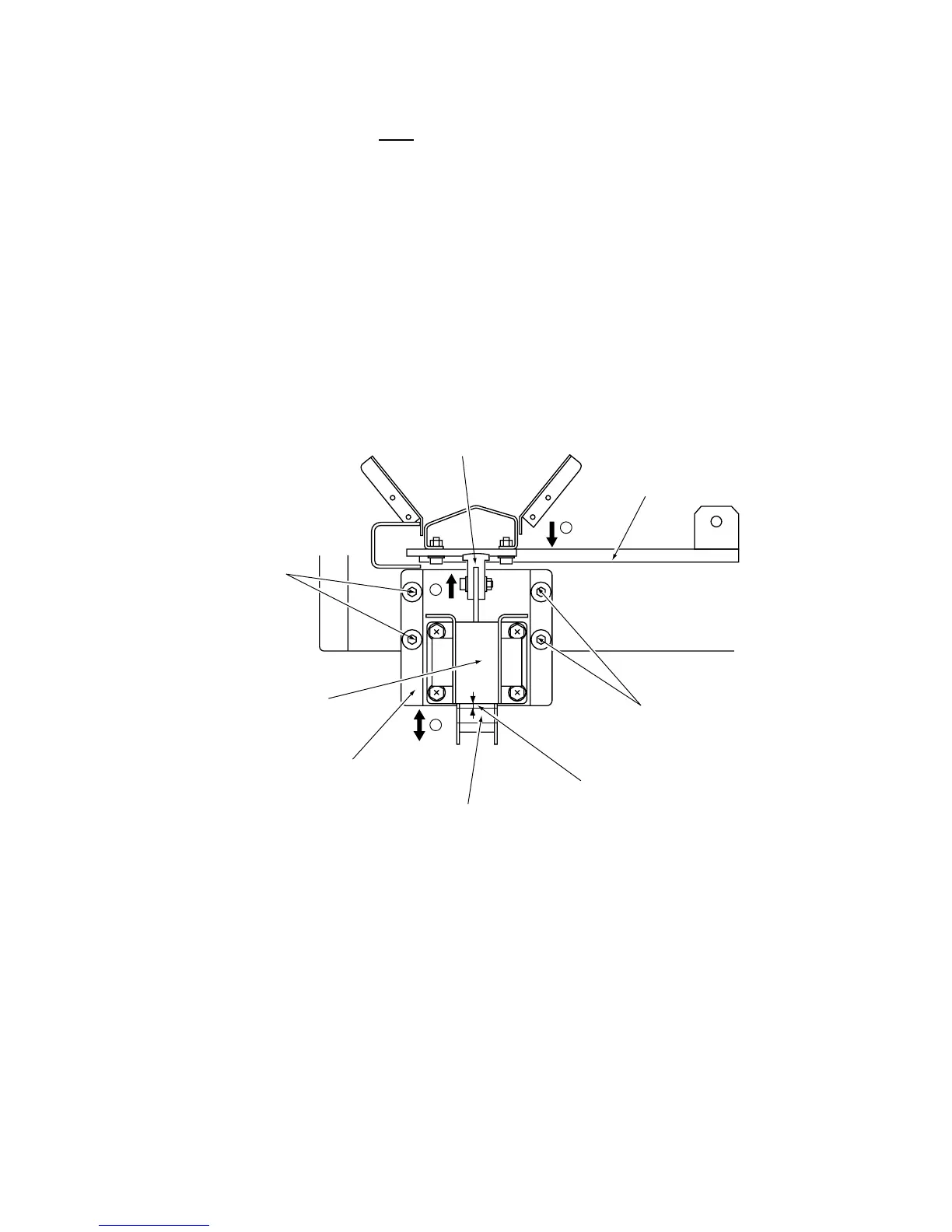

6-4 Adjusting the Launcher Solenoid
The Launcher Solenoid
must be adjusted after replacement.
1. Loosen the 4off socket flange head screws (M6x10), only sufficiently so that the
solenoid bracket can just be moved by hand.
If the screws are loosened too much it will make it difficult to adjust the solenoid.
2. Lower the solenoid bracket in the direction of arrow (a), and hold it in place by
hand so that it does not move up. Push the plunger block up, in the direction of
arrow (b), until it comes in contact with the solenoid arm.
3. Whilst maintaining the position of step 2 above, move the solenoid bracket in the
direction of arrow (c) so that there is a gap of approximately 2.5mm between the
launcher solenoid and solenoid plunger.
4. Re-tighten the 4off flange socket head screws (M6x10).
After re-tightening the 4off flange socket head screws (M6x10) check that
the gap between the launcher solenoid and solenoid plunger is still approx.
2.5mm, if not repeat steps 1 to 4 above.
c
b
a
Plunger block
Solenoid arm
Flange socket
head screw
(M6x10) x2
The space between the
solenoid plunger and solenoid
body should be approx. 2.5mm
Solenoid plunger
Solenoid bracket
Launcher solenoid
Flange socket
head screw
(M6x10) x2
To Next Page
