Page 53

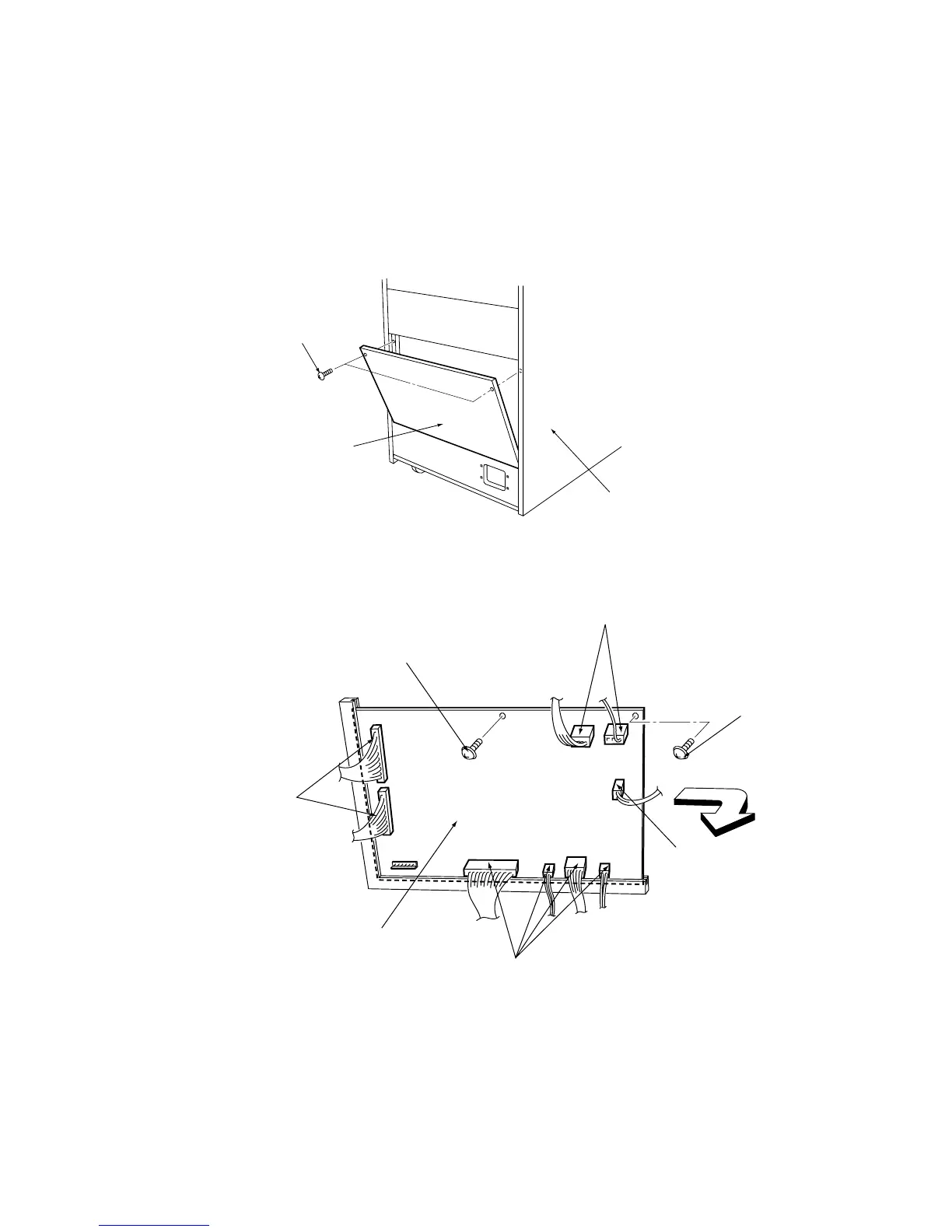

7-2 Replacing the Game PC Board
Note: The Game PC Board is susceptible to damage from static electricity. Anti static
precautions should be taken when removing, handling and refitting the Game
PC Board.
1. Remove the 2off Button head screws (M5x35) and remove the rear maintenance
door (L) of the Target Cabinet.
2. Disconnect all the connectors from the PC Board.
3. Remove the 2off pozi head screws
4. Slide the Game PC Board in the direction of the arrow, in the diagram above, and
remove the board.
5. Reassemble in the reverse order.
Button head screw
(M5x35)
Target Cabinet
Maintenance Door (L)
Connectors
Connectors
Connectors
Connector
Game PC Board
Pozi flange head screw
(M3x6)
Pozi head screw
(M3x6)
