4. Tools Needed To Install e Dimmer
then the APP can connect the dimmer when the bulb flash once and the status indicator turn blue
and flash. (①If failed to connect,APP will exit the network mode after three minutes.②During the
network connection,the lamp may flicker if the light is in the brightest.After the network is success-
fully configured or the network is been withdrawn, the lamp will return to normal).
3.3.8 Continuous short press nine times when in on status and the lamp flash five time to clear the
setting brightness(min or max).
3.3.9 Restore factory Settings: Continuous short press ten times when in ON and the lamp flash
once.
5.Installation
5.1 WARNING: To avoid fire and electrical shock, TURN PFF POWER at circuit breaker or fuse and
test that power is off before wiring.
5.2 Choose the connection of 5.3.1 or 5.3.2 to install the dimmer per your requirement. *The wire
core cross-sectional area of the terminals is 0.75 mm² - 1.5mm²,stripping length is 9mm.

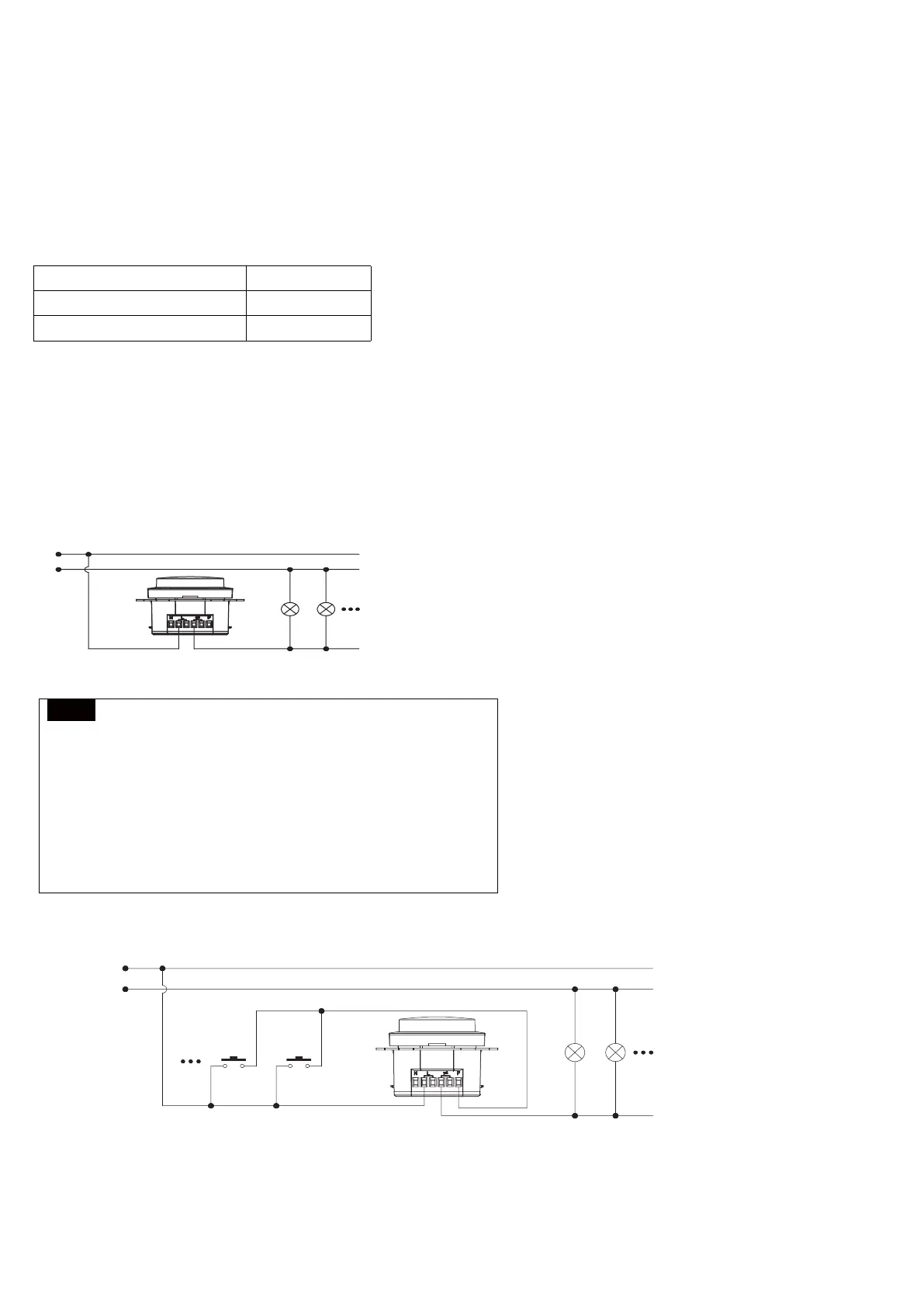

5.3 Typical wiring application
5.3.1 Live Wire
5.3.1.1 1-Way
5.3.1.2 Multi-way
Ø5mm Philips Screwdriver
Test pencil
Plier
Ruler
Electrical Tape
Cutter
△
!
L
N
NOTE
:
(a)The dimmer should be connected to the electricity side of the load to
ensure normal work.
(b)The dimmer support to connect with multiple self-reset switches
(20pcs at most) to control the UP/DOWN and ON/OFF at the same
time.
(c)Two or more dimmers should not be connected in parallel or series
to control the same load from two different locations.
Multipl self-switches control one dimmer wiring diagram
L
N
Push switch
(Self-reset
switch)
Push switch
(Self-reset
switch)
To Next Page
