Nanni N3.30 - Page 48

G-34
05-E3B, 05-E3BG, WSM
G GENERAL

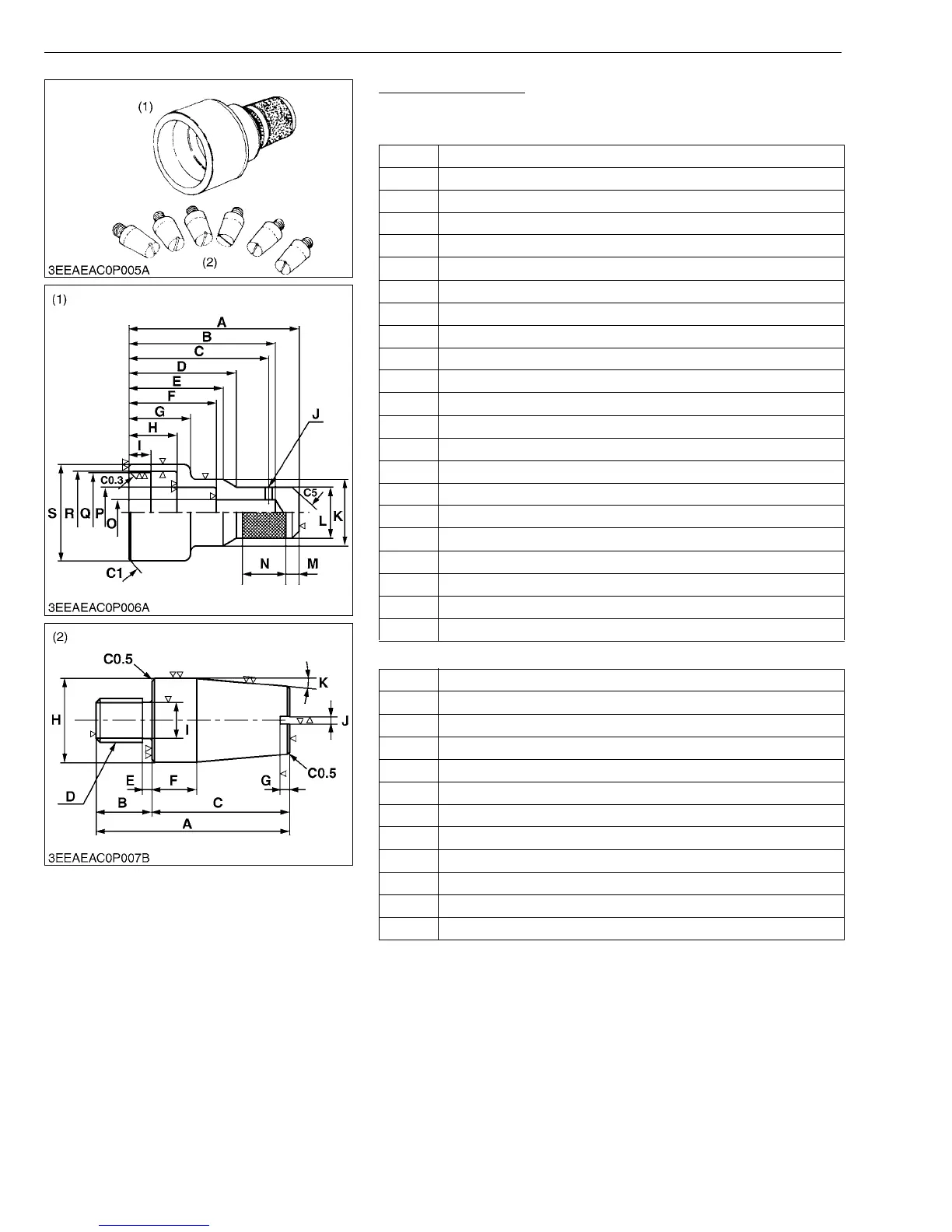

Crank Sleeve Setter
Application: Use to fix the crankshaft sleeve.
(1) Auxiliary Socket for Pushing
(2) Sleeve Guide
W1026961
A 130 mm (5.12 in.)
B 112 mm (4.41 in.)
C 107 mm (4.21 in.)
D 82 mm (3.2 in.)
E 72 mm (2.8 in.)
F 67 mm (2.6 in.)
G 47 mm (1.8 in.)
H 36.00 to 36.20 mm (1.418 to 1.425 in.)
I 17 mm (0.67 in.)
J 5.0 mm dia. (0.20 in. dia.)
K 52 mm dia. (2.0 in. dia.)
L 40 mm dia. (1.6 in. dia.)
M 10 mm (0.39 in.)
N 33 mm (1.3 in.)
O 20 mm dia. (0.79 in. dia.)
P 40 mm dia. (1.6 in. dia.)
Q 72.10 to 72.15 mm dia. (2.839 to 2.840 in. dia.)
R 73 mm dia. (2.9 in. dia.)
S 83 mm dia. (3.3 in. dia.)
C0.3 Chamfer 0.30 mm (0.012 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C5 Chamfer 5.0 mm (0.20 in.)
A 42 mm (1.7 in.)
B 12 mm (0.47 in.)
C 30 mm (1.2 in.)
D M10 × Pitch 1.25
E 2.0 mm (0.079 in.)
F 10 mm (0.39 in.)
G 2.0 mm (0.079 in.)
H 17.90 to 17.95 mm dia. (0.7048 to 0.7066 in. dia.)
I 8.0 mm dia. (0.31 in. dia.)
J 1.8 mm (0.071 in.)
K 0.09 rad (5 °)
C0.5 Chamfer 0.5 mm (0.02 in.)
KiSC issued 12, 2007 A
