Nanni QLS 32T - Principal Parts of the Generating Set

1. Engine alternator
2. Engine alternator belt
3. Starter
4. Heat exchanger
5. Coolant ll orice
6. Coolant pump
7. Seawater pump
8. Exhaust elbow
9. Air lter
10. Oil ll orice
11. Oil lter
12. Oil drain pump (option)
13. Oil gauge
14. Fuel lter
15. Fuel pump
16. Supports
17. Generator
18. Generator identication plate
19. Engine identication plate
20. Generating set hoisting eyes

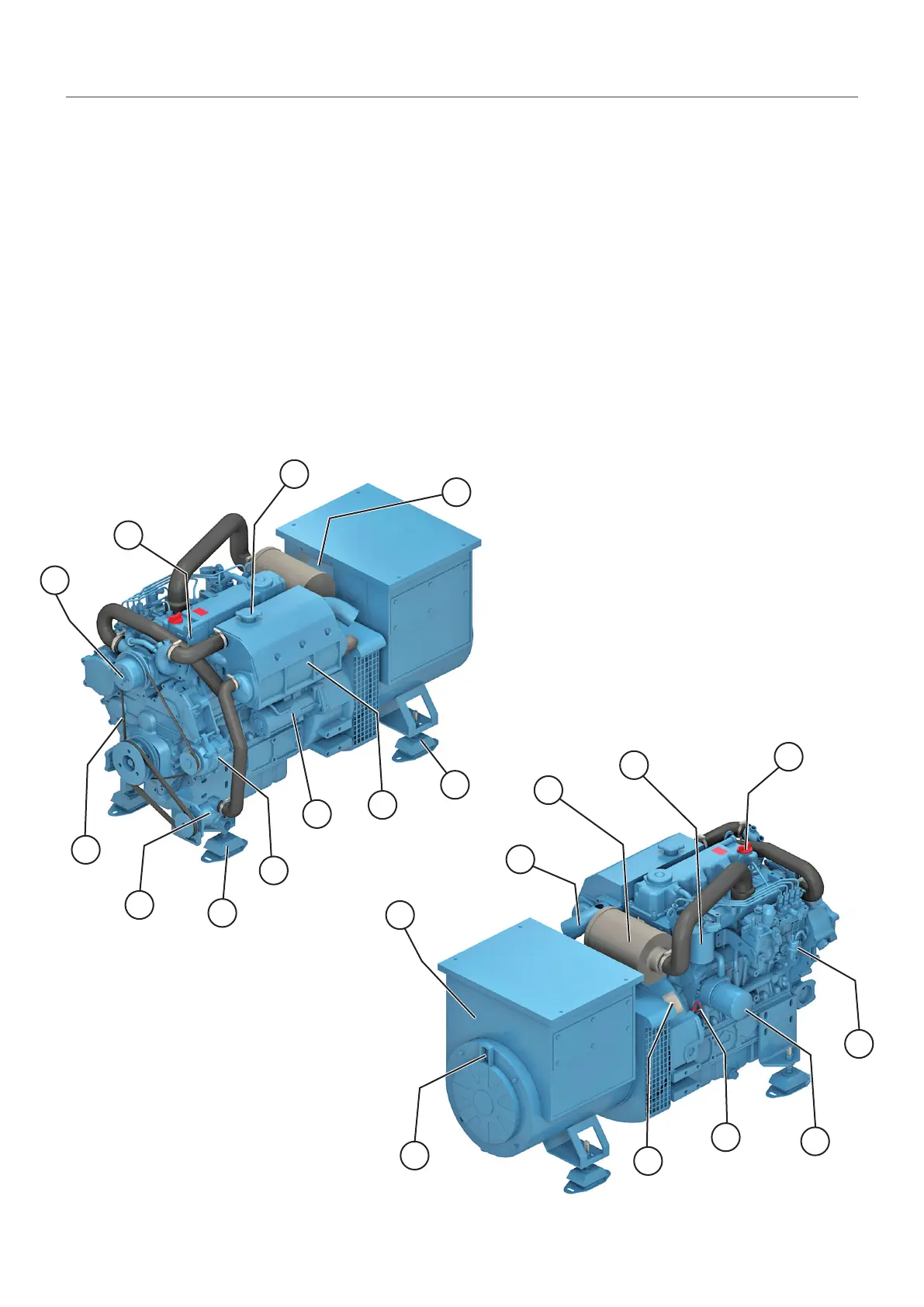

Principal parts of the generating set (QLS32T-QMS32T)
Presentation
Some equipment may not be part of your generating set.
The model represented hereafter is a QLS32T. Only the generator is different on the QMS32T.
