FUSES
The engine electrical system is protected from electrical
overloads by fuses. On T4 and Z4 engines, fuses and
relays are located on the side of the engine (see picture
next page).
If the engine does not start or if the instruments panel
does not operate, a fault might be somewhere in the
electrical system and a fuse may have blown up.
Investigate the cause before replacing the faulty fuse
straight away. Keep an assortment of spare fuses on
hand. Replace a fuse with one of the same rating.
CAUTION !
If the replaced fuse blows again, the failure is larger than
a simple incident. If you are still at shore, do not start
the engine, and check rst on your on in taking all usual
precautions. If the fault is not resolved quickly, contact
your nearest Nanni representative for repair.
If you are at open sea, try to locate the fault and to repair
by yourself. Depending of the severity of the fault and
if the event is endangering navigation, establish a radio
contact to get help. Take steps as advised.

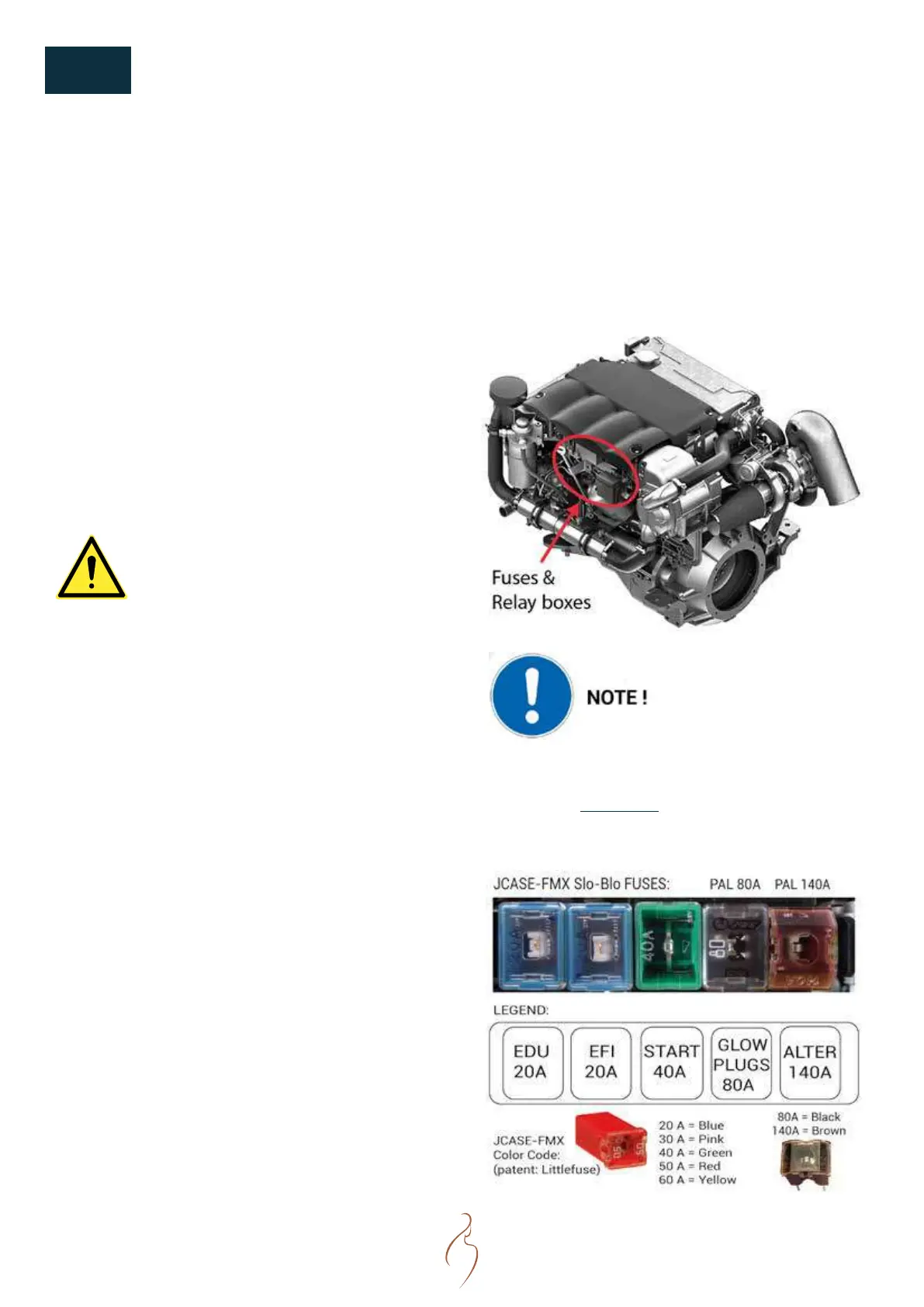

T4 (Z) 205 - T4 (Z) 230 - T4 (Z) 270 FUSES:
LOCATION OF COMPONENTS:
Fuses and associated relays are located on the side of
the engine into two separate isolated and waterproof
boxes:
The top cover must be removed for full access to the lids
of the fuses box. Cap screws torque is as follows : 10
Nm (7.4 ft.lb) [Not greater].
FUSES BOX:
