13
D3
heatless desiccant air dryer
4. service ‘B’ instructions - desiccant change
Replacing desiccant contents - (every 2 years or 12,000 hours)
1. Ensure the dryer is shut down and fully depressurised.
2. Remove the 4 x M10 bolts from the outlet
connection ange at the rear of the dryer.

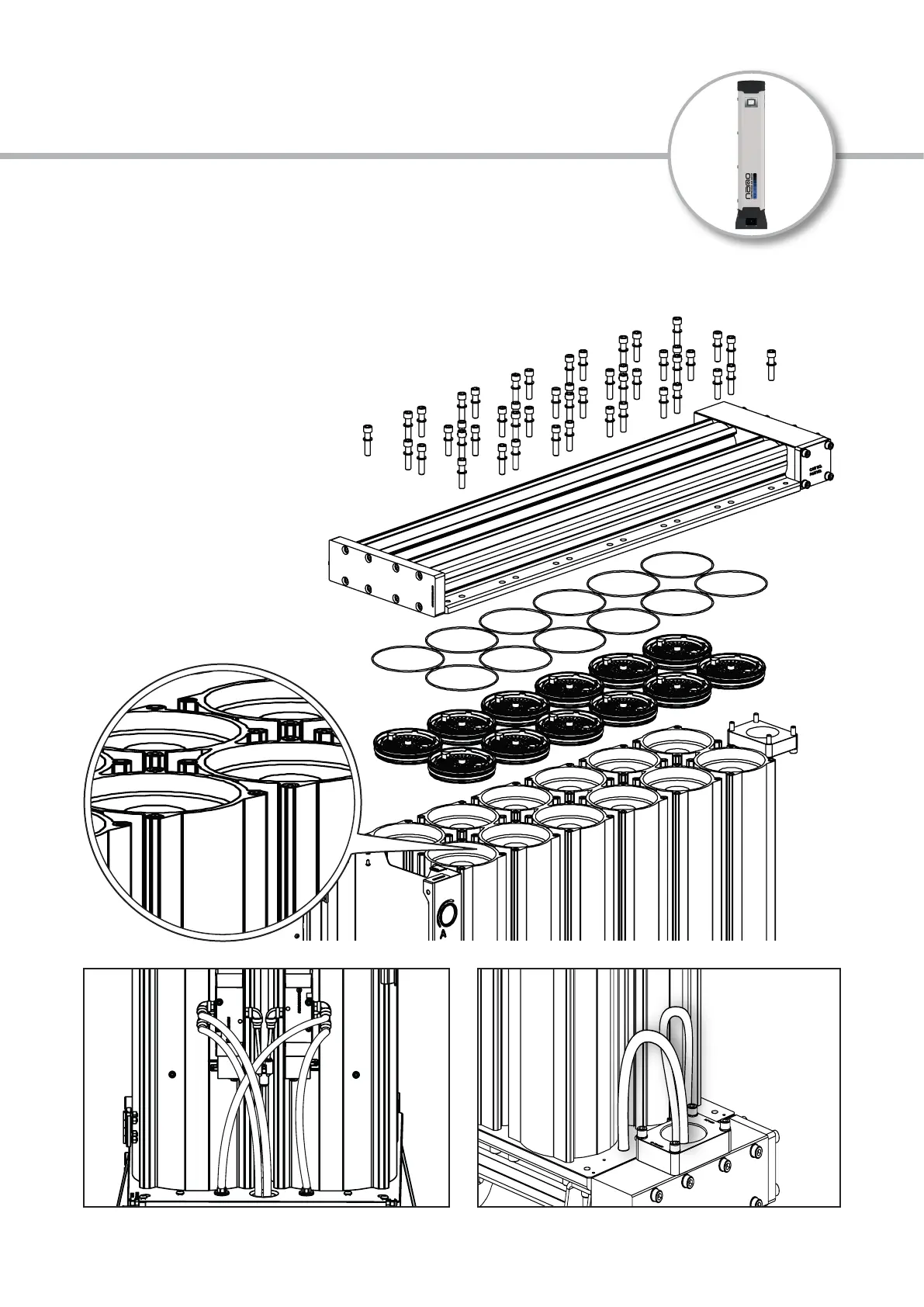

figure B.2figure B.1
figure B.3
