4. Installation & operation
4.1 Typical installation
4.2 Site selection
When selecting an installation site for the dryer,
the following conditions should be met:
• Installation site should be
protected from the weather
and other harmful conditions.
• The ambient temperature
must not drop below +1°C.
• The installation site should
be level and able to support
the weight of the dryer.
• Ensure sufficient space
around the dryer, to allow
access for operation and
maintenance.
• Dryer must be mounted
vertically as shown.

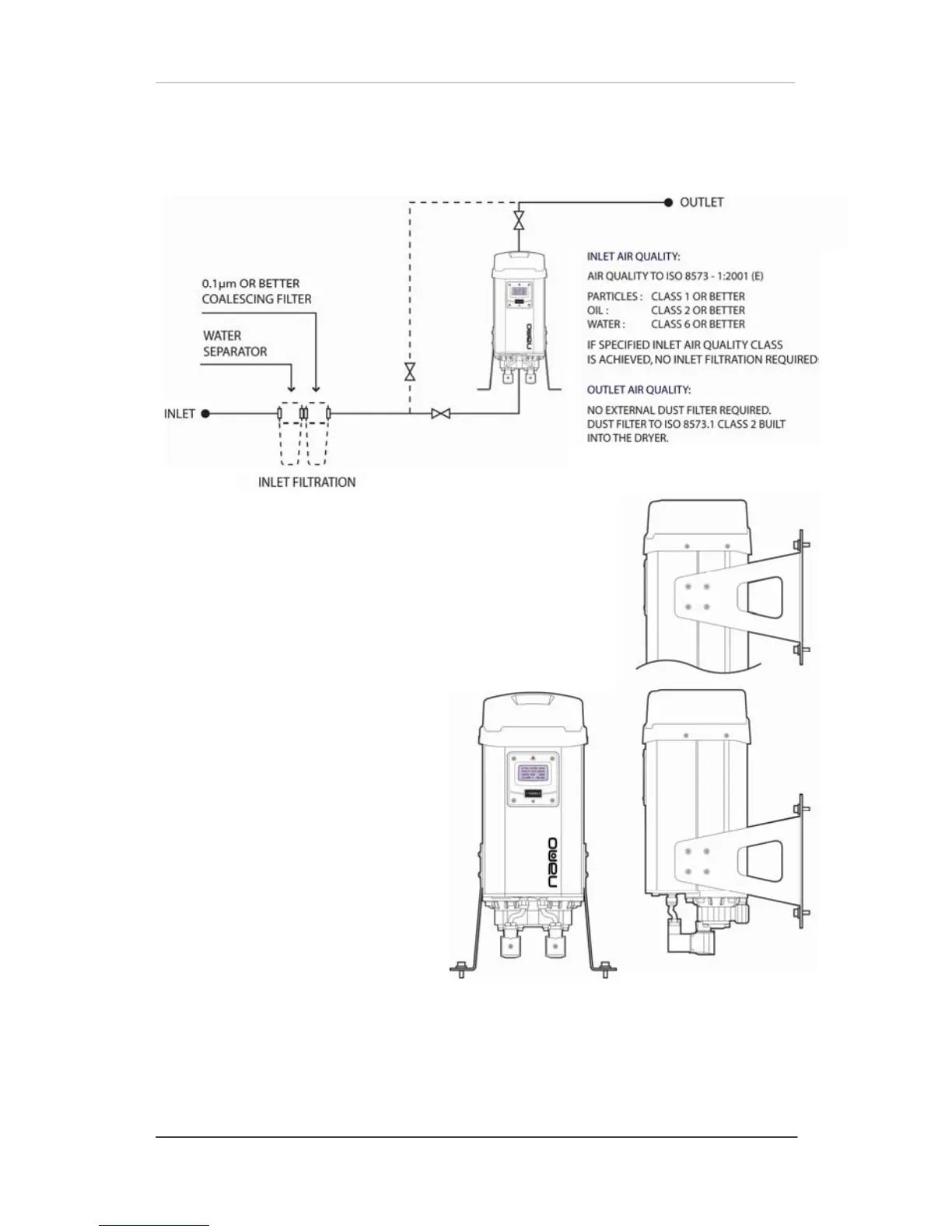

Figure 3: Dryer installation
Figure 4: Floor mounted
Figure 5: Wall mounted
* Note: Mounting bolts not supplied. Additional bracket provided for wall mounting sizes 040 & 050.
