EXPLANATION OF CONTROLS
NOTE
REFER TO THE PACKING CHECKLIST FOR THE
LIST OF ACCESSORIES SENT WITH THIS UNIT.
MAKE CERTAIN YOU HAVE ALL ACCESSORIES
BEFORE DESTROYING THE SHIPPING CONTAINER
AND PACKING MATERIAL.

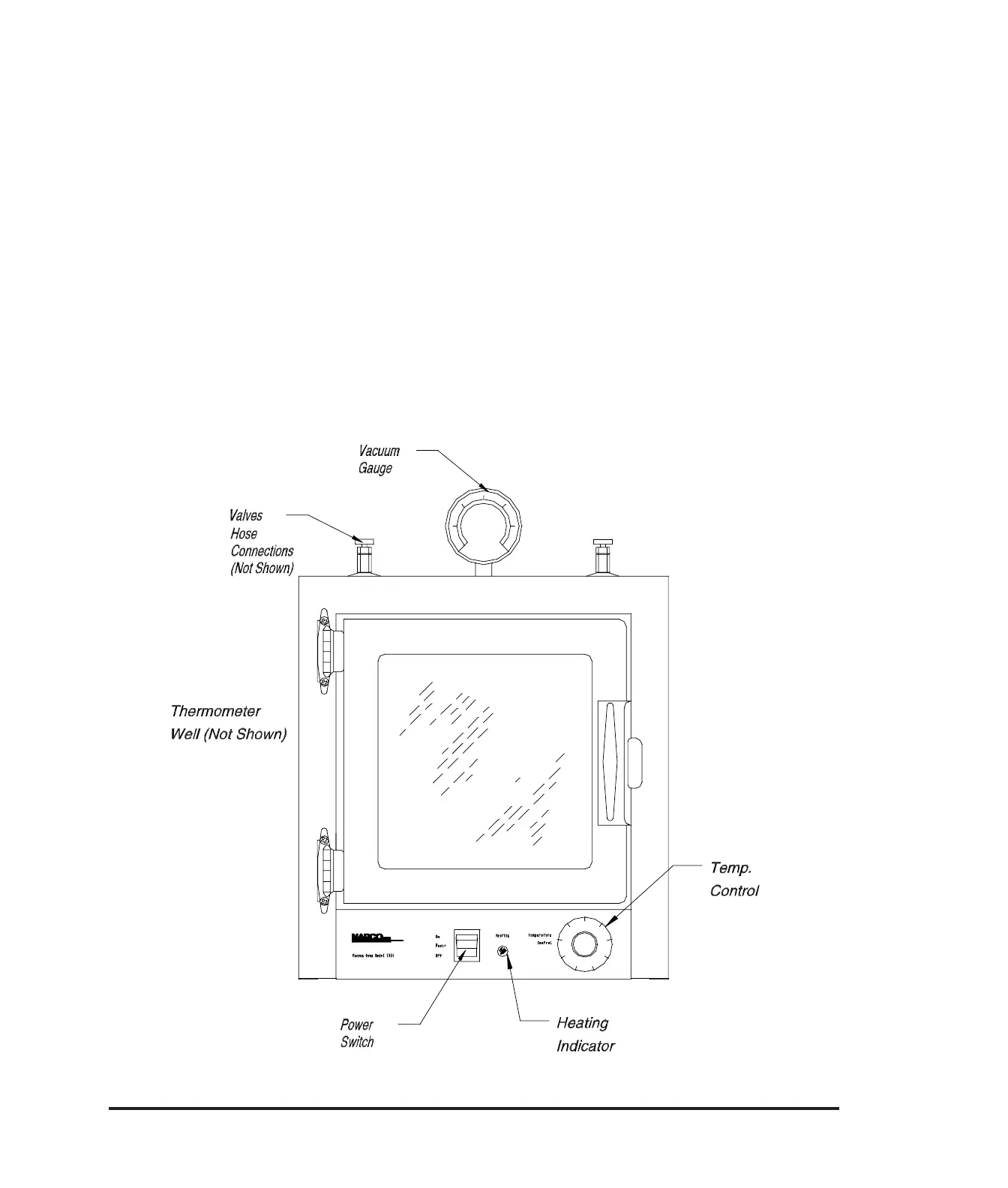

1. Power Switch - Applies power to the oven
heater controls.
2. Temp. Control - Regulates the oven
temperature.
3. Heating Indicator - Indicates when the oven
is being heated.
4. Thermometer Hook - Provides a means of
installing a thermometer for monitoring the
chamber temperature with a glass column
thermometer.
5. Vacuum Gauge - Indicates chamber vacuum
(in inches of mercury).
6. Hose Connections - Used for connecting
minimum 1/4" vacuum tubing between oven
and vacuum pumping systems, or other
apparatus.
7. Valves - Used for evacuating chamber,
controlling vacuum, or for bleeding air and
other gasses into chamber.
