12 StarLink SLE-MAX2-FIRE Commercial Series Sole/Dual-Path Alarm Communicator -- Installation Instructions
Alternate Telco Line to Alarm Panel Supervision

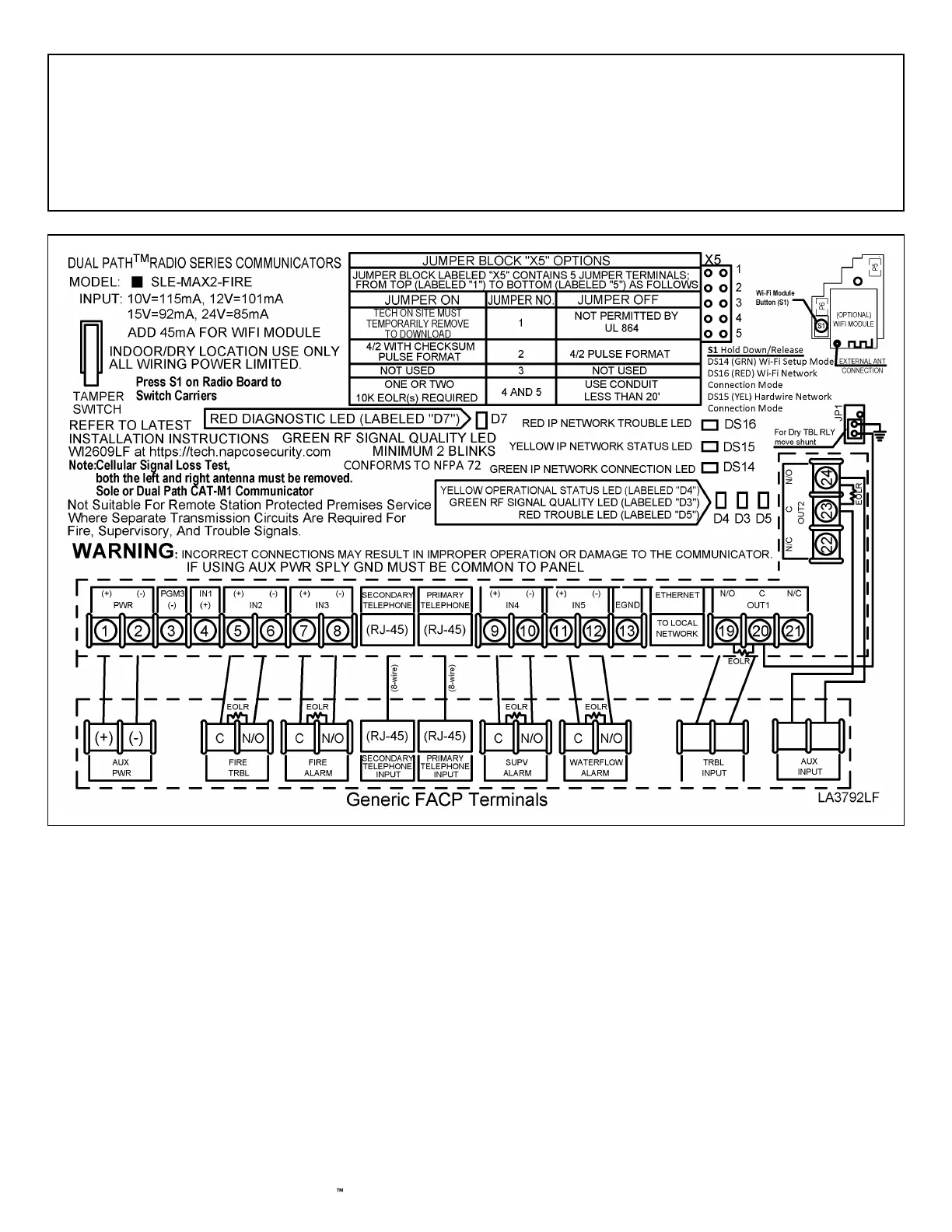

The following wiring and programming method shown in the wiring diagram below allows an existing FACP to use its two
telephone connections (primary and secondary) for supervision and central station reporting through the StarLink SLE-
MAX2-FIRE communicator. By removing the JP2 shunt and enabling the feature "Tip/Ring Wiring Fault Report", when
any communicator trouble is detected, the StarLink communicator will remove voltage from the secondary telephone
output, triggering the FACP to locally annunciate the Telco trouble and report the trouble to the central station. Note:
Some FACPs require J7 shunt to be removed for Primary Phone line to restore correctly.
