StarLink SLE-MAX2-FIRE Commercial Series Sole/Dual-Path Alarm Communicator -- Installation Instructions 11
CONTROL PANEL PC BOARD
LOCAL
DOWNLOAD
TELCO
SECONDARY
TELCO
PRIMARY
ETHERNET
1
(+)
2
(‒)
POWER
PGM3
IN1
IN2
IN3
3
(‒)
4
(+)
5
(+)
6
(‒)
8
(‒)
7
(+)
9
(+)
10
(‒)
12
(‒)
11
(+)
13
EGND
19
N/O
21
N/C
20
C
IN4 IN5
OUT1
22
N/C
24
N/O
23
C
OUT2
(STARLINK COMMUNICATOR HOUSING)
StarLink Communicator Terminals
PC Board: All connections are power limited except battery terminals.
JP1
Shunt JP1
on top 2 pins

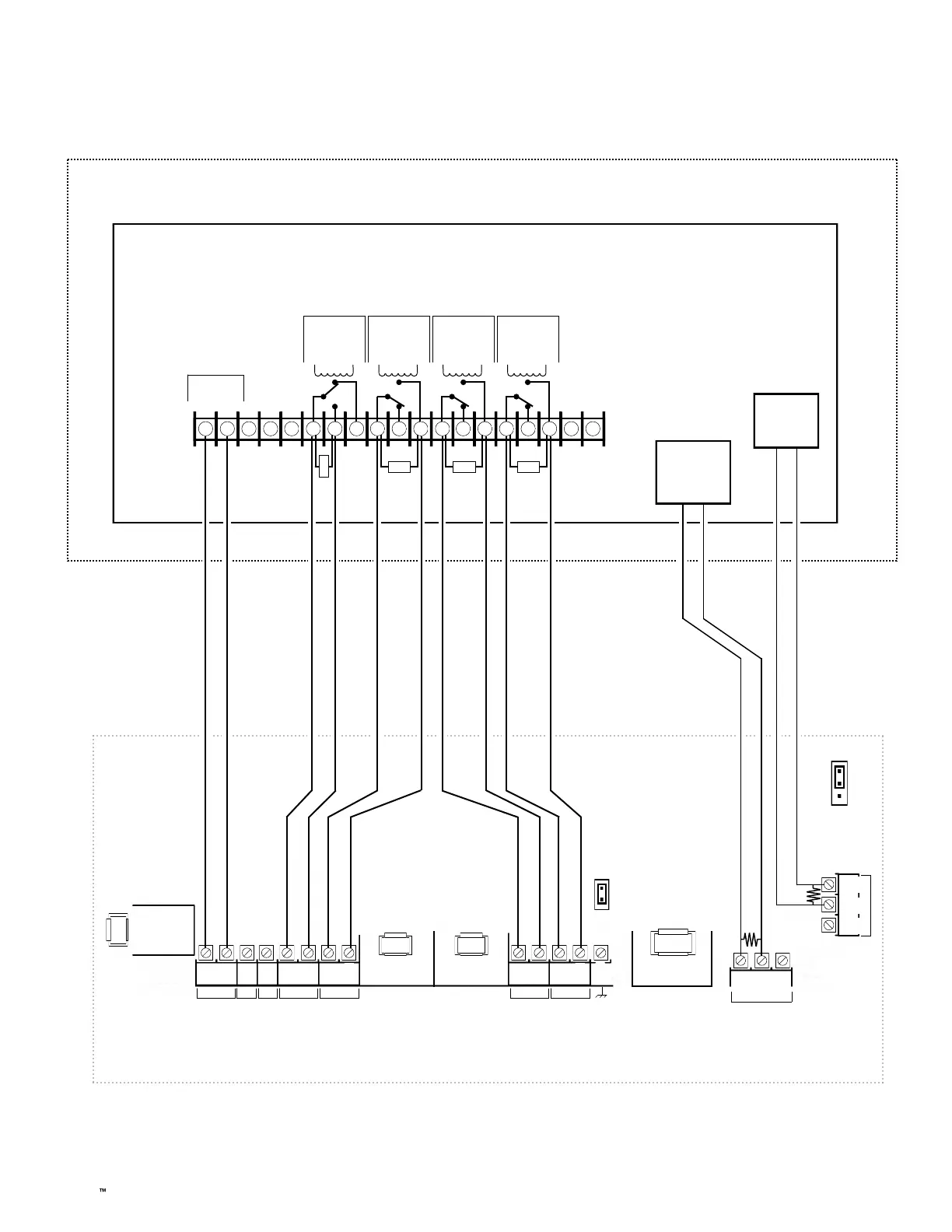

Wiring Diagram for FACP Relay Trigger Input Reporting
Refer to section "SUPPLYING POWER".
NC
(+) (‒)
NORMALLY
ENERGIZED
FIRE TROUBLE
RELAY
C NO
10kΩ
Aux Power:
Regulated 12/24VDC or
optionally use 12 or 24VDC
regulated Certified power
supply*. Note: Common
communicator ground and
FACP ground.
(CONTROL PANEL HOUSING)
FIRE ALARM
RELAY
SUPERVISORY
ALARM
RELAY
WATER FLOW
ALARM
RELAY
10kΩ 10kΩ 10kΩ
NO C NC NO C NC NO C NC
EOLR
AUX
INPUT
TROUBLE
INPUT
EOLR
AUX / REMOTE
FIRE PWR
J7
J7: Remove shunt to
disable 10K EOLR
across pins 1 and 8 of
primary TELCO input.
Do not remove if "Tip/
Ring Wiring Fault
Report" is enabled.
