installation manual
The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper tube.
Dissemble the bolts from the cover.(If there isn't a cover on
the outdoor unit, disassemble the bolts from the maintenance
board, and pull it in the direction of the arrow to remove the
protection board.)
(Refer to Fig.6-1)
Connect the connective cables to the terminals as identified
with their respective mached numbers on the terminal block
of indoor and outdoor units.
Re-install the cover or the protection board.
Connect the cable
6.1
The power connection for the air conditioner has to be
done at the main power distribution. The distribution has
to be of a low impedance, normally the required
impedance reaches at a 32 A fusing point.
No other equipment has to be connected with this power
line.
For detailed installation acceptance please refer to your
power supplier, if restrictions do apply for products like
washing machines, air conditioners or electrical ovens.
For power details of the air conditioner refer to the rating
plate of the product.
For any question contact your local dealer.
1
2
4
3
5
Remark per EMC Directive 2004/108/EC
For to prevent flicker impressions during the start of the
compressor (technical process) following installation
conditions do apply.
NOTE

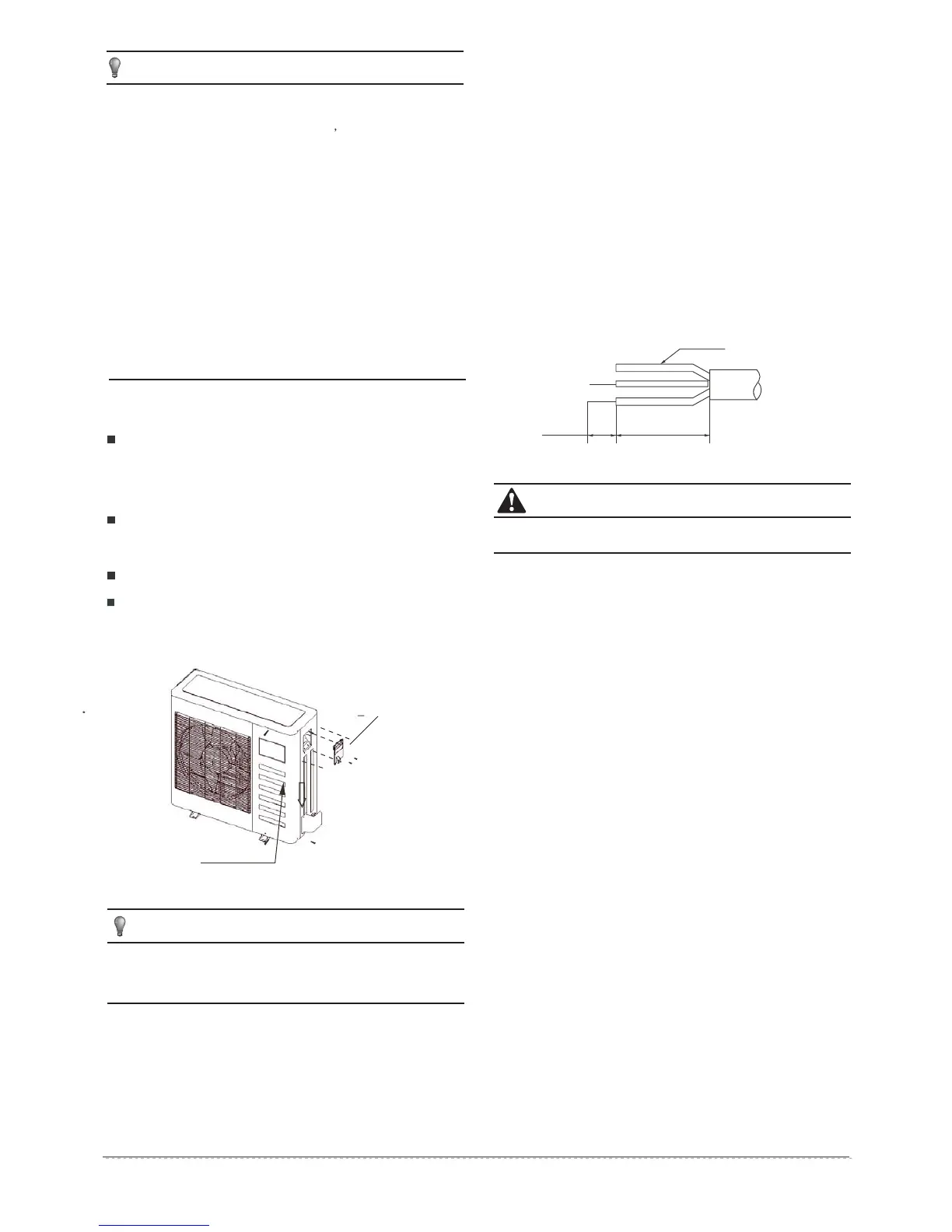

Fig.6-1
NOTE
Protection board
Cover
All the pictures in this manual are for explanation
purpose only. They may be slightly different from the
air conditioner you purchased(depend on model).The
actual shape shall prevail.
6. Outdoor unit
Wrong wiring connections may cause some electrical parts to
malfunction.
CAUTION
Remove the electric parts cover from the outdoor unit.
Connect the connective cables to the terminals as identified
with their respective matched numbers on the terminal block
of indoor and outdoor units. (Connective cable sheath
length to be removed and insert into the terminal block.)
To prevent the ingress off water, from a loop of the
connective cable as illustrated in the installation diagram of
indoor and outdoor units.
Insulate unused cords (conductors) with PVC-tape. Process
them so they do not touch any electrical or metal parts.
1.
2.
3.
4.
Fig.6-2
Cord wire
40mm10mm
The Specification of Power
6.2
(Refer to Table6-1)
