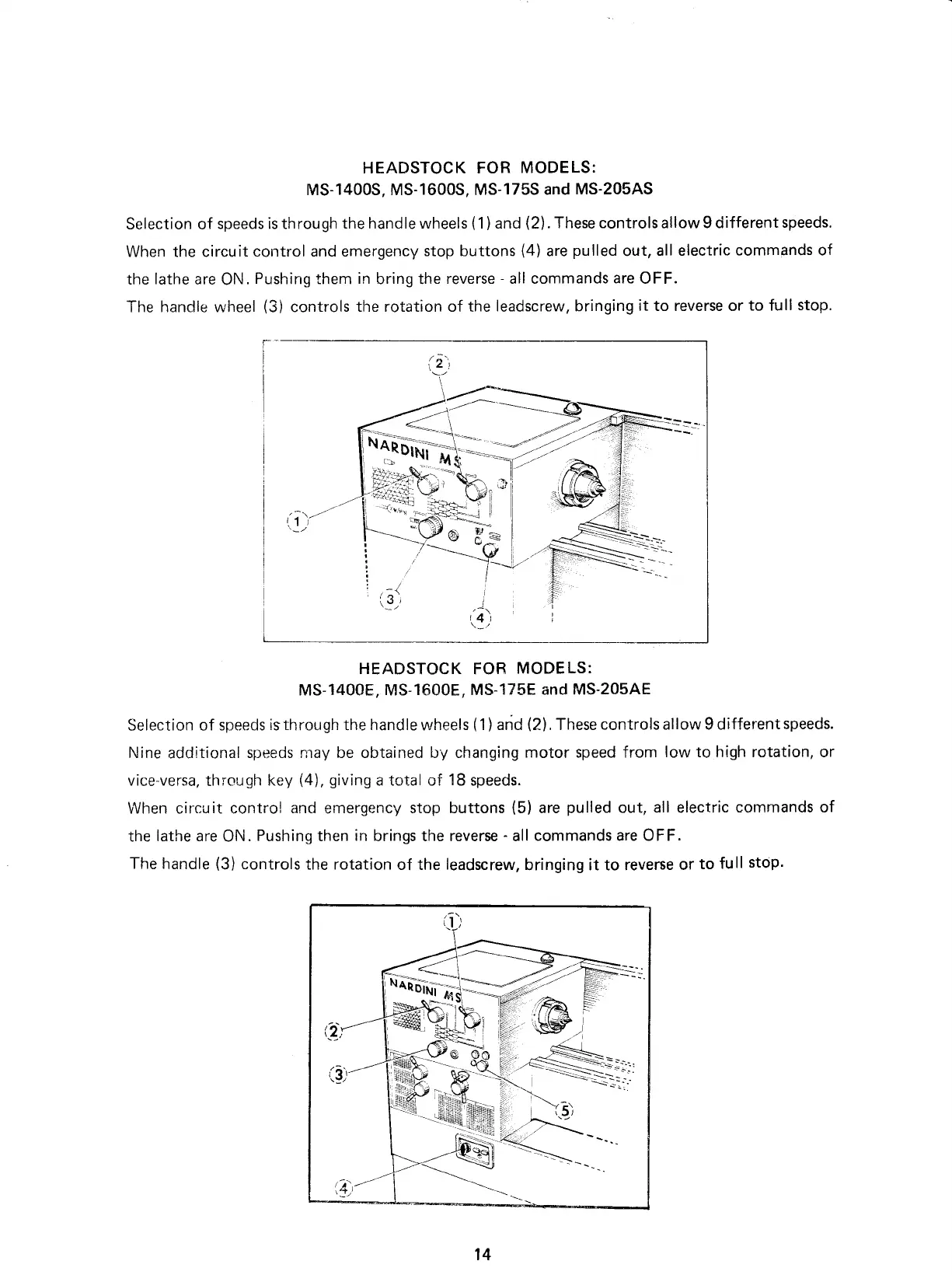

HEADSTOCK
FOR
MODELS:
MS-14005, MS-16005, MS-175S
and
MS-205AS
Selection of
speeds is through
the handle wheels
(1
)
and
(2).
These controls allow 9 different
speeds.
When the circuit
control and emergency
stop buttons
(4)
are
pulled
out,
all electric
commands of
the
lathe
are
ON.
Pushing
them
in
bring the
reverse
-
all commands
are
OFF.
The handle wheel
(3)
controls
the rotation of the
leadscrew, bringing
it to reverse or
to full
stop.
HEADSTOCK
FOR
MODELS:
MS-14008, MS-1600E,
MS-175E
and MS-205AE
Selection of
speeclsisthroughthehandlewheels(1)ariA(2),Thesecontrolsallowgdifferentspeeds.
Nine
ad<jitionai
speeds nray be obtained by changing
motor speed from
low to high rotation, or
vice-versa,
through
key
(4),
giving
a total of
18
speeds.
When circuit control
and
emergency
stop buttons
(5)
are
pulled
out, all electric
commands of
the
lathe are
ON.
Pushing
then
in
brings the reverse
-
all
commands are OFF.
The
handle
(3)
controls
the rotation
of the
leadscrew,
bringing it to reverse
or
to
full
stop.
