NARDINI MASCOTE MS-175E - Saddle Operation

ta
.\\
\.\

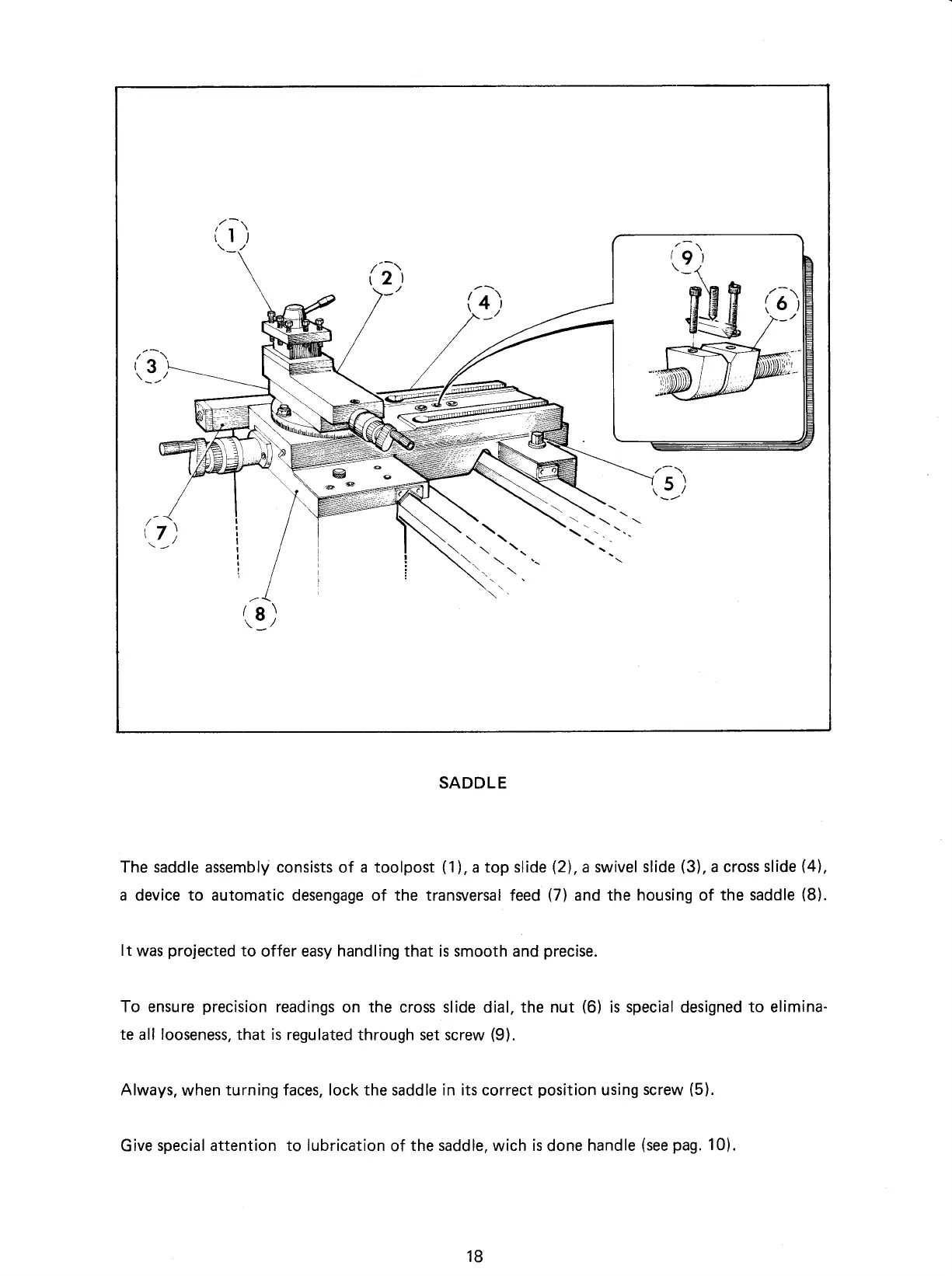

SADDLE
The saddle assembly consists
of
a toolpost
(1),
a
top slide
(2),
a swivel
slide
(3),
a cross
slide
(4),
a device to automatic desengage of the tranwersal feed
(7)
and the housing of the
saddle
(8).
Itwas
projected
to
offer easy
handling
that is smooth and
precise.
To ensure
precision
readings
on the cross slide
dial,
the nut
(6)
is special designed
to elimina-
te
all
looseness,
that
is
regulated through set screw
(9).
Always,
when
turning faces, lock
the saddle
in its correct
position
using
screw
(5).
Give
special attention to lubrication
of
the saddle,
wich
is
done
handle
(see
pag.
10).
18
