NARDINI MASCOTE MS-175E - Apron Operation

lal
tT'
l
I
(t)
ri;

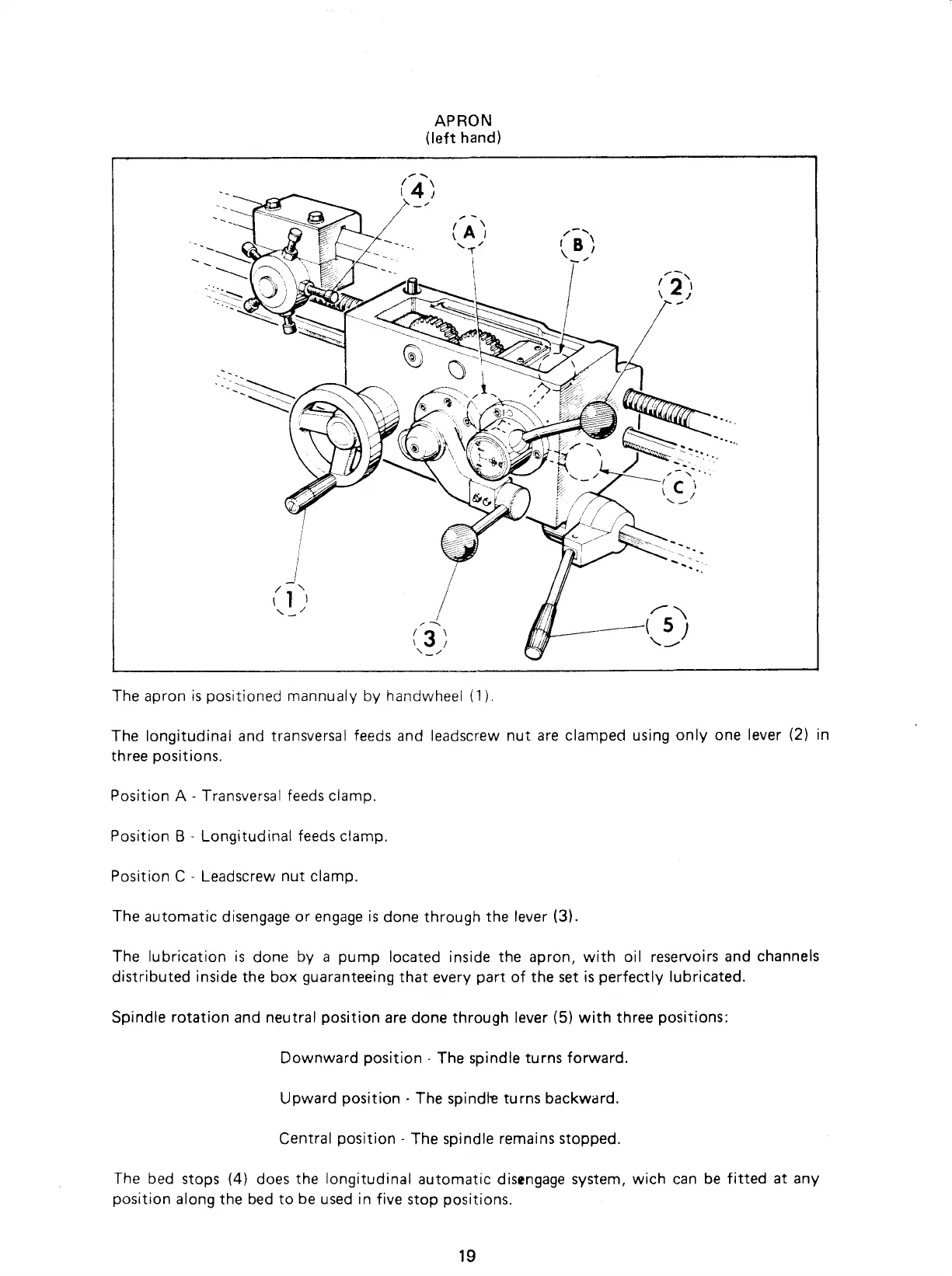

APRON
(left
hand)
The apron
is
positioned
mannualy
by
handwheel
('l
)
The longitudinal and transversal
feeds
and
leadscrew nut are clamped using
only
one
lever
(2)
in
three
positions.
Position
A
-
Transversal
feeds clamp.
Position
B Longitudinal
feeds clamp.
Position
C
-
Leadscrew
nut
clamp.
The
automatic
disengage
or engage is
done through
the lever
(3).
The lubrication is
done
by
a
pump
located inside the apron,
with
oil reservoirs
and channels
distributed
inside
the box
guaranteeing
that
every
part
of the set is
perfectly
lubricated.
Spindle
rotation
and neutral
position
are done through
lever
(5)
with three
positions:
Downward
position
-
The spindle
turns forward.
Upward
position
-
The spindle
turns
backward.
Central
position
-
The spindle
remains stopped.
The bed stops
(4)
does
the
longitudinal
automatic
discngage
system, wich can
be fitted
at any
position
along
the bed
to
be
used in
five stop
positions.
19
