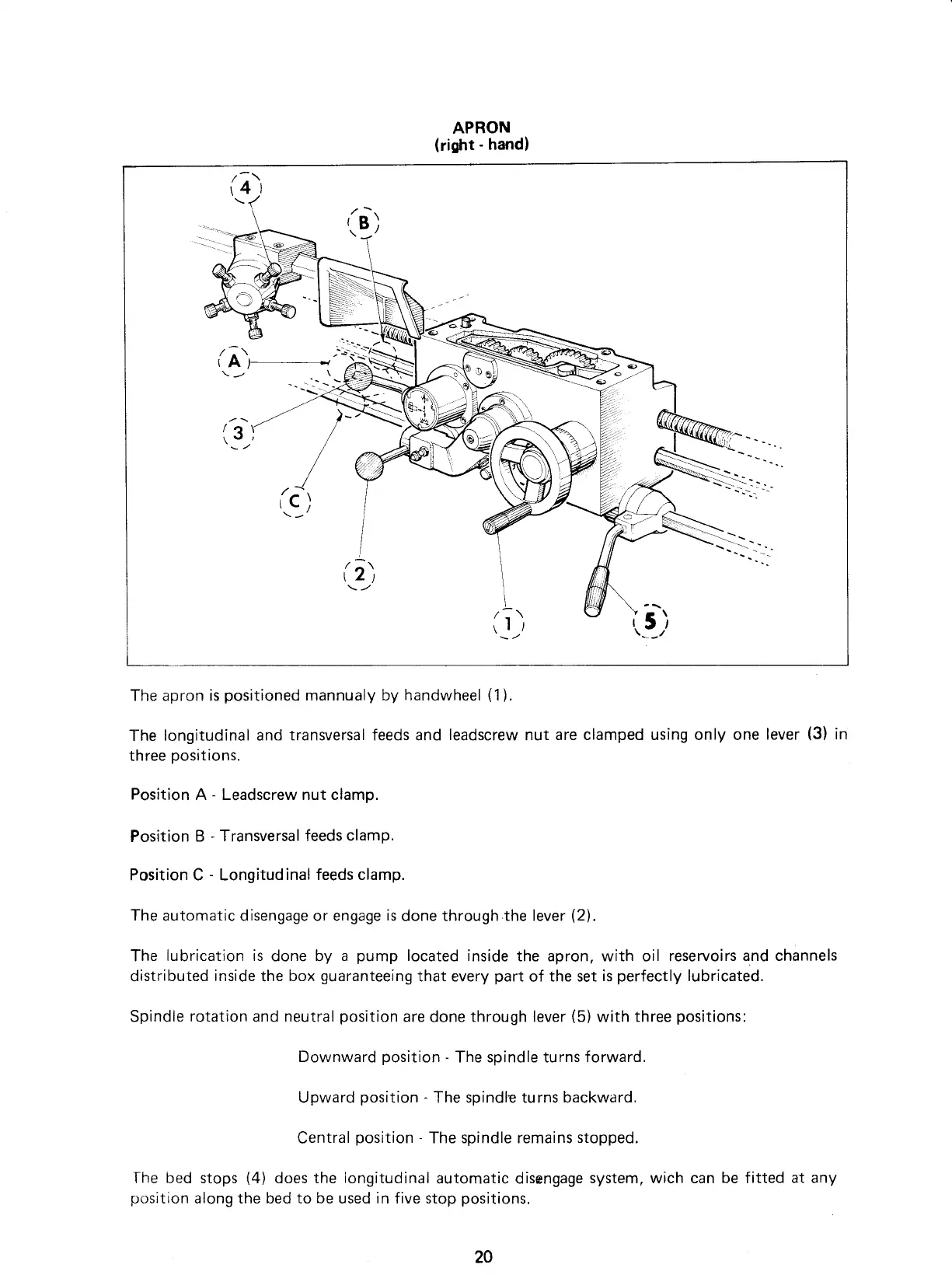

APRON
(right
-
hand)
The apron is
positioned
mannualy by handwheel
(1).
The
longitudinal and
transversal feeds and
leadscrew
nut
are clamped using only one
lever
(3)
in
three
positions.
Position
A
-
Leadscrew nut clamp.
Position
B
-
Transversal
feeds
clamp.
Position C
-
Longitudinal
feeds clamp.
The
automatic disengage or engage
is
done
through.the lever
(2).
The
lubrication is
done by
a
pump
located inside
the apron, with oil reservoirs
and channels
distributed
inside
the
box
guaranteeing
that every
part
of
the set
is
perfectly
lubricated.
Spindle
rotation
and neutral
position
are
done
through lever
(5)
with
three
positions:
Downward
position
-
The spindle turns forward.
Upward
position
-
The spindle turns backward.
Central
position
'
The spindle remains
stopped.
fhe bed stops
(4)
does the
iongitudinal
automatic disengage
system, wich can be fitted
at any
position
along the bed to be used in five stop
positions.
\
\
