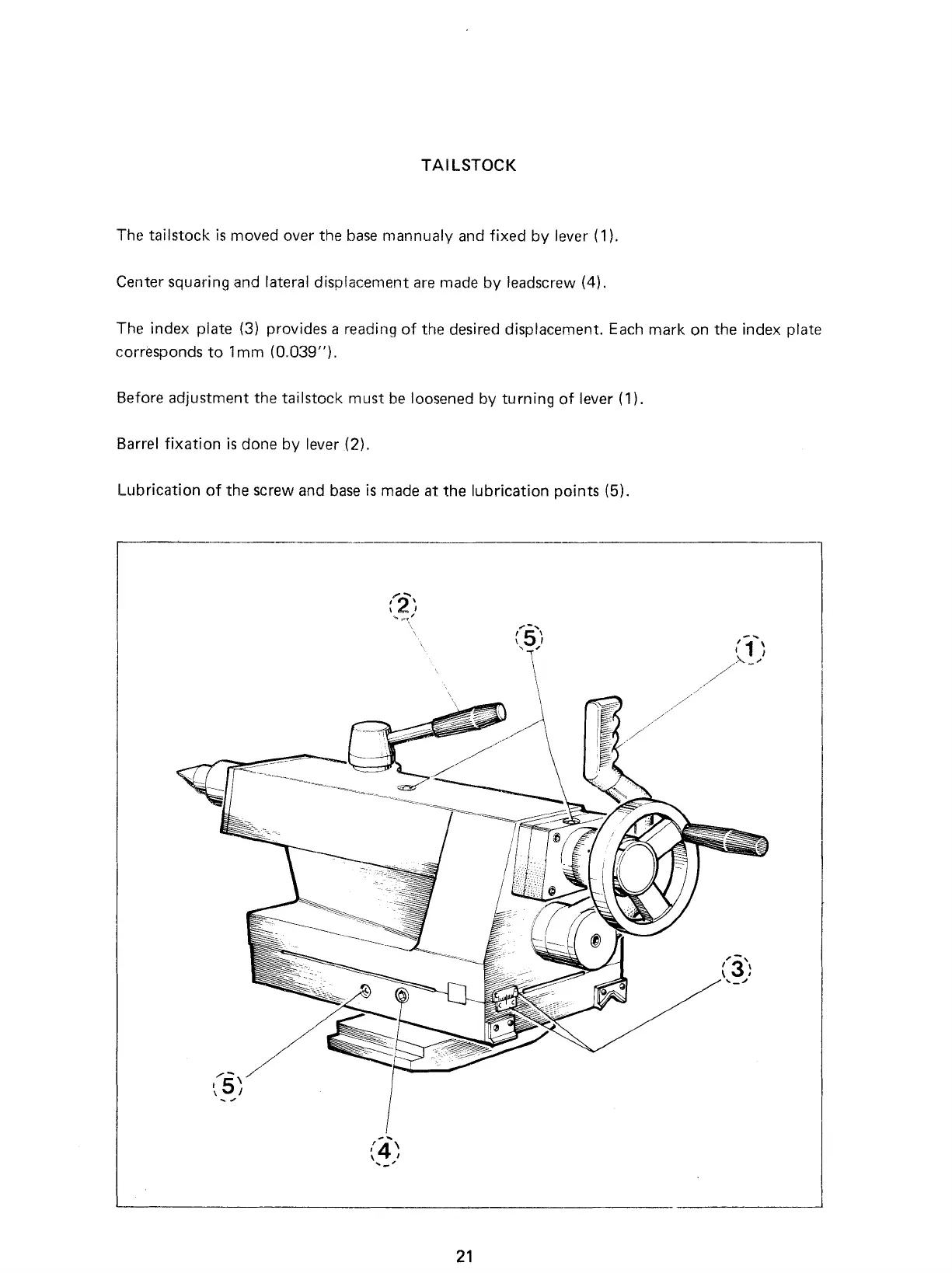

NARDINI MASCOTE MS-175E - Tailstock Operation

TAILSTOCK
The taiistock is
moved over the base mannualy
and fixed by lever
(1).
Center
squaring
and
lateral
displacement
are made by
leadscrew
(4).
The index
plate
(3)
provides
a reading
of the
desired displacement.
Each
mark
on
the
index
plate
corresponds
to
1mm
(0.039").
Before adjustment the
tailstock
must be
loosened
by turning
of
lever
(1).
Barrel fixation
is
done
by lever
(2),
Lubrication
of the
screw
and
base
is
made
at
the
lubrication
points
(5).
