NARDINI MASCOTE MS-175E - Page 9

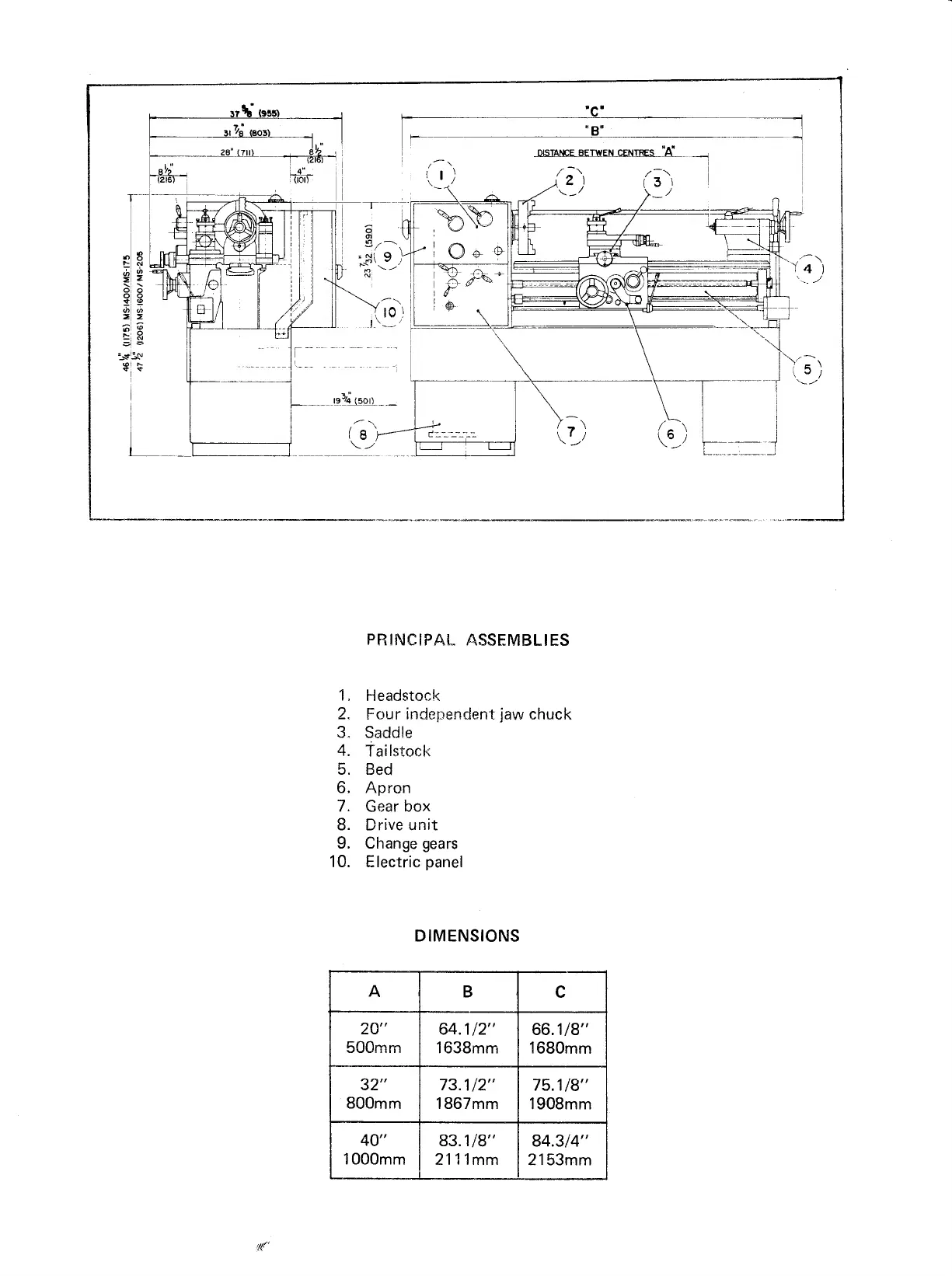

PRINCIPAL
ASSEMBLIES
1
"
Headstock
2.
Four
inelepenrlent
jaw
chuck
3.
Saddle
4.
f ailstock
5. Bed
6. Apron
7. Gear box
8. Drive unit
L Change
gears
1 0. E lectric
panel
DIMENISIONS
A
B
c
24"
500mm
64.112"
1638mm
66.118"
1680mm
32"
B00mm
73.112"
1B67mm
75.118"
1908mm
40"
1000mm
83.118"
21'!1mm
84.314"
2153mm
