2.4 Technical data
• Temperature adjustment range 40°C-115°C
• Temperature display 20°C-125°C
• In increments of 1°C
• Pre-selection time max. 24h
• In increments of 1/2 h
• If pre-selection time is 1 hour or less, in increments of 1 min.
3. Installation of sensor box

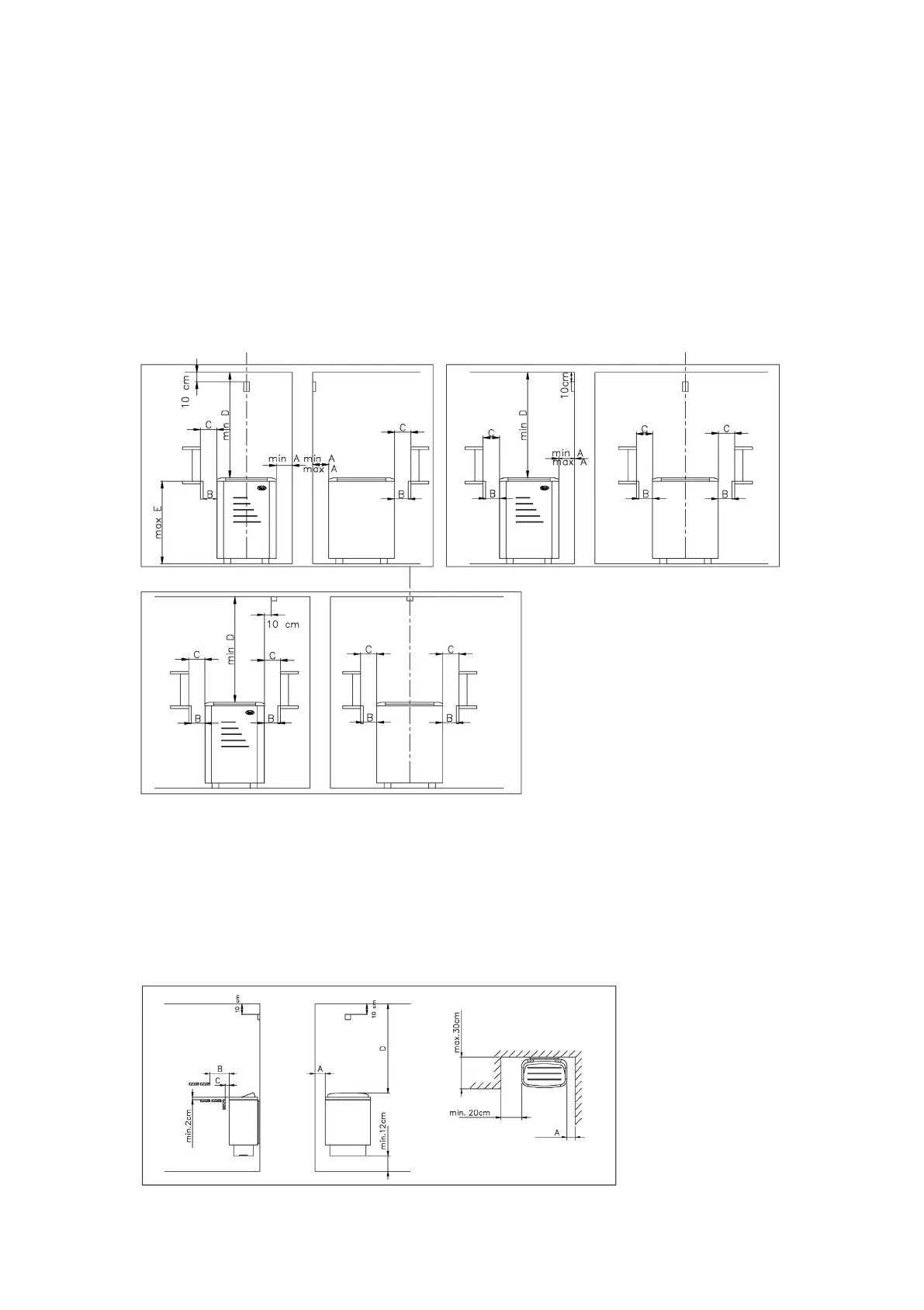

- For control centres T-2003 and B-2003 the sensor box is installed as shown in Fig. 2
Fig. 2. Installation of sensor box
Fig. 3. Installation of sensor box
- For control centre NAE-2003 the sensor box is installed as shown in Fig. 3
Installation of sauna stove
into wall recess.
