4. Installation of control centre
-The control centre is not suited for flush mounting. Fig. 4.
-The control centre shall be installed outside the sauna room.

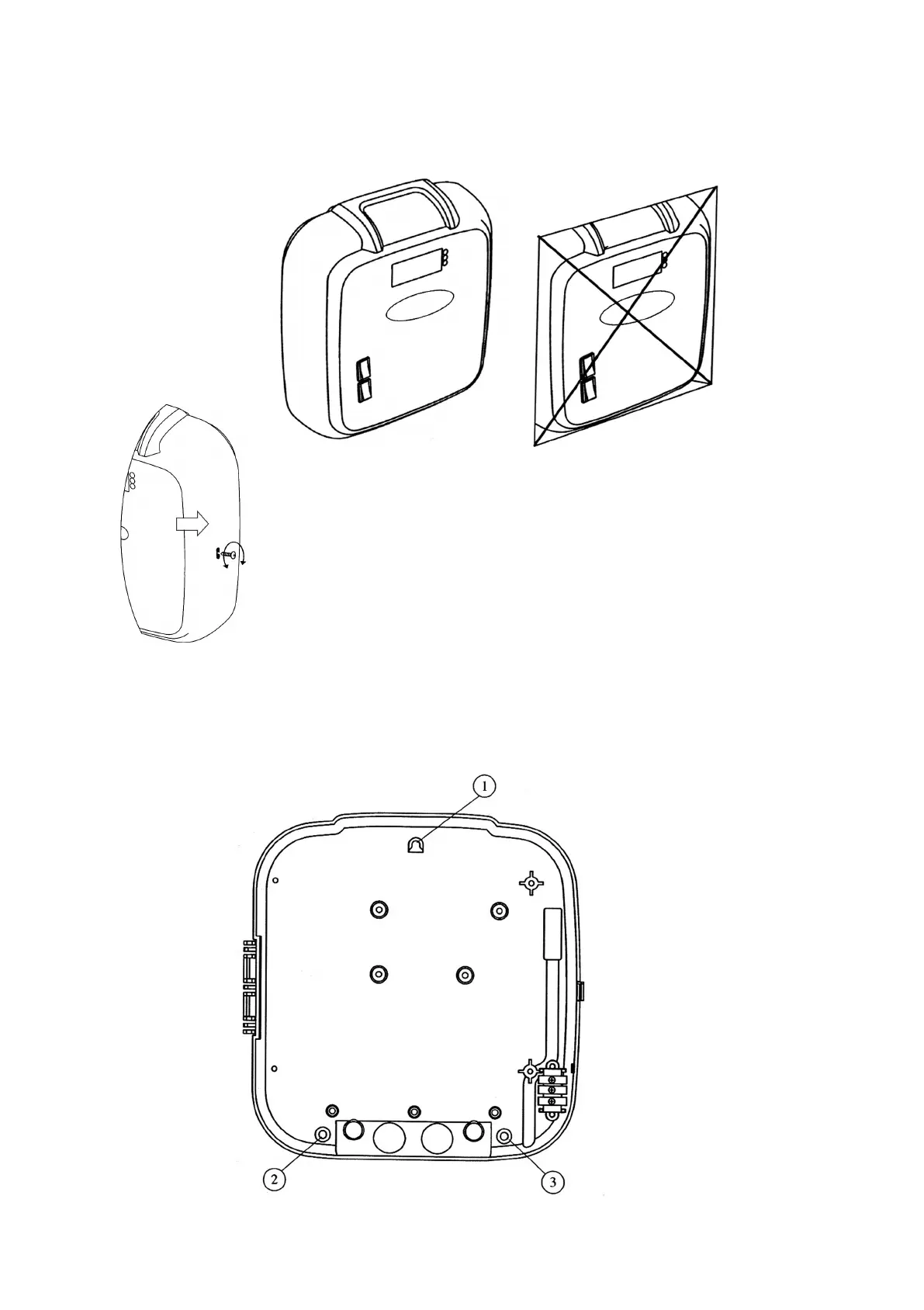

Fig. 4. The control centre is not suited for flush mounting.
Fig. 6. Fixing of the enclosure
-The enclosure is fixed on the wall with three screws. Fig. 6.
Fig. 5. Opening the enclosure
-The enclosure is opened by unscrewing the screw and
inserting a flat-headed screwdriver through the hole
indicated by the arrow.
