NARVI NM 600 - Installation and Operating Instructions; Sauna Stove Package Contents; Before Installation Checks

INSTALLATION AND OPERATING
INSTRUCTIONS
NARVI NM 4,5kW 6kW 9kW
NARVI MINEX 2,3kW 3kW 3,6kW
GB
Please read the manual carefully before you start installing and using it and
keep the manual for future reference. The products are meant only to be
used as a sauna heater and for heating the sauna.
1. THE ELECTRICAL SAUNA STOVE PACKAGE INCLUDES:
1. Sauna stove jacket
2. Stone basket with control device
3. Mounting plate + anchor screws
4. Installation instructions and instructions how to use
2. BEFORE INSTALLATION:
Check the following:
- The sauna stove is the right size (kW) for the size of the sauna (cu m).
- Table 1 shows the volumes of the sauna for the different types of stoves.
- If the sauna has non-insulated surfaces, for instance brick, tile or glass,
1.5 cu m must be added to the sauna volume for each square metre of
wall on the basis of which the effect needed for the sauna stove is
dened according to Table 1.
The volume values of the sauna according to Table 1 must not be
exceeded or lowered.
- The minimum height of the sauna and the distances of the minimum
protected areas have been dened in Table 1.
- Make sure that there is a sufciently steady mounting plate for the
anchor screws. A thin panel alone is not enough. Additional supporting
rails behind the panel or reinforcement boards on the top of the panel
which are fastened to the wall support can be a reinforcement.
TECHNICAL DATA
NM MINEX
- Width 430 mm 330 mm
- Depth 300 mm 200 mm
- Height 580 mm 630 mm
- Weight
(without stones)
10 kg 7 kg
Heater
model
Capacity Sauna room Minimal safety clearances to the heater Quantity
of stones
Connection *) Connection *)
Volume Height on the
sides
at the
front
at the
front
to the
ceiling
to the
oor
5-10
cm
400 V 3N~ Fuses 230 V 1N~ Fuses
min max min A **) B **) C **) D **) E **)
kW m
3
m
3
mm mm mm mm mm mm kg mm
2
A mm
2
A
NM
4,5 3 6 1900 50 50 20 1150 120 30 5x1,5 3x10 - -
6 5 8 1900 50 80 20 1150 120 30 5x1,5 3x10 - -
9 8 14 1900 100 100 20 1150 120 30 5x2,5 3x16 - -
MINEX
2,3
1,5 2,5 1900 20 50 20 900 150 15 - - 3x1,5 1x10
3 2 3 1900 20 50 20 900 150 15 - - 3x2,5 1x16
3,6 2 4 1900 20 50 20 900 150 15 - - 3x2,5 1x16
Table 1. Installation information for heater
**) See gure 1 *) Connected with rubber cable, type H07RN-F
or corresponding cable

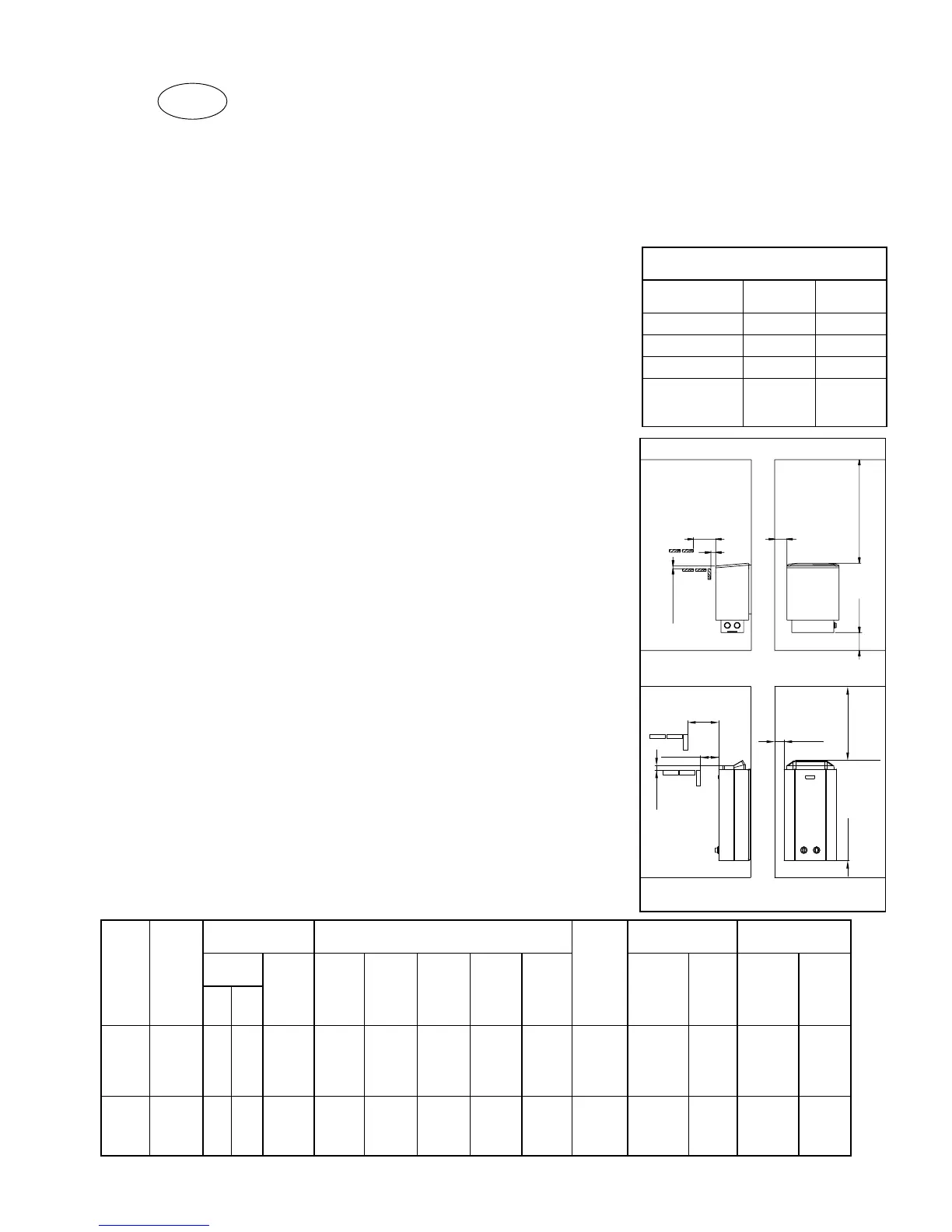

Figure 1. Minimal safety clearances
for the heater.
B
min. 20
min. 20
A
NM:
C
E
D
MINEX:
B
C
A
E D
