National Instruments myRIO-1950 User Manual

12 | ni.com | NI myRIO-1950 User Guide and Specifications

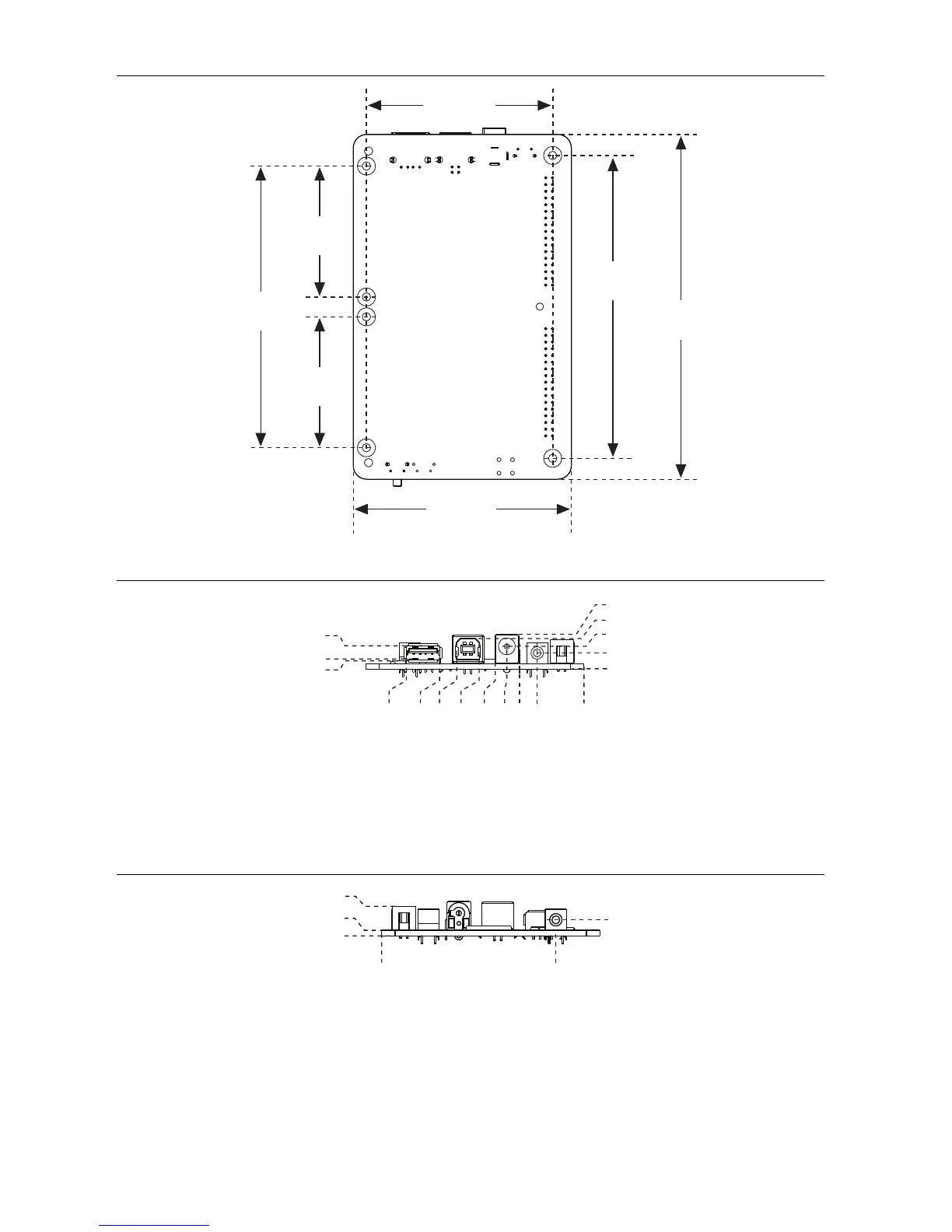

Figure 9. NI myRIO-1950 Dimensions, Back
Figure 10. NI myRIO-1950 Dimensions, I/O End
Figure 11. NI myRIO-1950 Dimensions, User End
106.8 mm
(4.2 in.)
70.6 mm
(2.78 in.)
114.8 mm
(4.52 in.)
130.7 mm
(5.15 in.)
49.6 mm
(1.95 in.)
49.6 mm
(1.95 in.)
82.7 mm
(3.26 in.)
0.0 mm (0.0 in.)
0.0 mm (0.0 in.)
17.7 mm (0.70 in.) 67.3 mm (2.65 in.) 54.8 mm (2.16 in.) 48.3 mm (1.90 in.) 39.7 mm (1.56 in.) 33.7 mm (1.33 in.) 29.2 mm (1.15 in.) 24.7 mm (0.97 in.)
6.1 mm (0.24 in.)
8.6 mm (0.34 in.)
11.5 mm (0.45 in.)
13.1 mm (0.52 in.)
3.5 mm (0.14 in.)
3.8 mm (0.15 in.)
8.7 mm (0.34 in.)
0.0 mm (0.0 in.)
0.0 mm
(0.0 in.)
2.1 mm (0.0
8 in.)
11.2 mm (0.44 in.)
66.0 mm
(2.6 in.)
6.1 mm (0.24 in.)

National Instruments myRIO-1950 Specifications

General

Brand	National Instruments
Model	myRIO-1950
Category	I/O Systems
Language	English
