Connecting Sensors and Devices to the
NI myRIO-1950
In order to connect sensors and actuators to the NI myRIO-1950, you must provide wiring to the
inputs and outputs on the MXP connectors. For templates with dimensional drawings for
daughterboards to connect to the MXP connectors, go to
ni.com/info and enter the Info Code
myRIOdbt.

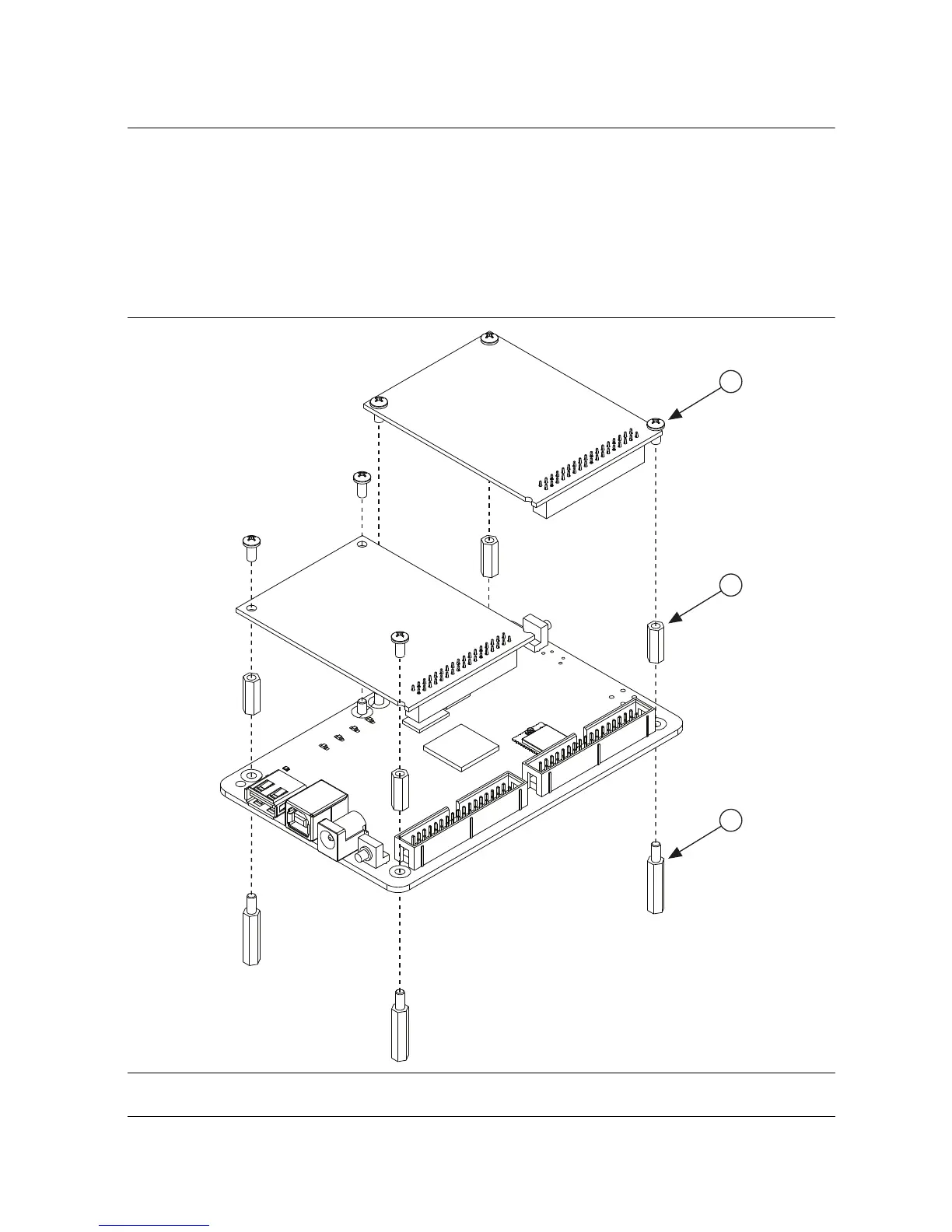

Figure 12 shows how to assemble the NI myRIO-1950 with daughterboards.
Figure 12. Assembling the NI myRIO-1950 and MXP Connectors
1 4-40 x 1/4” Screw
2 4-40 x 1/2” F/F Standoff
3 4-40 M/F Standoff, Minimum Height 1/4”
1
2
3
