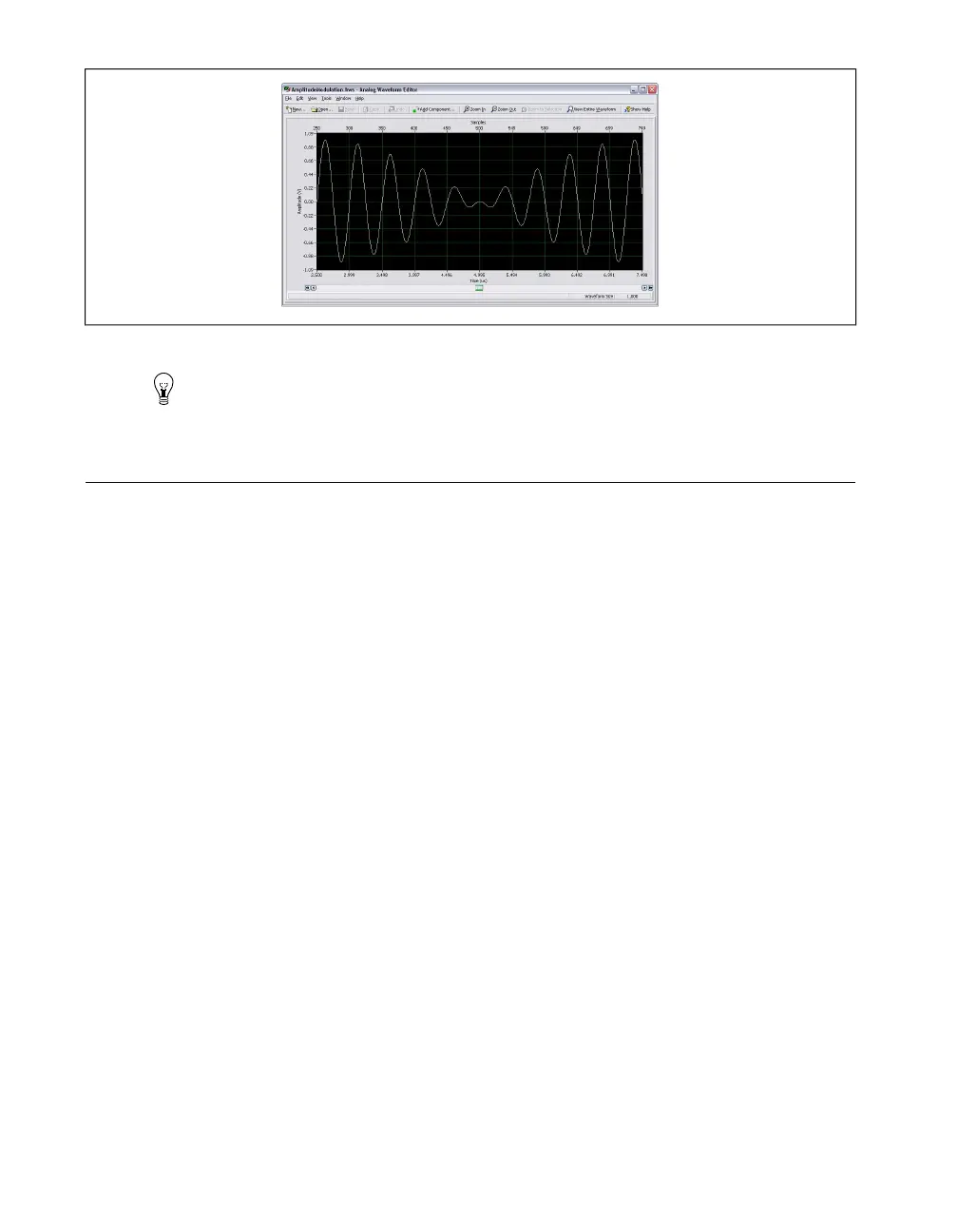

Figure 5. The NI Analog Waveform Editor
Tip The NI Analog Waveform Editor can be activated with the serial number provided in the
kits with an eligible hardware purchase. You can also purchase the NI Analog Waveform Editor
at ni.com.
Appendix A: Front Panels
This section contains front panel connector gures and connector description tables that describe the
signal connection options for NI signal generators.
The NI Signal Generators Help includes signal descriptions, connector pin assignments, and routing
information.
NI PXI/PCI-5402/5406
The NI 5402 is a 20 MHz bandwidth,14-bit arbitrary function generator. The NI 5406 is a 40 MHz
bandwidth, 16-bit arbitrary function generator. These devices have four BNC connectors, as shown in
the following gure. Signal descriptions are listed in the following table.
NI Signal Generators Getting Started Guide 14 ni.com
