FunctionAccessConnector
Accepts a trigger from an external
source that can start or step through
waveform generation or can route
signals from several clock, event,
and trigger sources.
Input/OutputPFI 1
NI PXIe-5450/5451
The NI 5450 is a two-slot PXI Express, 400 MS/s, 120 MHz, dual-channel,16-bit arbitrary waveform
generator with onboard signal processing (OSP). The NI 5451 is a two-slot PXI Express, 400 MS/s, 135
MHz, dual-channel,16-bit arbitrary waveform generator with onboard signal processing (OSP) and 160
MHz of digital upconverter bandwidth. These devices have six SMA connectors and two SMB connectors,
as shown in the following gure. Signal descriptions are listed in the following table.

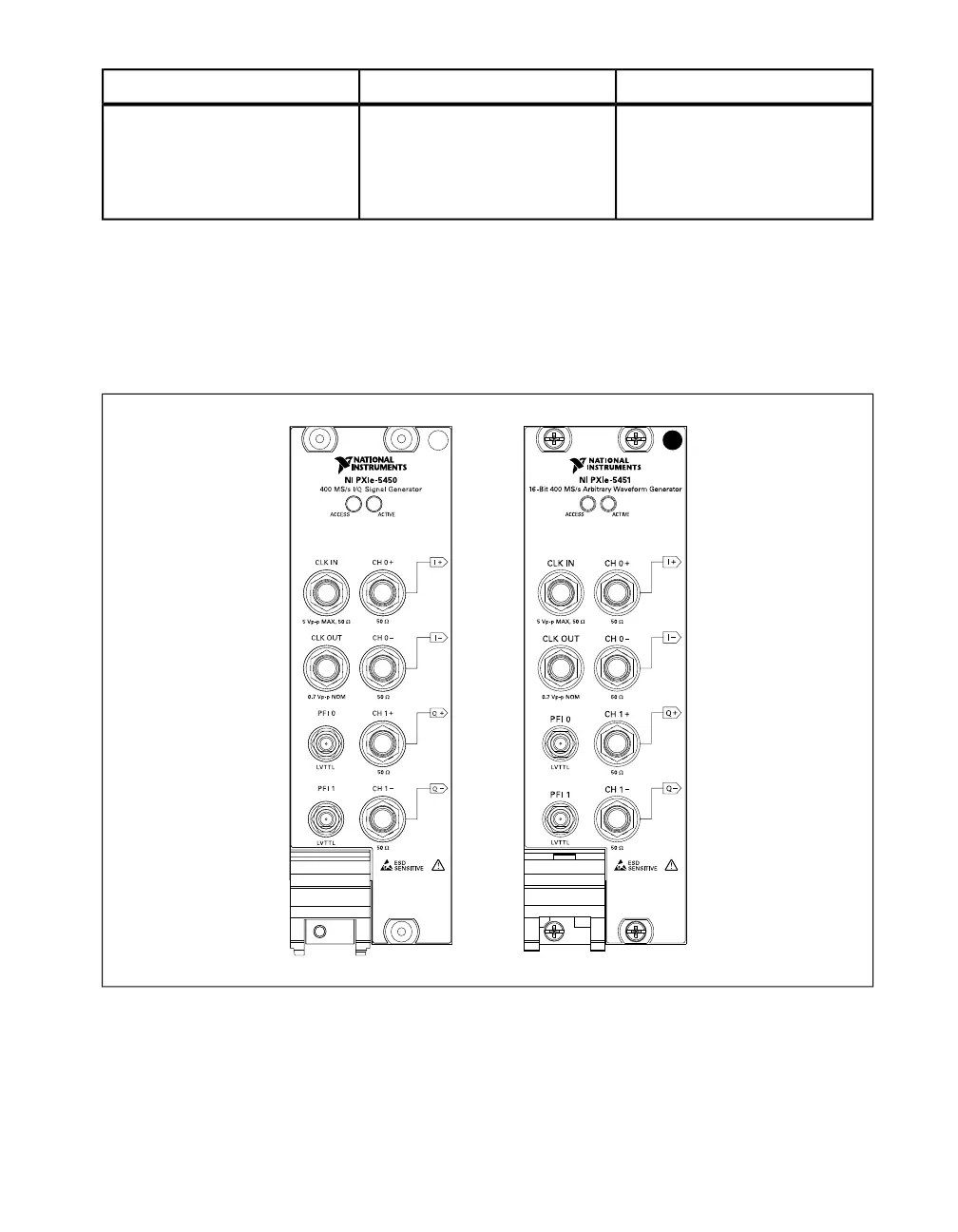

Figure 10. NI PXIe-5450/5451 Front Panels
©
National Instruments Corporation 21 NI Signal Generators Getting Started Guide
