Chapter 2 DAQ System Overview
M Series User Manual 2-2 ni.com

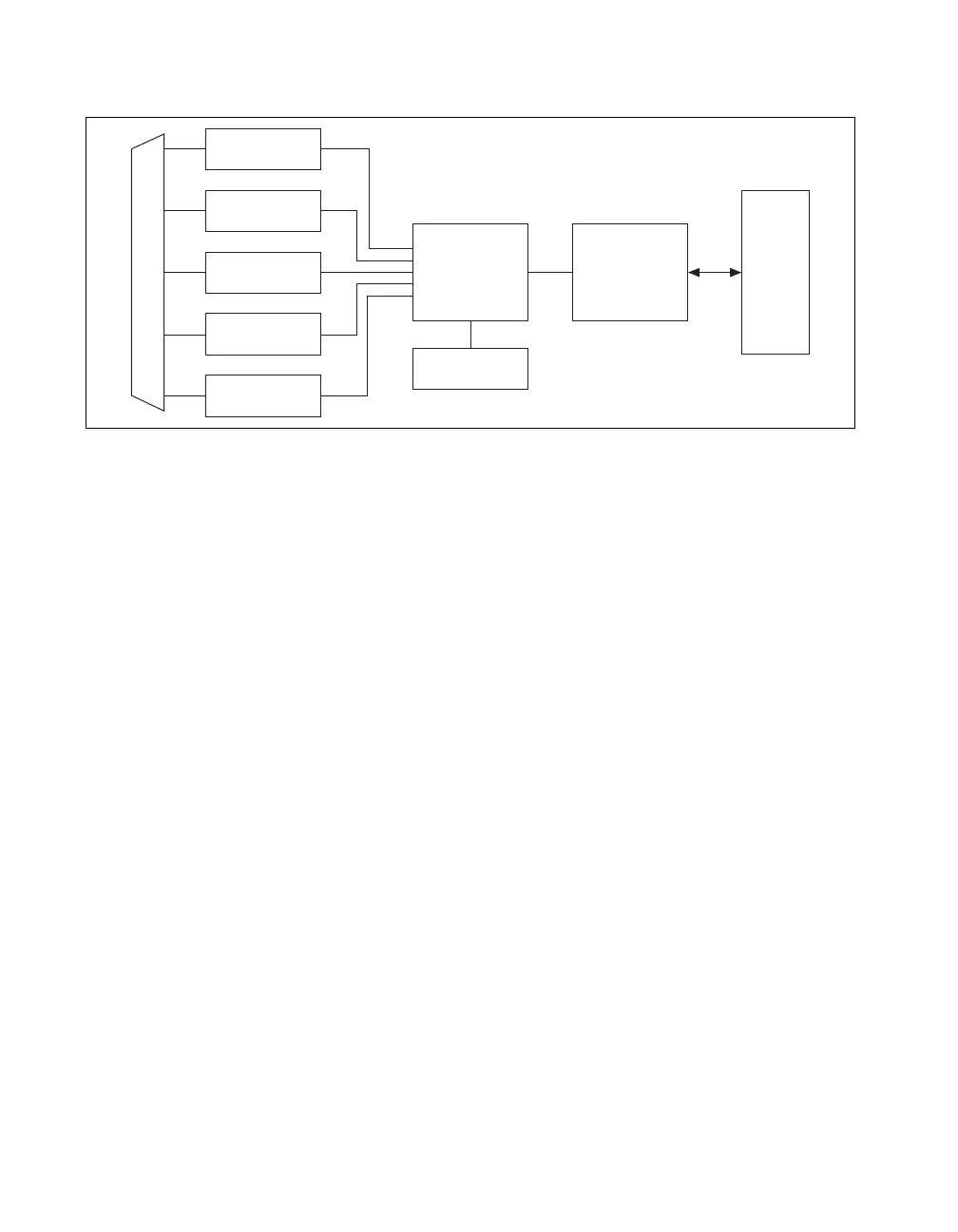

Figure 2-2. General M Series Block Diagram
DAQ-STC2 and DAQ-6202
The DAQ-STC2 and DAQ-6202 implement a high-performance digital
engine for M Series data acquisition hardware. Some key features of this
engine include the following:
Flexible AI and AO sample and convert timing
Many triggering modes
Independent AI, AO, DI, and DO FIFOs
Generation and routing of RTSI signals for multi-device
synchronization
Generation and routing of internal and external timing signals
Two flexible 32-bit counter/timer modules with hardware gating
Digital waveform acquisition and generation
Static DIO signals
True 5 V high current drive DO
DI change detection
PLL for clock synchronization
Seamless interface to signal conditioning accessories
PCI/PXI interface
Independent scatter-gather DMA controllers for all acquisition and
generation functions
Analog Output
Digital I/O
Analog Input
Counters
PFI
Digital
Routing
and Clock
Generation
Bus
Interface
Bus
I/O Connector
RTSI
