National Instruments NI 6225 User Manual

Appendix B Timing Diagrams
M Series User Manual B-18 ni.com
Pause Trigger
The Pause Trigger signal can be used to pause the acquisition any time the
signal deasserts. It is generated from internal or external sources. A
multiplexer selects a signal from the _i bus; its output is called Selected
Pause Trigger.

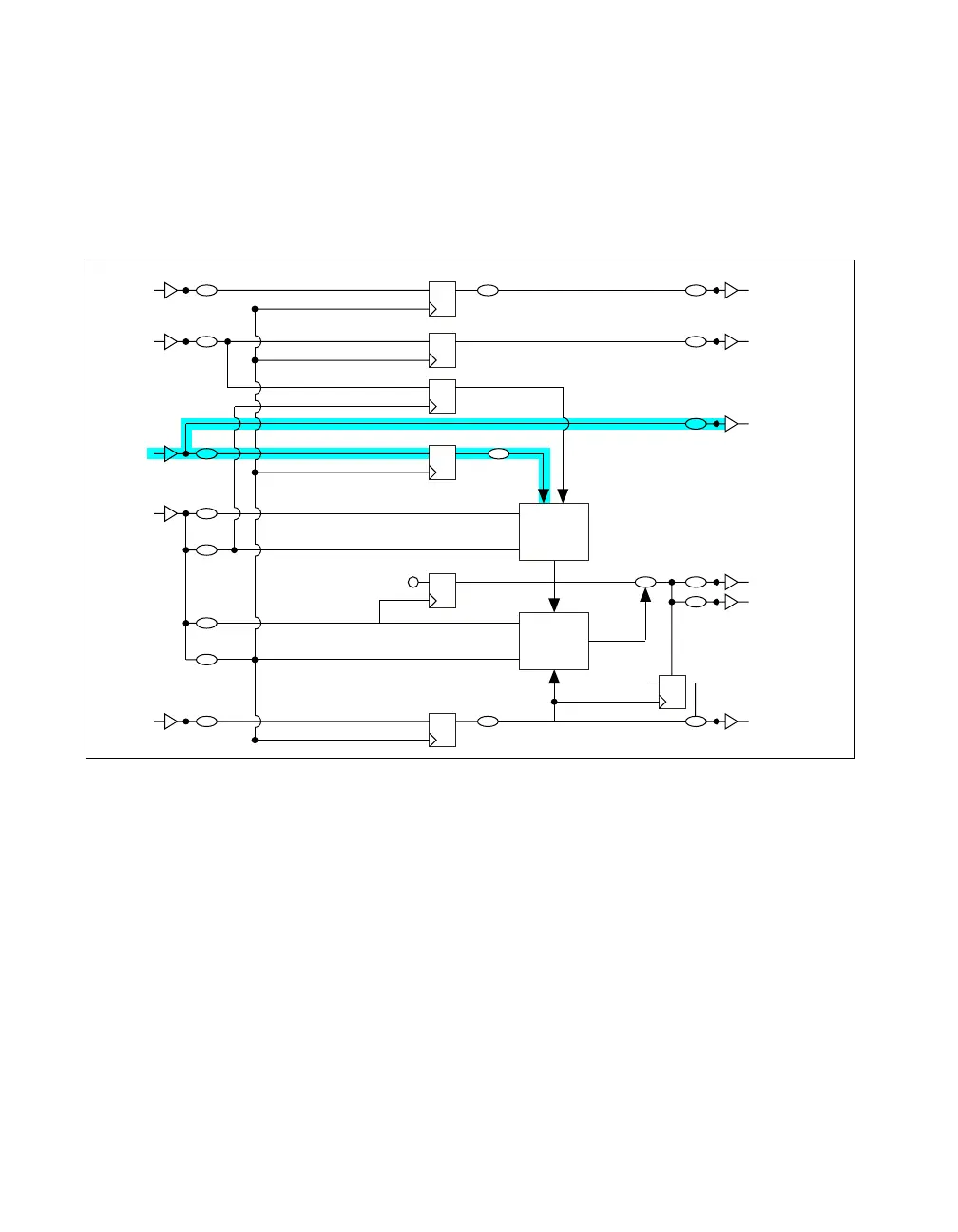

Figure B-18. Pause Trigger and the Analog Input Timing Engine
Start
Terminal
Selected Reference Trigger
Reference Trigger
Te r m in al
Terminal
Selected Sample Clock
Te r m in al
Terminal
Te r m in al
Selected Start
RTSI
Te r m in al
Terminal
Terminal
Selected Pause Trigger
SI
Counter
Block
SI2
Counter
Block
SI_TC
Sample Clock Timebase
Sync Sample Clock Timebase
Convert Clock Timebase
Sync Convert Clock Timebase
SI Start
Pause Trigger
SI2_TC
p_AI_Convert
Start
1
