National Instruments PXIe-5842 User Manual

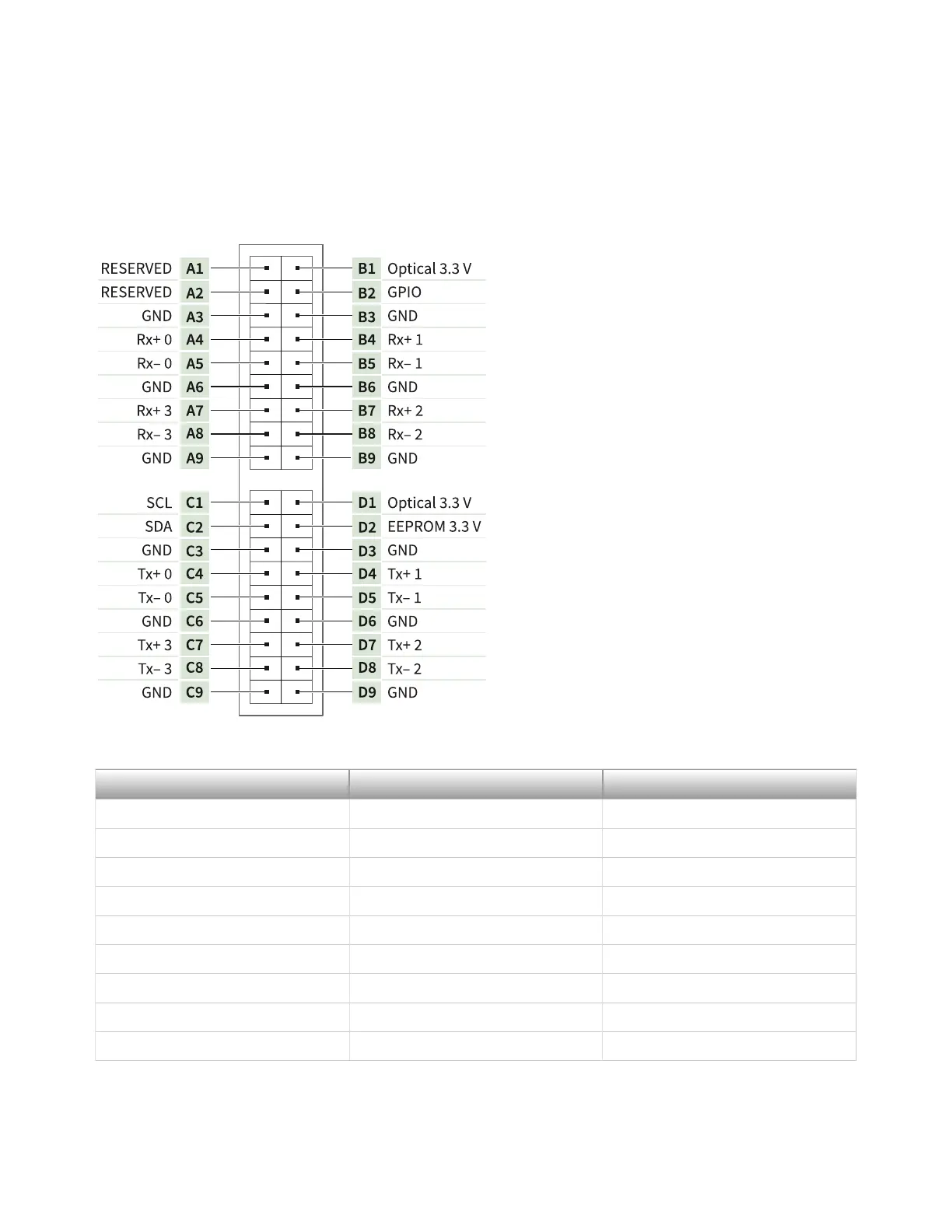

PXIe-5842 MGT Connector Pinout
Single MGT connector shown; the PXIe-5842 front panel has four MGT connectors that have
identical pinouts.
Table 9. PXIe-5842 MGT Signal Descriptions
Pin Signal Description
A1 Reserved N/A
A2 Reserved N/A
A3 GND Ground reference for signals
A4 Rx+ 0 Receive channel 0, positive
A5 Rx- 0 Receive channel 0, negative
A6 GND Ground reference for signals
A7 Rx+ 3 Receive channel 3, positive
A8 Rx- 3 Receive channel 3, negative
A9 GND Ground reference for signals
ni.com
36
PXIe-5842 Getting Started
