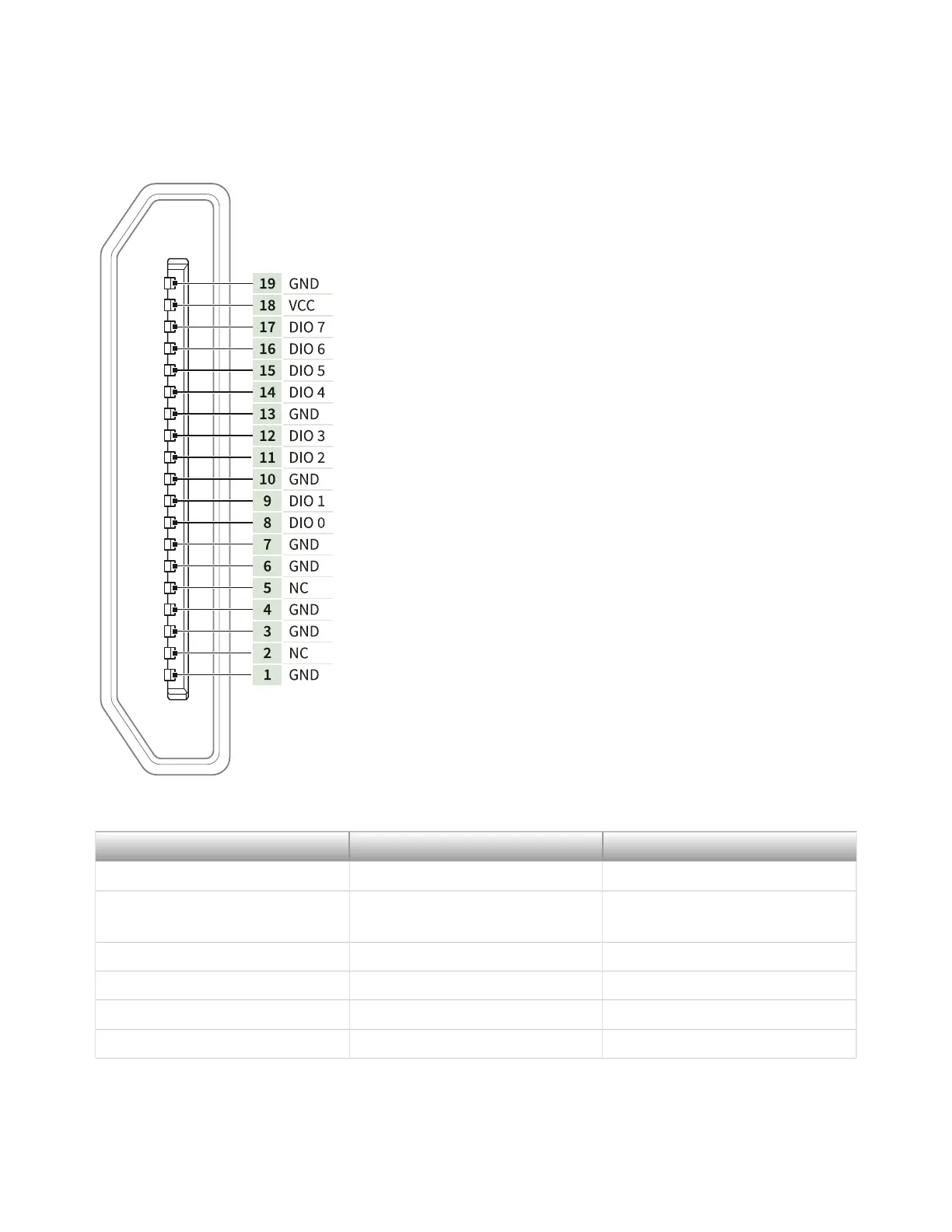

PXIe-5842 DIO Connector Pinout
Table 10. PXIe-5842 DIO Signal Descriptions
Pin Signal Description
19 GND Ground reference for signals
18 VCC +3.3 V power (200 mA
maximum)
17 DIO 7 Bidirectional digital I/O line
16 DIO 6 Bidirectional digital I/O line
15 DIO 5 Bidirectional digital I/O line
14 DIO 4 Bidirectional digital I/O line
