8 | ni.com | RMX Programmable Power Supplies Safety Information & Installation Guide

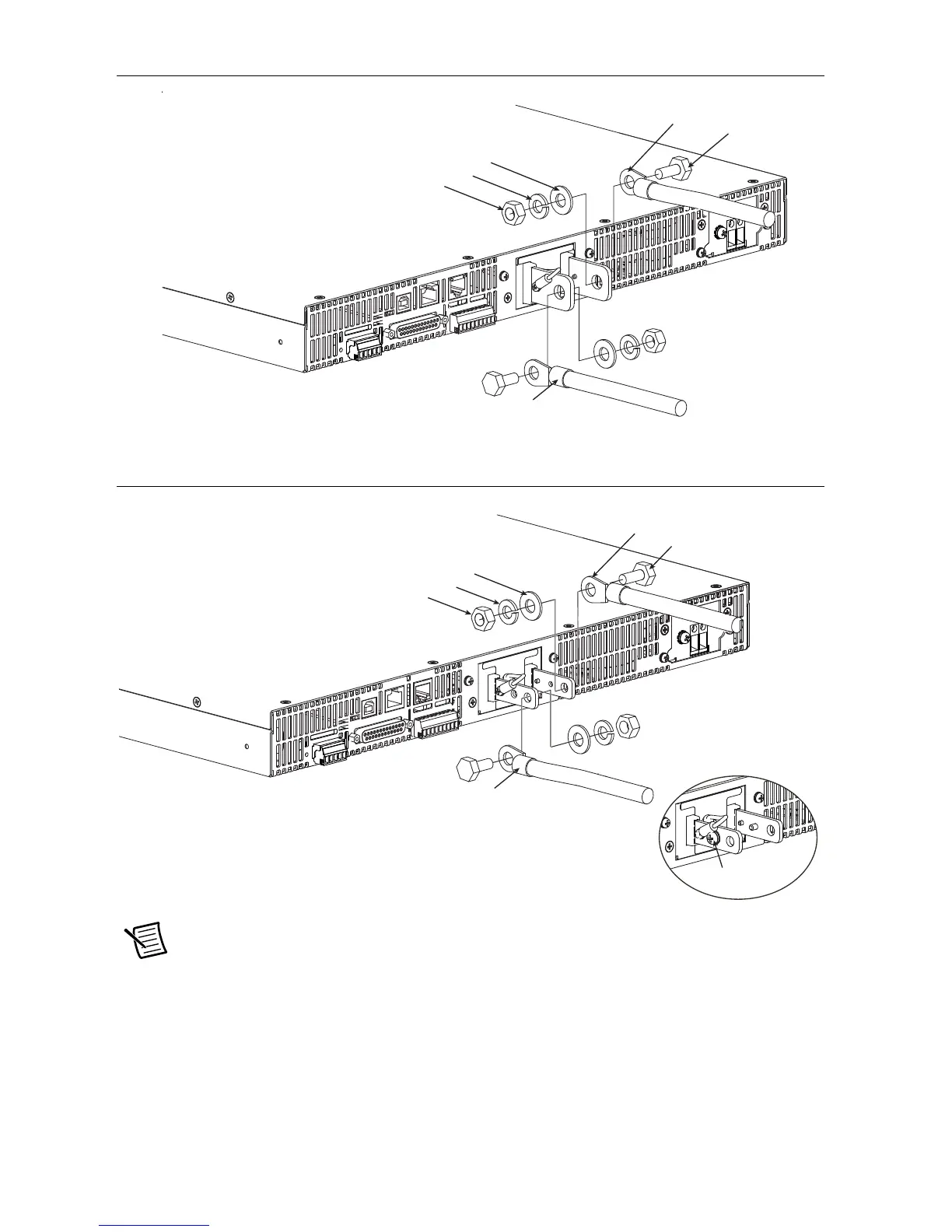

Figure 7. Connection Using M8 Bolt Set for RMX-4120/4121/4124/4125
Figure 8. Connection Using M5 Bolt Set for RMX-4122/4123/4126/4127
Note If you do not connect load cables in the correct orientation, you will not be
able to attach the OUTPUT terminal cover.
Spring washer
Washer
Nut
Bolt (M8)
Crimping terminal
Attach the cable to the inner side
of the crimping terminal.
Attach the cable to the outer side
of the crimping terminal.
Spring washer
Washer
Nut
Bolt (M5)
Screw (M4)
Crimping terminal
