Installing Software on the Host Computer
Before using the sbRIO-9637, you must install the following application software and device
drivers on the host computer.
1. LabVIEW 2015 or later
2. LabVIEW Real-Time Module 2015 or later
3. LabVIEW FPGA Module 2015 or later
4. NI CompactRIO Device Drivers August 2015 or later
For minimum software support information, visit ni.com/info and enter the Info Code
softwareversion.
Connecting the sbRIO-9637
The sbRIO-9637 has the following components.

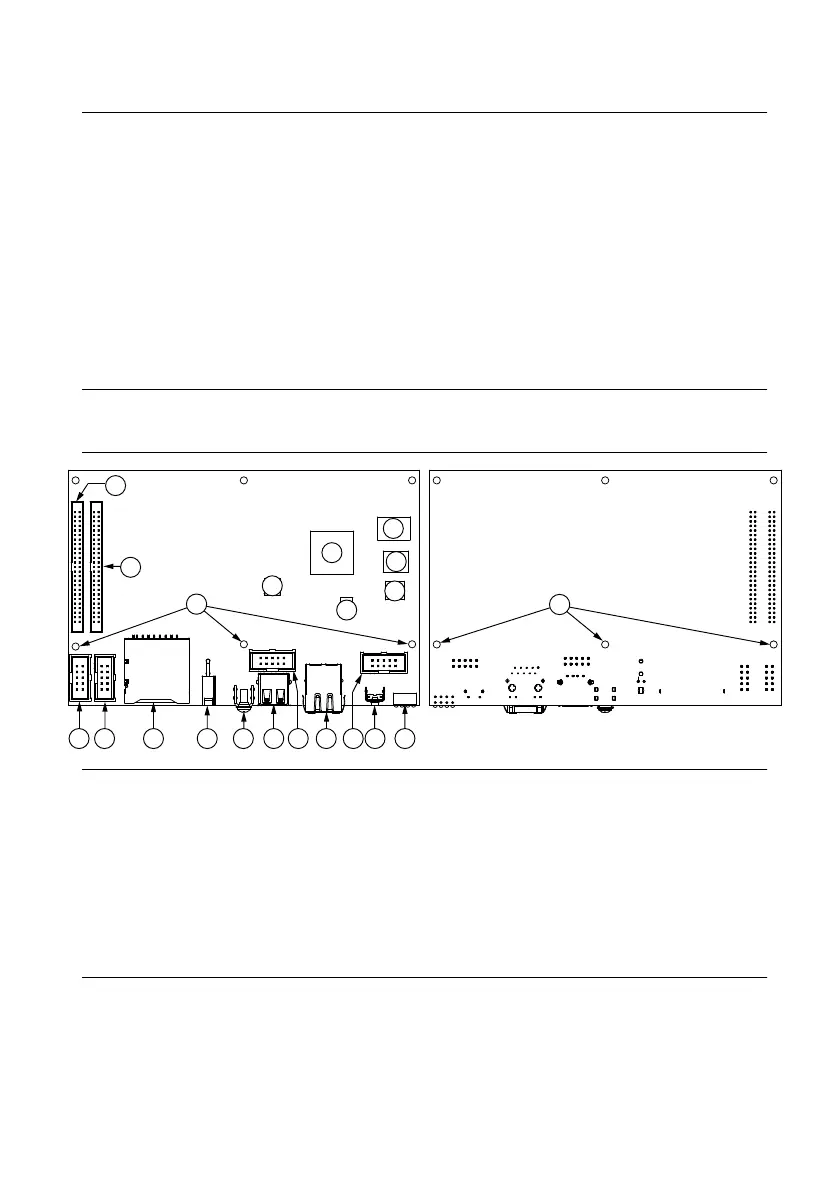

Figure 2. sbRIO-9637 Components
1
17
16
20
19
18
15
13
12
2
3
4 5
6
7
8
9
10
11
14
14
1. W3, RS-485 (COM3)
2. W4, RS-232 (COM2)
3. J6, SDHC
4. J9, Power Connector
5. Chassis Ground Bracket
6. J10, USB Host Port
7. W1, CAN (CAN0)
8. J7, RJ-45 Ethernet Port
9. W2, RS-232 (COM1)
10. Reset Switch
11. LEDs
12. J4, DIO
13. J5, MIO
14. Mounting Holes Connected to Chassis Ground
15. Ethernet RGMII Transceiver
16. ULPI USB Transceiver
17. FPGA Processor
18. DDR Memory
19. NAND Flash
20. CPLD
4 | ni.com | NI sbRIO-9637 Getting Started Guide
