9.1. Instrument Channel
The Instrument Channel controls consist of two main sections: Channel Strip and Channel Effects.
The Channel Strip controls are used for adjusting the loudness and positioning of the instrument.
The Channel Effects section features a 4-band equalizer used for cutting or boosting the
frequencies of the instrument.
9.1.1. Channel Strip
The Channel Strip controls are used to change the loudness and positioning of the instrument
using reverb send, panning, stereo image inversion, and volume controls.

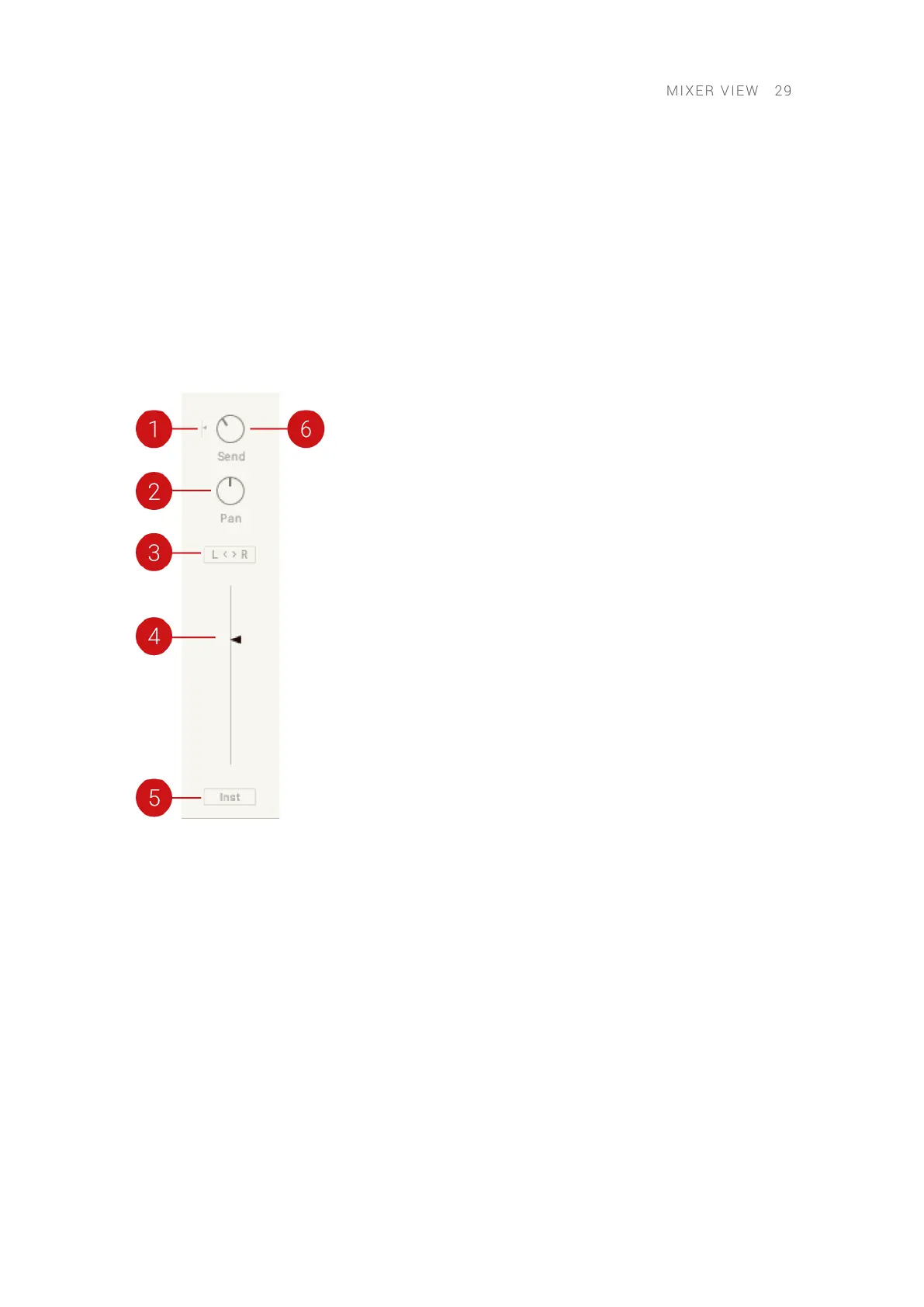

The Channel Strip controls.
YANGQIN’s Channel Strip contains the following controls:
1. Pre-Post: When enabled, the send FX is positioned after the volume fader, for instance
reducing the volume will also reduce the reverb signal.
2. Pan: Controls the position of the instruments in the stereo eld.
3. L < > R: Inverts the left and right channels of the instrument. This can be used to swap the
instrument's stereo image and the listening position from the player's position to that of the
audience.
4. Level Fader: Controls the output level of the Instrument Channel.
5. Inst: Opens the Channel Effects controls.
6. Send: Controls the auxiliary send level to the reverb effect.
9.1.2. Channel Effects
The Channel Effect features a four-band EQ, which allows you to control the Low, Low Mid, High
Mid, and High frequencies of the instrument.
MIXER V IEW 29
