ALGO® 5 Newborn Hearing Screener Service Manual
P/N 000995 Rev.A
7
• Hand-tighten the plastic nut at the base of the main switch if it is loose (FIGURE 7).
Insert nuts with integrated lock washers onto each of the two threaded studs with the
lock washer towards the column, and then tighten the nuts using the 7/16” wrench.
Tighten until snug, and then tighten at least an additional half turn so that lock washer
bites into base metal. Insert the four socket head cap screws with washers and
tighten using the T-handle 3/16” allen wrench (FIGURE 8 and FIGURE 9). Tighten
until snug, then tighten at least another half turn.

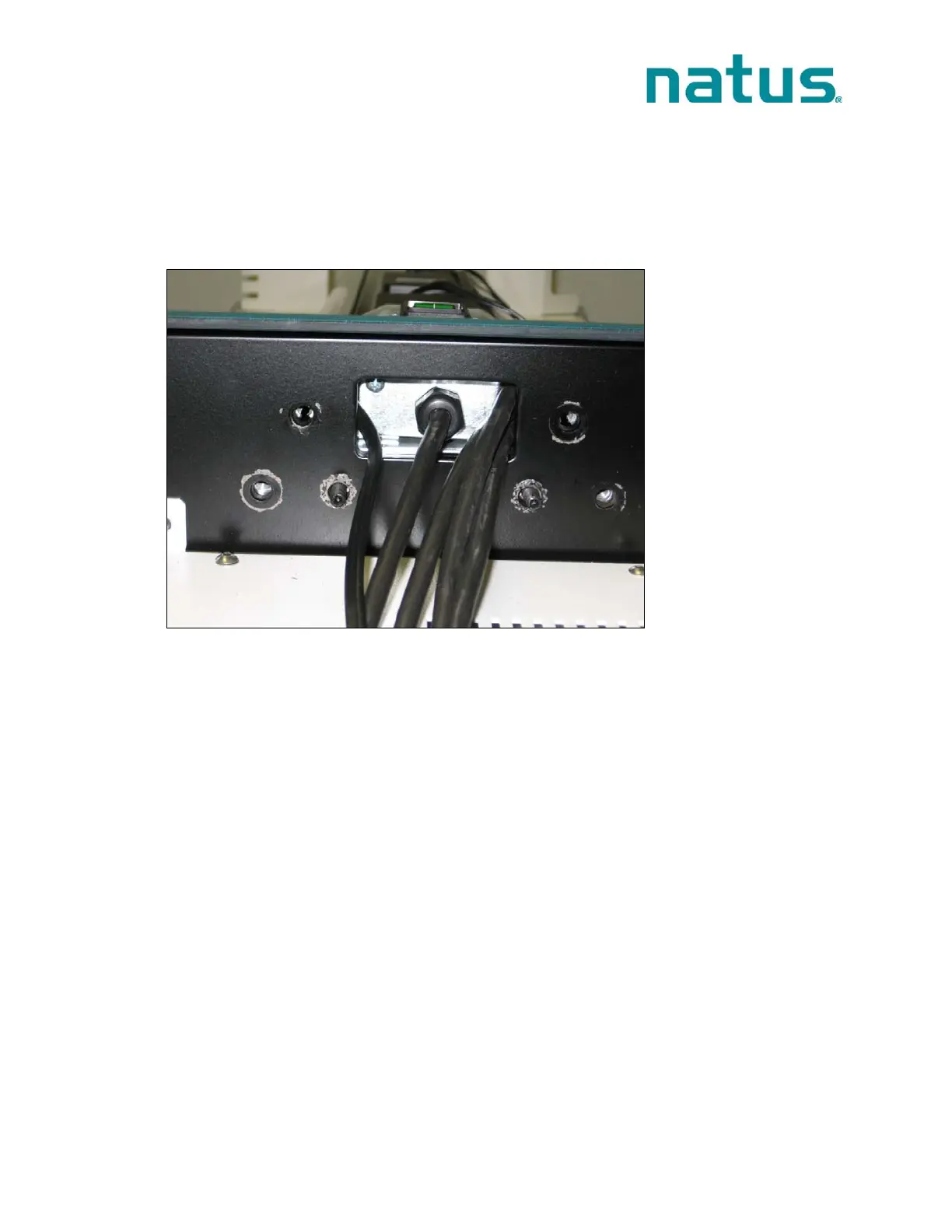

FIGURE 8: View from bottom 1
