Nautilus 2ST ABDOMINAL User Manual

D

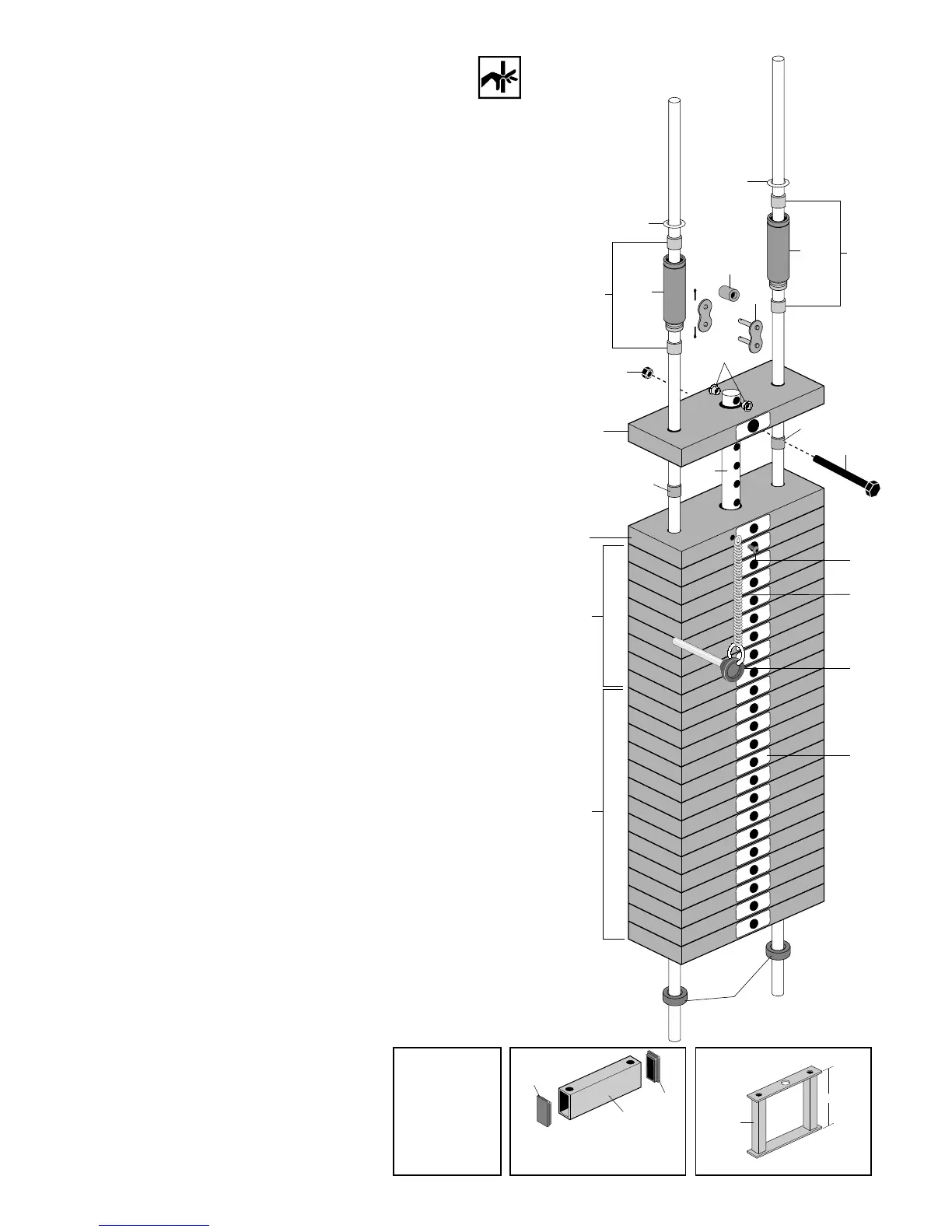

24 WEIGHT STACK
STANDARD
REF #....PART # .....200 lb. WEIGHT STACK (20-250)
A............01-0010.....BOLT HH2 7/16-14 X 4 1/2 BLACK
B............02-9190.....1/4-20 X 3/4 TORX HD TYPE "F" SCREW BLACK
C............03-1045.....NUT NTE 7/16 BLACK
D............04-5070.....RUBBER WEIGHT STACK WASHER
E............05-4020.....BOTTOM WEIGHT BUSHING
F............05-4055.....TOP WEIGHT BUSHING
G............06-2005.....CHAIN LINK #100 CONNECTING LINK
H............06-7064.....COIL SUPER 6"
I .............06-8150.....1 1/4 EXTERNAL SNAP RING
J.............06-8254.....SNAP RING 1"
K............07-4000.....NYLINER PLASTIC BUSHING
L ............07-8296.....PIN WEIGHT SELECTOR W/MAGNET 4" LENGTH
M ...........07-9268.....TOP WEIGHT SLEEVE
N............09-3066.....HOLE PLUG 1 1/4 DIA WHITE
O............09-6135.....BELT ROLLER
P............12-1024.....DECAL WARNING 3"
Q............12-1282.....WEIGHT STACK DECAL 20-310 lbs/kgs
R............17-2204.....1 X 4 X 9.330 TOP WEIGHT STEEL, 10 lbs.
S............17-2206.....1 X 4 X 9.330 SECOND WEIGHT STEEL, 10 lbs.
T............17-2203.....1 X 4 X 9.330 BOTTOM WEIGHT STEEL, 10 lbs
U............17-2203.....1 X 4 X 9.330 BOTTOM WEIGHT STEEL, 10 lbs
V............17-4115.....WEIGHT STACK PIN 24 HOLE
W...........BSF509.....WEIGHT STACK STAND 8"
X............07-9269.....3" WEIGHT STACK SPACER
Y............09-2060.....1 1/2 X 3" HOLE PLUG
WOMEN'S/MEDICAL
REF #....PART #......130 lb. WEIGHT STACK (10-200)
A............01-0010.....BOLT HH2 7/16-14 X 4 1/2 BLACK
B............02-9190.....1/4-20 X 3/4 TORX HD TYPE "F" SCREW BLACK
C............03-1045.....NUT NTE 7/16 BLACK
D............04-5070.....RUBBER WEIGHT STACK WASHER
E............05-4020.....BOTTOM WEIGHT BUSHING
F............05-4055.....TOP WEIGHT BUSHING
G............06-2005.....CHAIN LINK #100 CONNECTING LINK
H............06-7064.....COIL SUPER 6"
I .............06-8150.....1 1/4 EXTERNAL SNAP RING
J.............06-8254.....SNAP RING 1"
K............07-4000.....NYLINER PLASTIC BUSHING
L ............07-8296.....PIN WEIGHT SELECTOR W/MAGNET 4" LENGTH
M ...........07-9268.....TOP WEIGHT SLEEVE
N............09-3066.....HOLE PLUG 1 1/4 DIA WHITE
O............09-6135.....BELT ROLLER
P............12-1024.....DECAL WARNING 3"
Q............12-1281.....WEIGHT STACK DECAL (WOMEN'S) 10-260 lbs/kgs
R............17-2210.....1 X 4 X 9.330 TOP WEIGHT ALUM., 3.5 lbs.
S............17-2212.....1 X 4 X 9.330 SECOND WEIGHT ALUM., 3.5 lbs.
T............17-2211.....1 X 4 X 9.330 BOTTOM WEIGHT ALUM., 3.5 lbs.
U............17-2203.....1 X 4 X 9.330 BOTTOM WEIGHT STEEL, 10 lbs.
V............17-4115.....WEIGHT STACK PIN 24 HOLE
W...........BSF509.....WEIGHT STACK STAND 8"
X............07-9269.....3" WEIGHT STACK SPACER
Y............09-2060.....1 1/2 X 3" HOLE PLUG
Z............12-1048.....WEIGHT STACK DECAL (MEDICAL) #1-30
SUPER STACK
REF#.....PART #......290 lb. WEIGHT STACK (20-365)
A............01-0010.....BOLT HH2 7/16-14 X 4 1/2 BLACK
B............02-9190.....1/4-20 X 3/4 TORX HD TYPE "F" SCREW BLACK
C............03-1045.....NUT NTE 7/16 BLACK
D............04-5070.....RUBBER WEIGHT STACK WASHER
E............05-4020.....BOTTOM WEIGHT BUSHING
F............05-4055.....TOP WEIGHT BUSHING
G............06-2005.....CHAIN LINK #100 CONNECTING LINK
H............06-7064.....COIL SUPER 6"
I .............06-8150.....1 1/4 EXTERNAL SNAP RING
J.............06-8254.....SNAP RING 1"
K............07-4000.....NYLINER PLASTIC BUSHING
L ............07-8297.....PIN WEIGHT SELECTOR W/MAGNET 7" LENGTH
M ...........07-9268.....TOP WEIGHT SLEEVE
N............09-3066.....HOLE PLUG 1 1/4 DIA WHITE
O............09-6135.....BELT ROLLER
P............12-1028.....DECAL WARNING 6"
Q............12-1283.....WEIGHT STACK DECAL 20-455 lbs/kgs
R............17-2204.....1 X 4 X 9.330 TOP WEIGHT STEEL, 10 lbs.
S............17-2207.....1 X 6 X 9.330 SECOND WEIGHT STEEL, 15 lbs.
T............17-2205.....1 X 6 X 9.330 BOTTOM WEIGHT STEEL, 15 lbs.
U............17-2205.....1 X 6 X 9.330 BOTTOM WEIGHT STEEL, 15 lbs.
V............17-4115.....WEIGHT STACK PIN 24 HOLE
W...........BSF509.....WEIGHT STACK STAND 8"
X............07-9269.....3" WEIGHT STACK SPACER
Y............09-2060.....1 1/2 X 3" HOLE PLUG
USE CAUTION
WHEN WORKING
WITH WEIGHT
STACK !
A
B
C
E
F
G
H
J
K
L
M
O
Q,Z
S
T
U
V
J
M
F
E
R
W
OPTION 2
2AB, 2BP, 2CR, 2IP, 2LCP, 2LE,
2LB, 2OP, 2TP, 2LCS, 210, 2VC
2LR, 2PF
OPTION 1
NO STAND
OPTION 3
X
Y
Y
2HAD, 2HAB, 2RT, 2SC
8
6
01-13-99
