Nautilus 2ST ABDOMINAL - Nautilus 2 ST Abdominal Detailed Parts and Kits; Mini Add-On Weight Kit

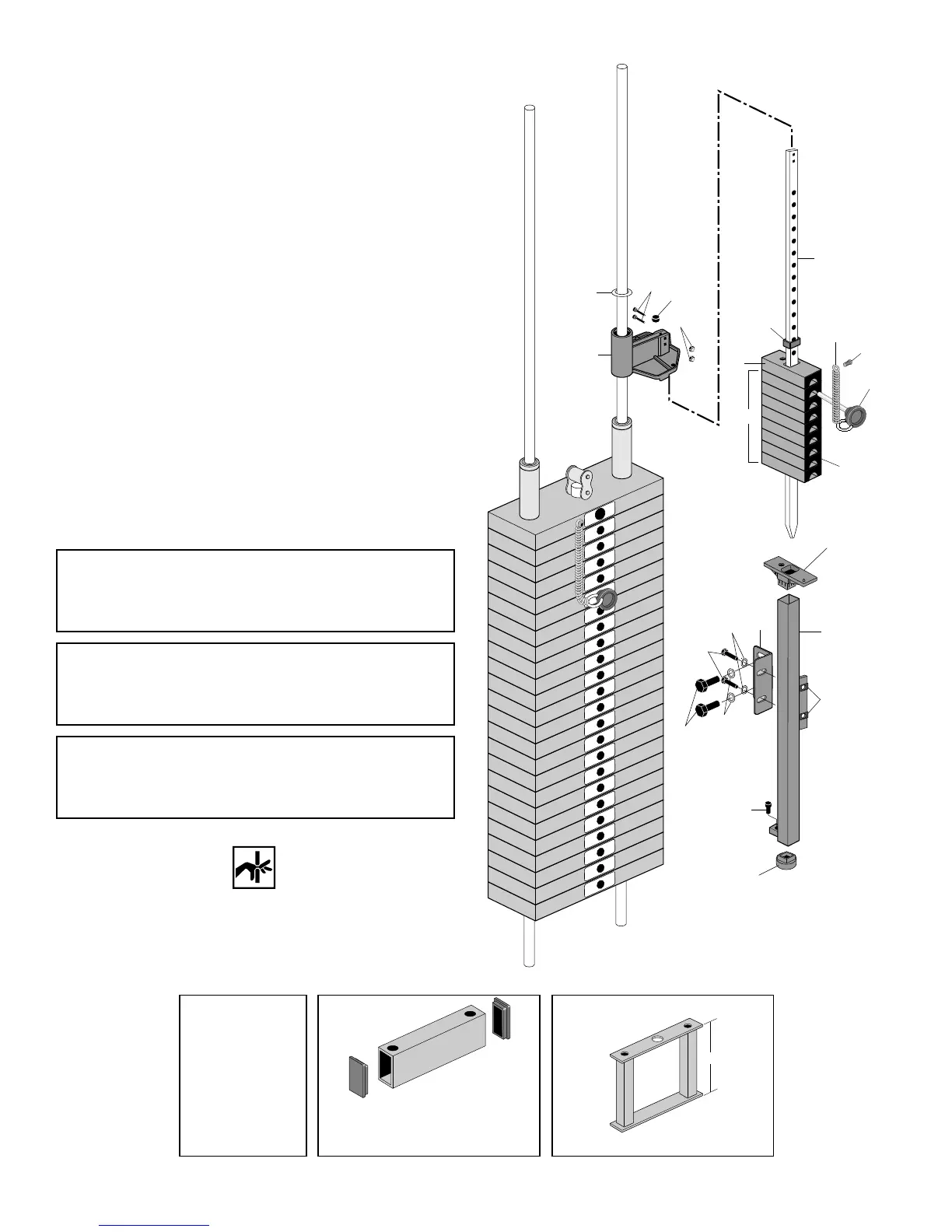

MINI 24 ADD-ON WEIGHT KIT
REF #...PART # ........DESCRIPTION
AA........02-4108 .......3/8-16 X 3/4 ALLEN CAP SCREW
BB........01-1258 .......1/2 X 3/4 HEX BOLT BLACK
CC........01-4035 .......1/4 X 1-1/4 WIZ BOLT BLACK
DD........02-4110........3/8 X 1-1/4 ALLEN CAP SCREW
EE........02-9190 .......1/4-20 X 3/4 TORX HD TYPE "F" SCREW BLACK
FF ........03-5111........3/8 CLIP NUT
GG .......03-4290 .......1/4 WIZ NUT BLACK ZINC
HH........06-8150 .......1 1/4 EXT. SNAP RING
II...........04-5206 .......3/8 SAE FLAT WASHER BLACK
JJ .........04-5214 .......1/2 LOCK WASHERS BLACK
KK........06-7062 ........450 OD 5" SUPER COIL
LL.........07-8045 .......ADD ON WEIGHT SELECTOR PIN & KNOB
MM.......07-9245 .......MOLDED WEIGHT STAND INSERT
NN........07-9250 .......MOLDED ADD-ON-WEIGHT BASE
OO .......07-9255 .......MOLDED ADD-ON-WEIGHT LINK
PP........09-3072 .......HOLE PLUG 3/8" BLACK
QQ .......12-1117........ADD ON WEIGHT DECAL LBS/KGS
RR........17-5998 .......CAST ADD-ON SECOND PLATE
SS........17-5999 .......CAST ONE POUND WEIGHT
TT ........17-6015 .......RECTANGULAR WEIGHT BUSHING
UU........17-6020 .......ANGLE BRACKET
USE CAUTION
WHEN WORKING
WITH WEIGHT
STACK !
AA
BB
CC
DD
EE
GG
HH
KK
MM
OO
QQ
RR
SS
TT
UU
WW
XX
I I
JJ
LL
NN
OPTION 2
OPTION 1
NO STAND
OPTION 3
2AB, 2BP, 2CR, 2IP, 2LCP, 2LE,
2LB, 2OP, 2TP, 2LCS,210, 2VC
2HAD, 2HAB, 2RT, 2SC
2LR, 2PF
FF
8"
7
PP
OPTION 1 - NO WEIGHT STAND:
2LR, 2PF
WW......07-9292 .......SHORT MINI WEIGHT STACK PIN
XX........BSF512........SHORT MINI WEIGHT STAND
OPTION 2 - 3" WEIGHT STAND:
2AB, 2BP, 2CR, 2IP, 2LCP, 2LE, 2LB, 2OP, 2TP, 2LC, 210, 2VC
WW......17-4137 .......STANDARD MINI WEIGHT STACK PIN
XX........BSF511........STANDARD MINI WEIGHT STAND
OPTION 3 - 8" WEIGHT STAND:
2HAAD, 2HAB, 2RT, 2SC
WW......17-4137 .......STANDARD MINI WEIGHT STACK PIN
XX........BSF513........TALL MINI WEIGHT STAND
01-13-99
