Nautilus Be strong NS 700X User Manual

12
# Component Qty
28 Seat Pad 1
29 Back Pad 1
30 T handle Pop Pin 2
31 Seat Adjuster 1
32 Seat Cross Tube 1
33 Back Pad Tube 1
34 Back Pad Adjustment 1
35 Back Pad Adjustment Plate 1
74 Hex Bolt - 1/2” x 3 1/4”L 1
79 Hex Bolt - 3/8” x 3”L 2
81 Hex Bolt - 3/8” x 2 1/4”L 2
83 Hex Bolt - 3/8” x 1 3/4”L 3
94 1/2” Flat Washer 3
95 3/8” Flat Washer 9
96 1/2” Lock Nut 2
97 3/8” Lock Nut 2

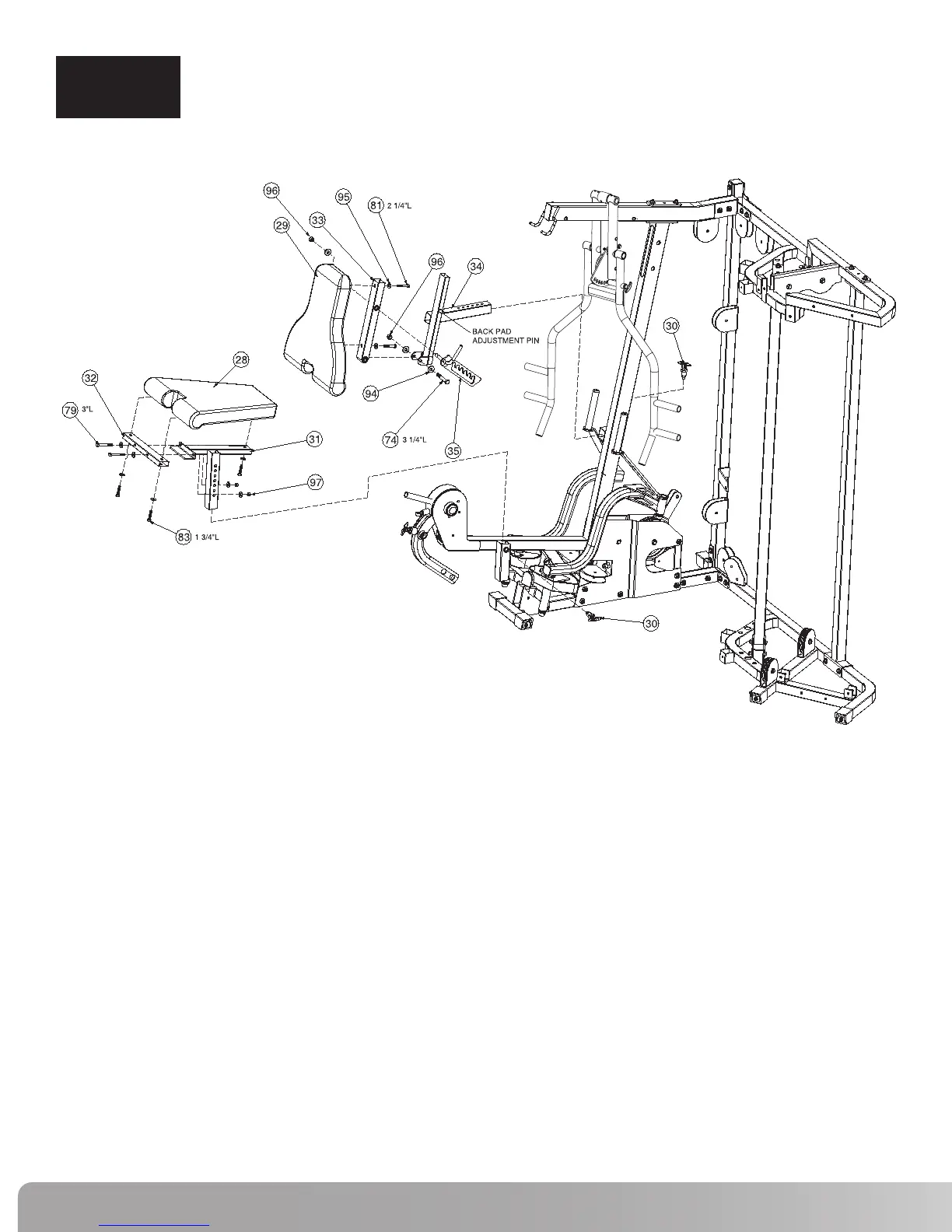

Step 5 Components: Procedure:
A. Attach Seat Cross Tube (32) to Seat Adjuster (31) using hardware shown. Tighten hardware
securely.
B. Attach Seat Pad (28) to Seat Cross Tube (32) and Seat Adjuster (31) using hardware shown.
Tighten hardware securely.
C. Install Seat Adjuster (31) in Leg Extension Frame (8) in the slot shown. Install Pop Pin (30)
using an adjustable wrench.
NOTE: Pop Pin is threaded so that the seat can be locked into position.
D. Attach Back Pad Tube (33) to Back Pad (29) using hardware shown. Tighten hardware
securely.
E. Attach Back Pad Tube (33) to Back Pad Adjuster (34) using hardware shown. Tighten
hardware securely making sure that the Back Pad Tube can rotate freely.
F. Attach Back Pad Adjustment Plate (35) to Back Pad Tube (33) using hardware shown, making
sure that the Back Pad Adjustment Pin rests inside the slot of the Back Pad Adjustment Plate
(35). Tighten hardware securely make sure the Back Pad Adjustment Plate can rotate freely.
G. Install Back Pad Adjuster (34) in Front Upright (7) in the slot shown. Install Pop Pin (30) using
an adjustable wrench.
ASSEMBLY
STEP 5
