9
Nautilus NS700X
# Component Qty
5 Rear Upright 1
6 Top Beam 1
7 Front Upright 1
8 Leg Extension Frame 1
9 Main Base 1
10 Backing Plate 1
13 Connecting Plate B 1
16 Connecting Plate E 1
76 Hex Bolt - 3/8” x 4 1/4”L 5
79 Hex Bolt - 3/8” x 3”L 13
95 3/8” Flat Washer 36
97 3/8” Lock Nut 18

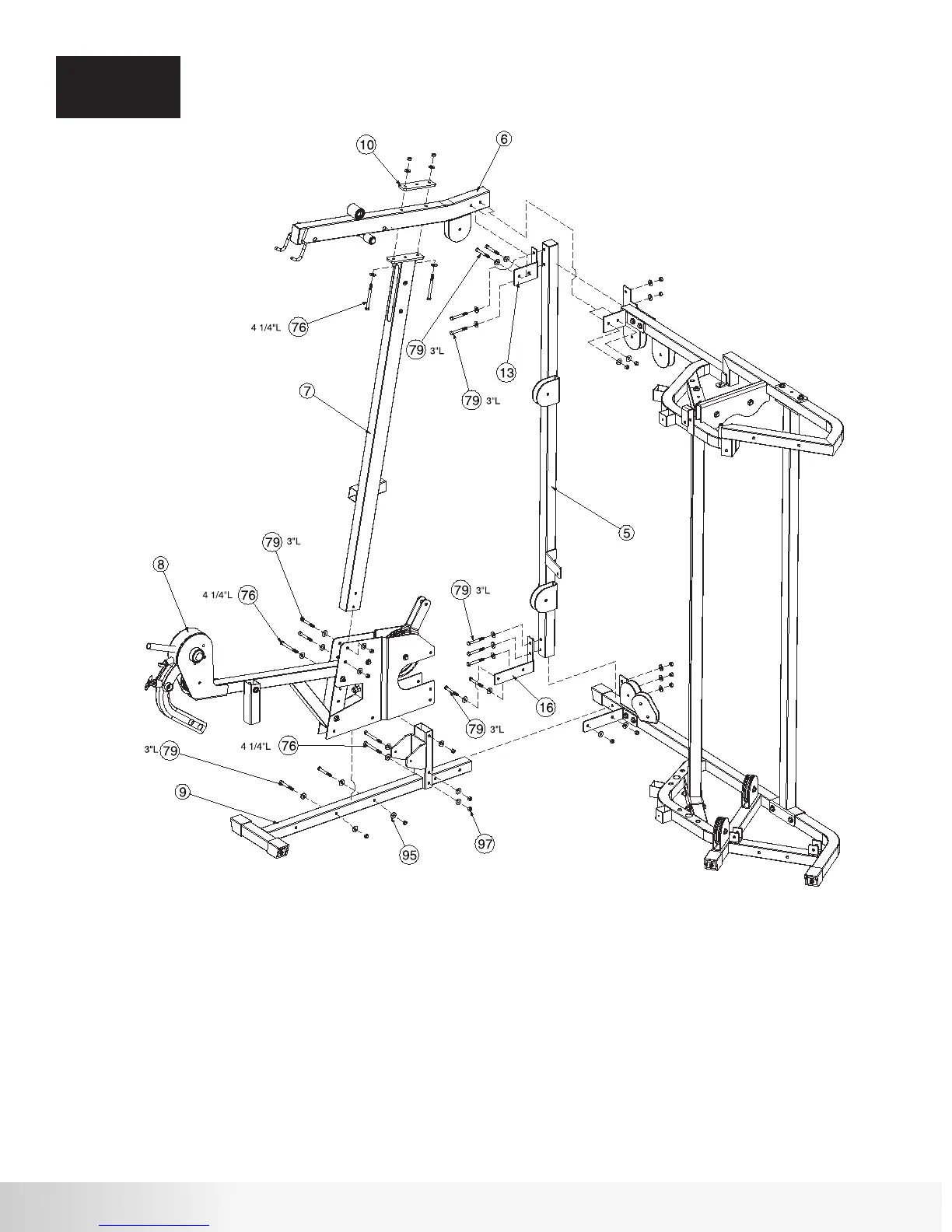

Step 2 Components: Procedure:
A. Attach Main Base (9) to Rear Base Frame (1) using Connecting Plate E (16) and the
hardware shown. Do not tighten hardware.
B. Attach Rear Upright (5) to Rear Base Frame (1) and Rear Top Frame (2) using
Connecting Plate B (13) and the hardware shown. Do not tighten hardware.
C.
Attach Leg Extension Frame (8) to Main Base (9) usingthe hardware shown. Tighten
hardware securely.
CAUTION:
Leg Extension Frame (8) is heavy. Use two people to assemble this
component.
D. Attach Front Upright (7) to Leg Extension Frame (8) using the hardware shown.
Tighten hardware securely.
E. Attach Top Beam (6) to Front Upright (7) and Rear Top Frame (2) using Backing
Plate (10) and the hardware shown. Tighten all frame hardware securely..
ASSEMBLY
STEP 2
